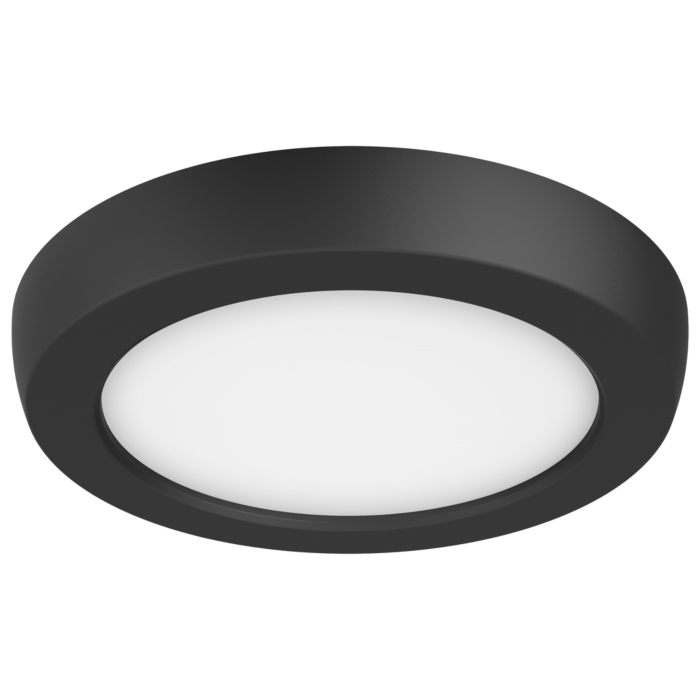

Blink - 9W; 5in; LED Fixture; CCT Selectable; Round Shape; Black Finish; 120V
- UGR - 28.89
- SDCM - 464
- Hi pot - DC-1550V
- Edge-lit - Yes
- Surface mount
- Compatible with 3"&4" J-box and pancake J-box with additional accessory
Brand | Satco |
---|---|
UPC | 045923624957 |
Store Location (Lititz, PA) | Aisle 10, Section C4 |
Package Length (in) | 5.20" |
Package Width (in) | 1.81" |
Package Height (in) | 1.81" |
Manufacturer Part Number | 62-1701 |
Country of Origin | Thailand |
Width | 5 In. |
Height | 0.67 In. |
Weight | 0.59 Lbs. |
Warranty | 5 Year Limited - Fixtures |
ANSI Base | Integrated |
Beam Spread | 100 |
Bulb Included | Integrated |
CCT Selectable | Yes |
Closet Rated | Yes |
Color Temp | Warm to Cool White |
CRI | 90 |
Diameter | 5 in. |
Dimmable | Yes-Dimmable |
Dimmable Function | 120V only |
ENERGY STAR | Yes |
ES Unique ID | ESID-2402965 |
ES Category | Downlight Surface Mount |
FCC Compliant | Yes |
Finish | Black |
Finish Family | Black |
Fixture shape | Round |
Product Type | Flush Mount |
Flicker Free | No |
Avg Rated Hours | 50000 |
Indoor Outdoor | Indoor |
Lamp Base | Integrated |
Lamp Shape | Integrated LED |
Lens Material | Poly methyl methacrylate (PMMA) |
Lumens | 650L-680L |
Material | Die Cast Aluminum |
NEC Compliance | Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5) |
Operating Frequency | 60 Hz |
Operating Temp | -20C (-4F) to +40C (+104F) |
Replaceable Light Source | No |
RoHS Compliant | Yes |
Safety Listing | cETLus |
Location Rating | Wet |
Style | Utility |
Surge Protection | Built-in surge protection - 2.5KV |
Technology | LED |
Temperature (CCT) | 2700K/3000K/3500K/4000K/5000K |
Volts | 120V |
Watts | 9W |
