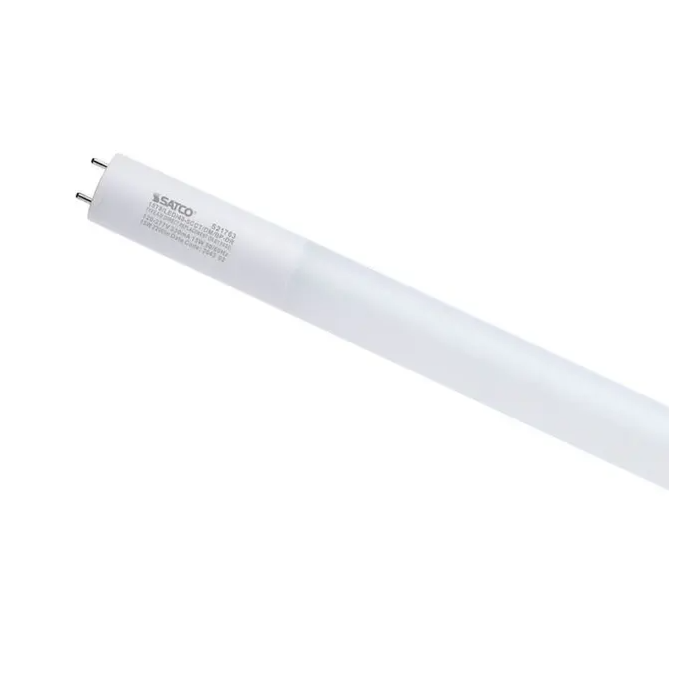

This 15 Watt LED T8 tube provides versatile illumination with its CCT Selectable feature, allowing you to choose from 3000K, 3500K, 4000K, 5000K, or 6500K to match any environment. Designed for flexibility, this 48-inch lamp is compatible with both Type A (ballast-compatible) and Type B (ballast bypass/direct wire) installations. It features a G13 base and operates on a wide voltage range of 120-277V. The glass construction with a protective PET coating ensures durability and safety, while the frost finish provides smooth, diffused light. Ideal for a wide range of commercial and residential applications.
- Dual mode type A + B
- 5 CCT selectable
- Range voltage 120V-277V
- Up to 150 LPW
- 170-degree beam angle
- DLC listed
- Dimmable
- Damp location rated
- Ballast required (Type A) or ballast bypass (Type B)
- Not for use in vapor tight fixtures.
| Brand | Satco |
|---|---|
| Date Added | Dec 14, 2025 |
| UPC | 045923217630 |
| Store Location (Lititz, PA) | Aisle 10, Section A3 |
| Package Length (in) | 48.00" |
| Package Width (in) | 1.00" |
| Package Height (in) | 1.00" |
| Manufacturer Part Number | S21763 |
| Lamp Ballast Type AB | Type A/B |
| Material | Glass |
| Total Harmonic Distortion | 20% |
| CCT Selectable | Yes |
| Wattage Selectable | False |
| Finish Family | White |
| Amps | 0.125-0.054A |
| CCT | 3000K/3500K/4000K/5000K/6500K |
| Dimmable | Yes |
| Hours Rated | 50000 |
| Beam Angle | 170 degrees |
| Color Temp | Soft White to Daylight |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -4F to 113F |
| Lumens | 2200L |
| Volts | 120V-277V |
| Watts | 15W |
| Nominal Length | 48" |
| Operating Position | Universal |
| Power Factor | 0.9 |
| Shatter Proof Type | PET Coated |
| Product Technology | LED |
| Fluor Equiv | 25W/28W/30W/32W |
| Lamp Base | Medium Bi Pin |
| Finish | Frost |
| Housing Color | White |
| ANSI Base | G13 |
| Lamp Type | T8 |
| MOD Lamps | 1.0 |
| MOL | 48.67 |
