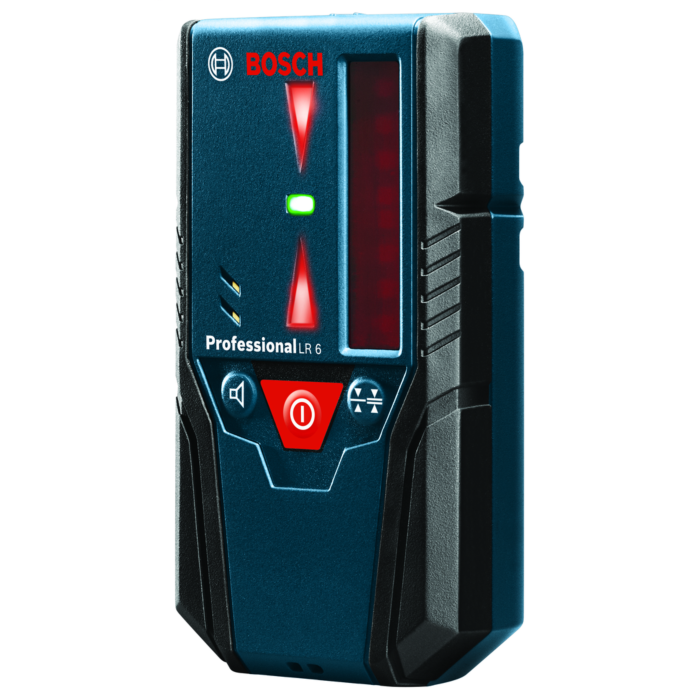

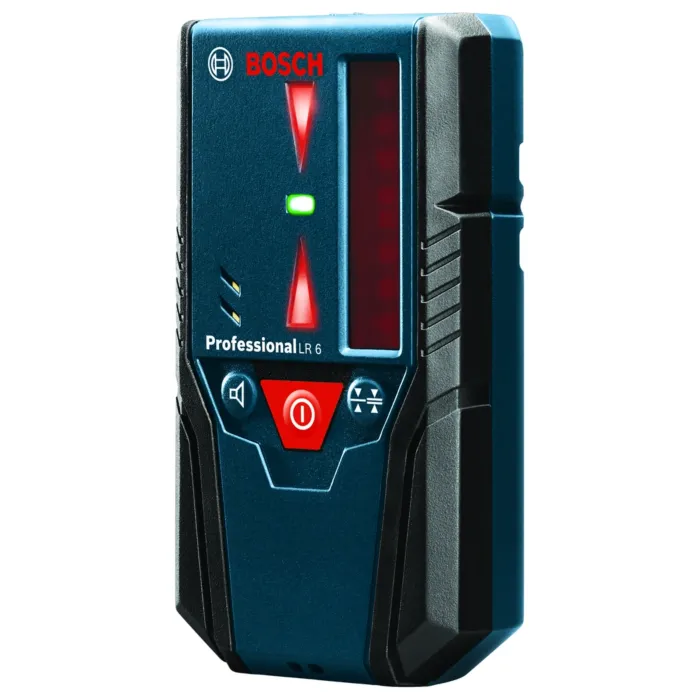

The Bosch LR 6 Line Laser Receiver allows users of the GCL 2-160 Self-Leveling Cross-Line Laser to receive the line further, with precision. The LR 6 makes line laser detection possible at distances up to 165 Ft., and it extends its operation outdoors, in bright-light conditions, or catches beams midair when there is no surface to see the beam on. The receiver's dual-sided LED arrow indicators make the receiver more flexible, and it has a volume-adjustable audio signal that give clear on-grade position indication and an accuracy button for fine or coarse adjustment. For mounting options, the receiver has built-in heavy-duty magnets that securely attach to metal surfaces, allowing easy setup on suspended-ceiling installations. The LR 6 includes a click-in mounting bracket, for simple and secure assembly, especially to a leveling rod.
- Dual-sided LED indicator – for easy visual readout on both sides of the receiver
- Quick-release mounting bracket – makes receiver easy to position, attaches on leveling rod
- Adjustable audio – gives clear signal of on-grade positioning, adjusts to worksite noise levels
- Extends working range – detects lines from Bosch GCL 2-160 up to 165 Ft., in outdoor conditions, and when there is no surface to see the beam on
- Heavy-duty magnets – for secure attachment to metal surfaces
- Robust IP54 over-molded construction – ensures splash water/dust protection for dependable operation
- Accurate to Within 1 in per 100 ft
Brand | Bosch |
---|---|
UPC | 000346476224 |
Store Location (Lititz, PA) | Aisle 25, Section I5 |
Package Length (in) | 3.00" |
Package Width (in) | 6.20" |
Package Height (in) | 6.20" |
Manufacturer Part Number | LR 6 |
Accessory Type | Receiver |
Audible Signal | ON / OFF |
Automatic Shut-Off | Yes |
Batteries Included | Yes |
Battery Size | AAA |
Case Included | No |
Color / Finish | Blue/Overmold |
Country of Origin | China |
Display Configuration | LED |
GTIN | 00000346476224 |
Indoor / Outdoor | Indoor/Outdoor |
Length (in) | 4.8 |
Material | Plastic |
Operating Temperature | 14° F / -10° C ~1 22° F / 50° C |
Recommended Use | Works with GCL 2-160 Cross-Line Laser with Plumb Points |
Thickness (in) | 1.1 |
Weight | 0.26 lb |
Weight (lbs) | 0.26 lb |
Width (in) | 2.7 |
