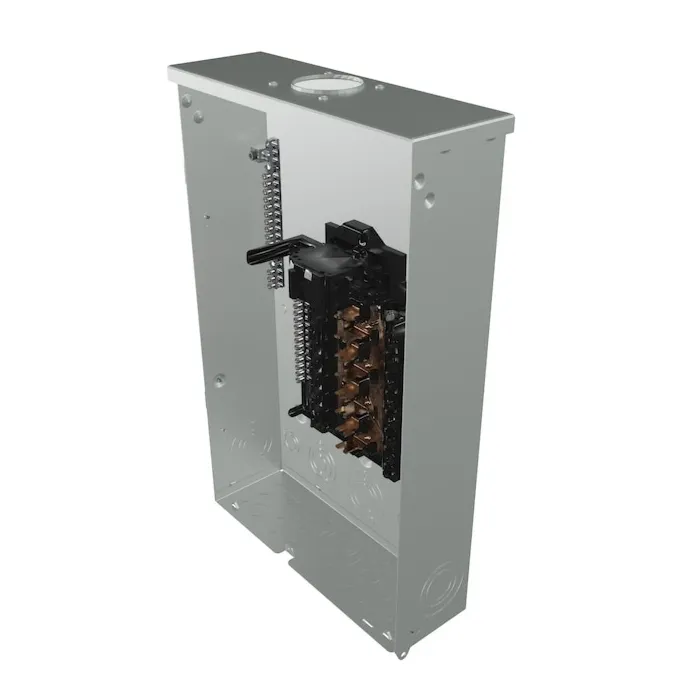

PN Series 100 Amp 16-Space 32-Circuit Main Breaker Plug-On Neutral Load Center Outdoor with Copper Bus
SKU: SPNW1632B1100C
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$229.99
Features
Specifications
Siemens PN Series Load Centers - a high quality and feature-rich line of load center products designed to meet applications for virtually every need. The PN Series load center provides maximum flexibility in combination with labor saving features to aid the contractor while installing the product. PN Series load centers accept the plug-on neutral breakers, patented insta-wire neutral/ground system, convertibility, copper bussing and mounting tabs on the trim - these features were specifically engineered to decrease installation time and increase flexibility.
- Copper bus
- 100A Max. 100K AIC main breaker factory installed
| Brand | Siemens |
|---|---|
| UPC | 804766703089 |
| Store Location (Lititz, PA) | Aisle 07, Section A3 |
| Package Length (in) | 5.00" |
| Package Width (in) | 15.50" |
| Package Height (in) | 24.60" |
| Manufacturer Part Number | PNW1632B1100C |
| Type | Outdoor |
| Series | PN |
| Current Rating | 100 A |
| Voltage Rating | 120/240 V |
| Frequency Rating | 60 Hz |
| Interrupt Rating | 22K kAIC |
| Wiring Configuration | 3-Wire |
| Phase | 1 ph |
| Number of Spaces | 16 |
| Number of Circuits | 32 |
| Bus Material | Copper |
| Enclosure Type | NEMA 3R |
| Enclosure Box Size | 23 in L x 14.25 in W x 4.5 in D |
| Finish | ANSI 61 Powder Coated |
| Color | Gray Trim |
