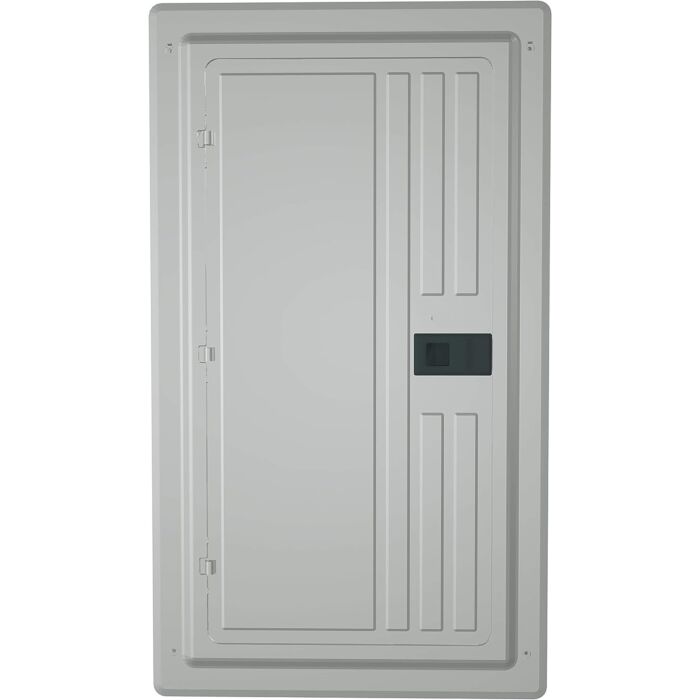

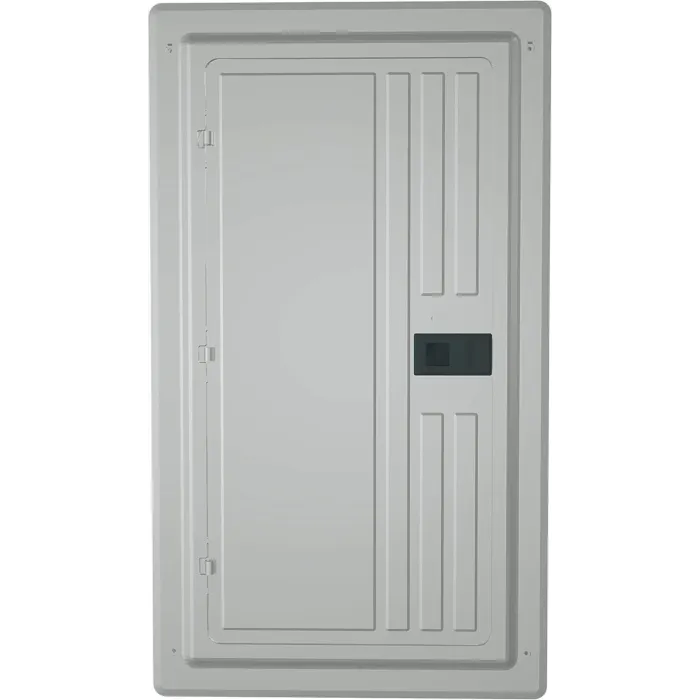

Siemens PN Series Load Centers - a high quality and feature-rich line of load center products designed to meet applications for virtually every need. The PN Series load center provides maximum flexibility in combination with labor saving features to aid the contractor while installing the product. PN Series load centers accept the plug-on neutral breakers, patented insta-wire neutral/ground system, convertibility, copper bussing and mounting tabs on the trim - these features were specifically engineered to decrease installation time and increase flexibility.
- Meets 2020 NEC 230.62 with addition of line side barrier kit
- Copper bus
- Invertible
- 100A Max. 100K AIC main breaker factory installed
Brand | Siemens |
---|---|
UPC | 040892649789 |
Store Location (Lititz, PA) | Aisle 08, Section A2 |
Package Length (in) | 6.00" |
Package Width (in) | 33.00" |
Package Height (in) | 16.00" |
Manufacturer Part Number | PN3030B1100C |
Type | Indoor |
Series | PN |
Current Rating | 100 A |
Voltage Rating | 120/240 V |
Frequency Rating | 60 Hz |
Interrupt Rating | 22K kAIC |
Wiring Configuration | 3-Wire |
Phase | 1 ph |
Number of Spaces | 30 |
Number of Circuits | 30 |
Bus Material | Copper |
Enclosure Type | NEMA 1 |
Enclosure Box Size | 26 in L x 14.25 in W x 3.88 in D |
Finish | ANSI 61 Powder Coated |
Color | Gray Trim |
