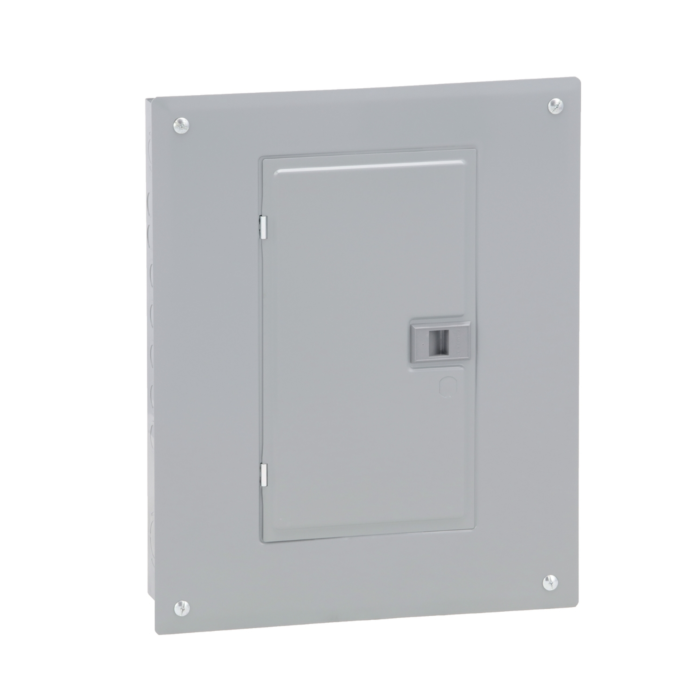

Brand | Schneider Electric |
---|---|
UPC | 785901863540 |
Manufacturer Part Number | HOM1224M100PC |
Height | 455 mm |
Bus Rated Current | 125.0 A |
Phase | 1 phase |
Short-Circuit Current | 22 kA |
Number Of Tandem Circuit Breakers | 12 |
Material | tin plated aluminium: busbar |
Surface Finish | baked enamel Gray |
Enclosure Material | welded sheet steel |
Awg Gauge | AWG 6...AWG 2/0 aluminium/copper |
Width | 362 mm |
Wiring Configuration | 3-wire |
Depth | 95 mm |
Device Composition | grounding bar (ordered separately) |
Box Number | 6 |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1403002 |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Circularity Profile | N/A |
Eu Rohs Directive | Compliant |
Range Of Product | Homeline |
Provided Equipment | circuit-breaker 1 ) 2P 100 A 120/240 V AC main supply ready assembled |
Product Or Component Type | Load Center |
Number Of Circuits | 24 |
Number Of Spaces | 12 |
Nema Degree Of Protection | NEMA 1 indoor |
Cover Type | combination flush/surface cover |
Line Rated Current | 100 A |
Load Center Type | PoN Convertible Mains (breaker) |
Product Certifications | UL listed file E-6294 |
Ambient Air Temperature For Operation | -5 °C || 40 °C |
Homeline Load Centers for Plug-on Neutral (PoN) Circuit Breakers Handout - 1170HO1401 (pdf)
Homeline PoN 100A 125A 8 12 spaces Indoor Load Centers - PWFDS-SYRS-0070 (dwg)
Homeline PoN 100A 125A 8 12 spaces Indoor Load Centers - PWFDS-SYRS-0070 (dxf)
Homeline PoN 100A 125A 8 12 spaces Indoor Load Centers - PWFDS-SYRS-0070 (pdf)
QO and Homeline Load Centers and Circuit Breaker Installation Instructions - S1B33894 (pdf)
Illustration: Wiring Diagram for HOM1224M100PC - TI_WD_HOM1224M100PC.svg
A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf)
Square D Homeline Load Centers and Circuit Breakers Brochure - 1170BR1801 (pdf)
Square D Residential Products - Limited Warranty - 0700DB2001 (pdf)
Homeline Standard Load Centers, Certificate, UL - 071002-E6294A (pdf)
Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf)
Digest Catalog 01: Load Centers - 0100CT1901_SEC-01 (pdf)
Square D Retail and Residential Products Catalog - Retail+Products+Catalog (pdf)
Homeline™ Load Centers - Internal+PEP+ENVPEP1403002_V3_2 (pdf)
