Brand | Schneider Electric |
---|---|
UPC | 785901230540 |
Store Location (Lititz, PA) | Aisle 09, Section A1 |
Package Length (in) | 6.80" |
Package Width (in) | 4.60" |
Package Height (in) | 10.60" |
Manufacturer Part Number | HOME250SPA |
Product Certifications | UL || CSA |
Height | 238 mm |
Number Of Circuits | 4 |
Number Of Spaces | 2 |
Phase | 1 phase |
Cover Type | surface cover |
Ambient Air Temperature For Operation | -5 °C || 40 °C |
Line Rated Current | 50 A |
Enclosure Material | welded galvannealed steel |
Width | 124 mm |
Wiring Configuration | 3-wire |
Depth | 102 mm |
Box Number | 1R |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1403002 |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Circularity Profile | N/A |
Eu Rohs Directive | Compliant |
Range Of Product | Homeline |

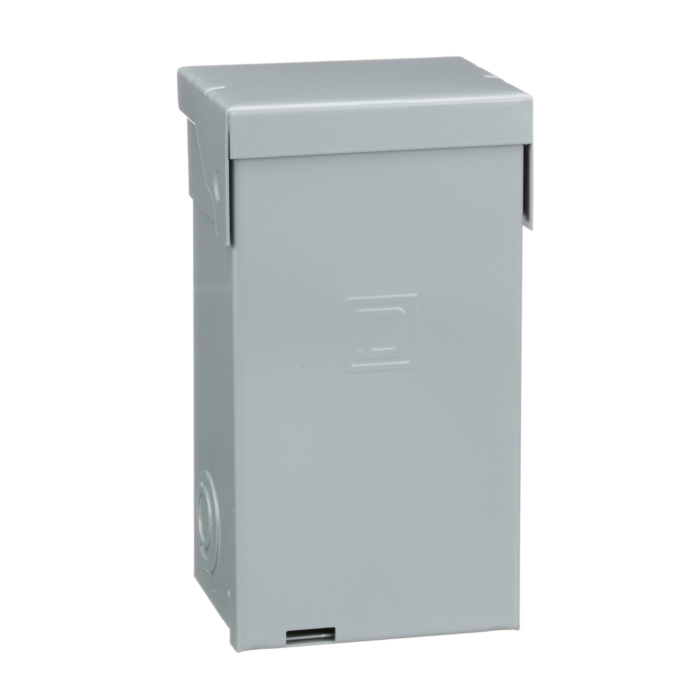

Product Or Component Type | enclosed circuit breaker |
Load Center Type | main lugs |
Warranty | 18 months |
Square D Back-Up Power Solutions Handout - 0102HO9901 (pdf)
HOMELINE CENTERS NEMA TYPE 3R ENCLOSURES - PWFDS-SYRS-0237.DWG
HOMELINE CENTERS NEMA TYPE 3R ENCLOSURES - PWFDS-SYRS-0237.DXF
HOMELINE CENTERS NEMA TYPE 3R ENCLOSURES - PWFDS-SYRS-0237 (pdf)
QO and Homeline Load Centers and Circuit Breaker Installation Instructions - S1B33894 (pdf)
Illustration: Wiring Diagram for HOME250SPA - TI_WD_PWFDS-SYRS-0237.svg
Illustration: Dimensions and Knockouts Drawing for HOME250SPA - TI_DIM_PWFDS-SYRS-0237.svg
Square D Homeline Load Centers and Circuit Breakers Brochure - 1170BR9601R1003 (pdf)
A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf)
Square D Residential Products - Limited Warranty - 0700DB2001 (pdf)
Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf)
Digest Catalog 01: Load Centers - 0100CT1901_SEC-01 (pdf)
Homeline™ Load Centers - Internal+PEP+ENVPEP1403002_V3_2 (pdf)
