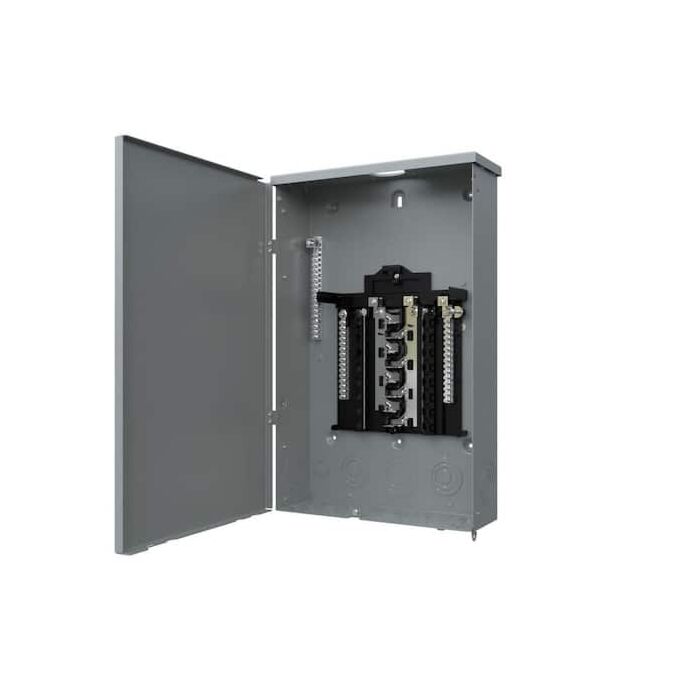

125 A 120/240 V 100 kAIC Plug-On Neutral Ready Main Lug Load Center
SKU: SPNW1632L1125C | Location: Aisle 09, Section A1
$169.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
3 In stock
Features
Specifications
Siemens PN Series Load Centers - a high quality and feature-rich line of load center products designed to meet applications for virtually every need. The PN Series load center provides maximum flexibility in combination with labor saving features to aid the contractor while installing the product. PN Series load centers accept the plug-on neutral breakers, patented insta-wire neutral/ground system, convertibility, copper bussing and mounting tabs on the trim - these features were specifically engineered to decrease installation time and increase flexibility.
- Features Siemens plug-on neutral, for simple quick installation, that is spacious with over 4 in of wire bending space and a secure reliable installation method
- PN Series plug-on neutral load center includes 2 factory installed ground bars
- Single phase load center
- 100K AIC Max. rated
| Brand | Siemens |
|---|---|
| UPC | 804766703096 |
| Store Location (Lititz, PA) | Aisle 09, Section A1 |
| Package Length (in) | 4.70" |
| Package Width (in) | 24.00" |
| Package Height (in) | 15.00" |
| Manufacturer Part Number | PNW1632L1125C |
| Type | Plug-On Neutral Ready |
| Series | PN |
| Current Rating | 125 A |
| Voltage Rating | 120/240 V |
| Interrupt Rating | 100 kAIC |
| Wiring Configuration | 3-Wire |
| Number of Poles | 2 |
| Phase | 1 ph |
| Number of Spaces | 16 |
| Number of Circuits | 32 |
| Bus Material | Copper |
| Mounting Type | Flush/Surface |
| Enclosure Type | NEMA 3R |
| Enclosure Box Size | 23 in L x 14.25 in W x 4.5 in D |
| Finish | ANSI 61 Powder Coated |
| Color | Gray Trim |
