Simpson Strong-Tie

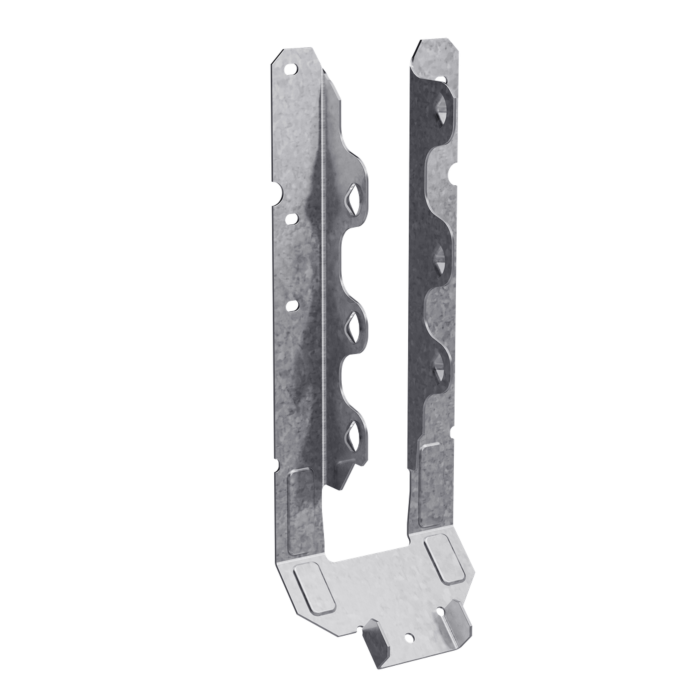

LRUZ ZMAX® Galvanized Slopeable Light Rafter U Hanger for 2x10

SKU: LRU210Z | Location: Aisle 30, Section S2
check
PICKUP
Your store: PaulB Lititz, PA |
check
DELIVERY
Ship to your home or business

check 31 In stock

Features chevron-down chevron-up
The LRUZ offers an economic alternative for those applications requiring a sloped hanger for rafter-to-ridge connections. Used with solid sawn rafters, the LRUZ’s unique design enables the hanger to be installed either before or after the rafter is in place. The field-adjustable seat helps improve job efficiency by eliminating mismatched angles in the field and lead times associated with special orders. The LRUZ offers comparable or better load capacity to other rafter hangers at a reduced cost while using fewer fasteners.
  • The open design and ability to field-adjust the slope make the LRUZ ideal for both retrofit or new applications
Specifications chevron-down chevron-up
Brand Simpson Strong-Tie
UPC 707392629344
Store Location (Lititz, PA) Aisle 30, Section S2
Package Length (in) 8.00"
Package Width (in) 4.40"
Package Height (in) 1.80"
Manufacturer Part Number LRU210Z
Country of Origin United States
Depth 1.859961 in.
Height 9.7381 in.
Width 3.50 in.
Limited Warranty Limited warranty, available at www.strongtie.com/limited-warranties.
Packaging Quantity 1
Downloads chevron-down chevron-up

download  Simpson Strong-Tie 2024 Catalog.pdf
