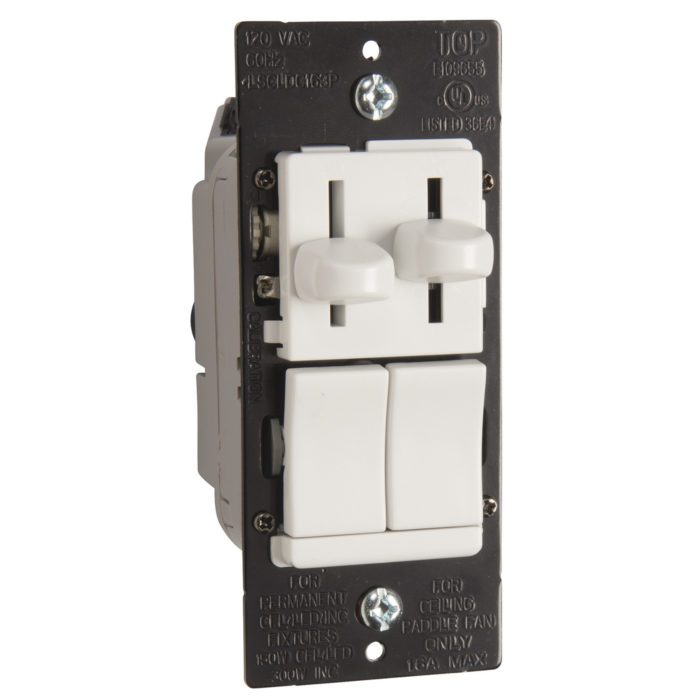

LS Series CFL/LED/Incandescent Single Pole/3-Way Slide Dimmer with Single Pole/3-Way, 3-Speed De-Hummer Fan Control, Preset, White
SKU: LSDC163PWV
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$39.99
Features
Specifications
Downloads
The industry's first CFL/LED dimmer with fan speed control works with select dimmable CFL/LED or incandescent lighting loads and features a sleek, sculpted ergonomic design for smooth, easy operation and precise control.
- cULus Listed
- CFL/LED dimmable bulb compatible (except for 0-10V LED drivers)
- Single pole/3-way versions
- Unique integrated single pole/3-way dimmer with fan speed control
- Ratings: 150W LED & CFL: 300W Incandescent: 1.6A (Fan Control): 120VAC 60Hz
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007040579 |
| Store Location (Lititz, PA) | Aisle 09, Section D1 |
| Package Length (in) | 2.00" |
| Package Width (in) | 4.00" |
| Package Height (in) | 4.00" |
| Manufacturer Part Number | LSCLDC163PWCCV |
| Depth | 1.28 in |
| Height | 4.19 in |
| Special Features | The industry's first CFL/LED dimmer with fan speed control works with select dimmable CFL/LED or incandescent lighting loads and features a sleek, sculpted ergonomic design for smooth, easy operation and precise control. Preset. |
| Preset | Yes |
| Width | 2.5 in |
| Country of Origin | China |
| Load Type | Incandescent |
| Color | White |
| Finish | Matte |
| Material | Steel,Thermoplastic |
| Product Line | Pass & Seymour |
| Voltage | 120 VAC |
| Switch Type | Slider |
| Features | Low-End Trim (Dim Range) |
| Indoor/Outdoor | Indoor |
| Frequency Rating | 60 Hz |
| Mounting Type | Wall Box |
| Number of Switches | 2.0 |
| Wire Size | #14 - #10 AWG |
| Requires Neutral Wire | No |
| Product Series | Trademaster |
| Application Sector | Residential |
| Load Rating | 120V 300W (Incandescent) |
| Number of Poles | Single Pole 3-Way |
| Wire Connection Type | Flying Leads |
| Dimming Compatibility | Forward Phase |
| Warranty Type | Limited Lifetime Warranty |
