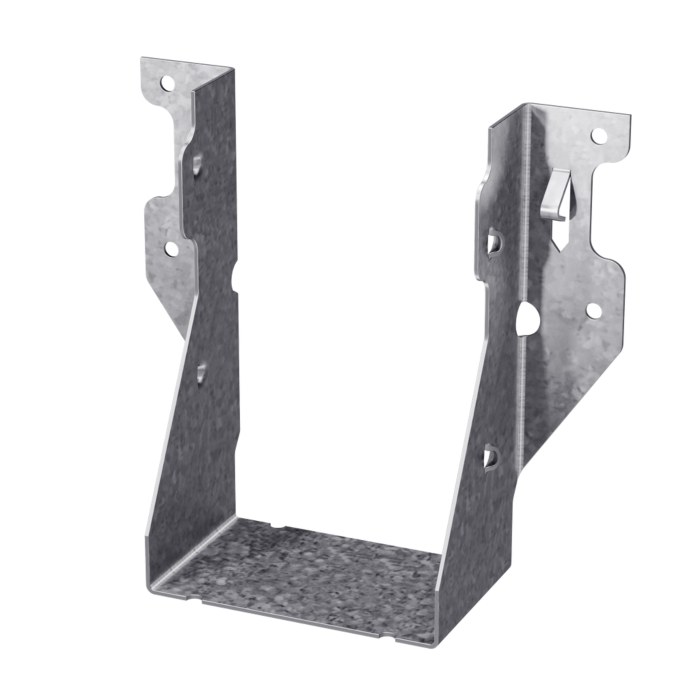

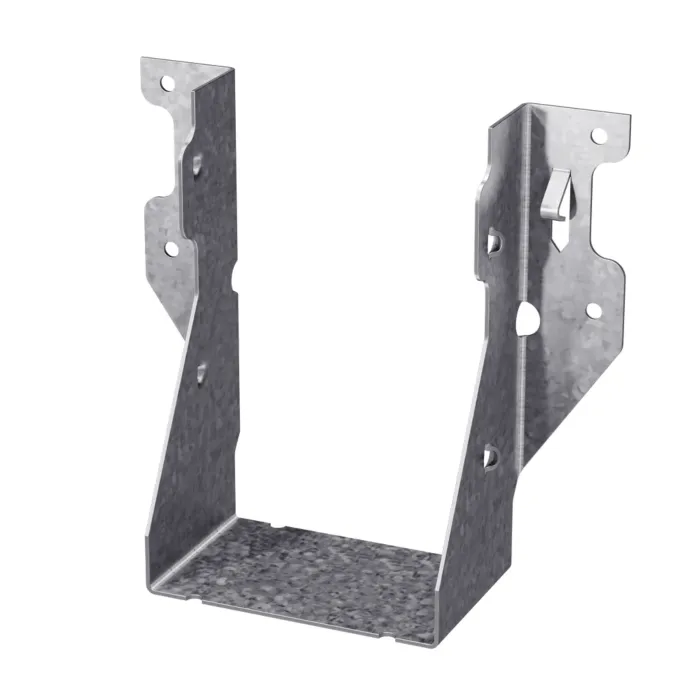

LUS ZMAX® Galvanized Face-Mount Joist Hanger for Double 2x6
SKU: LUS262XZ
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$3.79
Features
Specifications
Downloads
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.
- Patented double-shear nailing design provides greater strength with fewer nails
- Speed prongs for fast and easy installation
- Angled joist nailing easier in tight spaces
- Do not bend or remove tabs
- Made from 18-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
| Brand | Simpson Strong-Tie |
|---|---|
| UPC | 044315271908 |
| Store Location (Lititz, PA) | Aisle 30, Section S3 |
| Package Length (in) | 5.40" |
| Package Width (in) | 4.80" |
| Package Height (in) | 3.00" |
| Manufacturer Part Number | LUS26-2Z |
| Country of Origin | United States |
| Depth | 5.346" |
| Nominal joist size | Double 2x6 and Double 2x8 |
