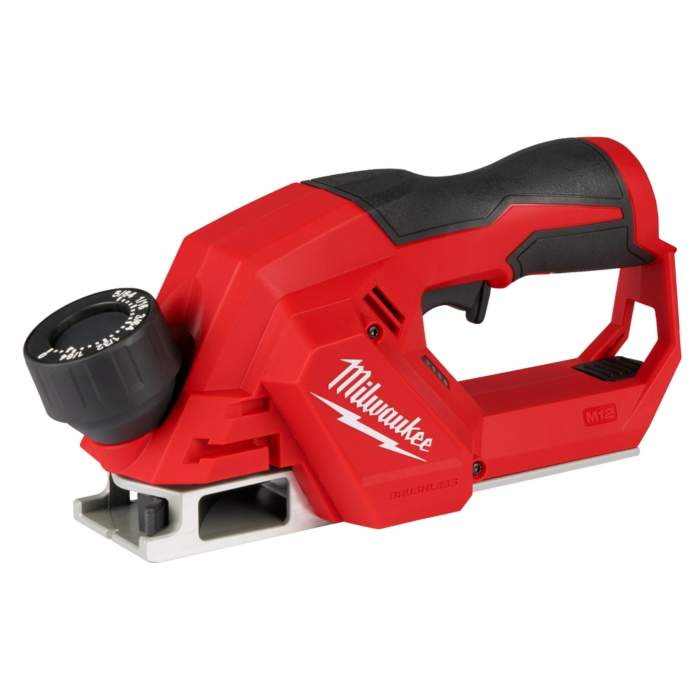

The MILWAUKEE® M12™ Brushless 2" Planer is a compact tool designed for finish carpenters and remodelers, providing the power to plane and scribe soft hardwoods. It can remove up to 5/64ths of material in a single pass, and its 14,500 RPM motor with two blades delivers a smooth surface finish. The planer features a lightweight design, a 2-inch wide shoe optimized for scribing and planing doors, and 21 precise depth settings ranging from 0 to 5/64ths of an inch. For user convenience, it includes a dual-sided shavings port, a lockable kickstand, and a universal hose adapter for vacuum attachment to maintain a clean jobsite. This battery-powered planer also has an integrated fuel gauge and is backed by Milwaukee's 5-year limited power tool warranty.
Includes:
(1) M12 Brushless 2" Planer
(1) Shavings Port Adapter
(1) Universal Hose Adapter

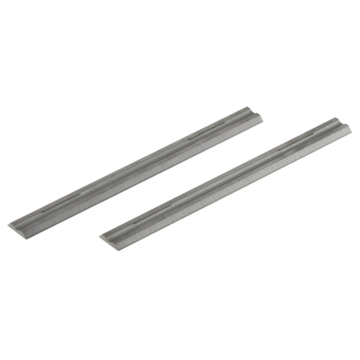

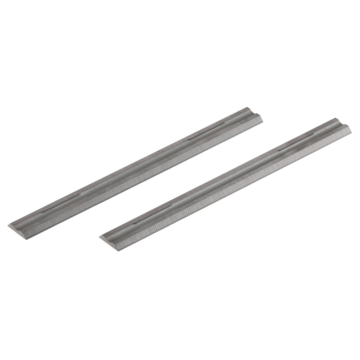

(4) 2" Carbide Blades
(1) Hex Key
- Brushless motor delivers maximum power and long motor life
- 2" wide shoe optimized for common trim materials
- Dual-sided shavings port to direct shavings to either side of the tool
- 14,500 RPMs and 2 carbide blades for a smooth surface finish
- Included universal hose adapter provides compatibility with a wide range of vacuum sizes
- Compact and lightweight design at only 3.1 lbs
- 21 depth settings varying from 0 - 5/64"
- Onboard blade storage for added convenience
- Fits all M12™ battery packs
| Brand | Milwaukee |
|---|---|
| UPC | 045242619559 |
| Store Location (Lititz, PA) | Aisle 24, Section I4 |
| Package Length (in) | 5.43" |
| Package Width (in) | 4.53" |
| Package Height (in) | 14.53" |
| Manufacturer Part Number | 2524-20 |
| Country of Origin | China |
| Powered Tool Power Source | Electric |
| Cordless/Corded | Cordless |
| Maximum RPM | 14500 RPM |
| Maximum Cutting Depth | 0.0781" |
| Maximum Width Cutting Capacity | 2.2" |
| Shoe Length | 8.75" |
| Lock-on Switch | No |
| Variable Speed | No |
| Fence Included | No |
| Blade Type | Carbide |
| Blade Count | 2 |
| Housing Material | Glass-Filled Nylon |
| Color/Finish | Black, Red |
| Case Included | No |
| Integrated Chip Management | Yes |
| Switch Type | Trigger |
| Length | 10.87" |
| Width | 3.83" |
| Weight | 3.38 pounds |
| Number of Batteries Required | 1 |
| Battery Composition | Lithium-Ion (Li-ion) |
| Battery Voltage | 12V |
| Charger Included | No |
| CSA Certified | No |
| ETL Listed | No |
| UL Listed | Yes |
