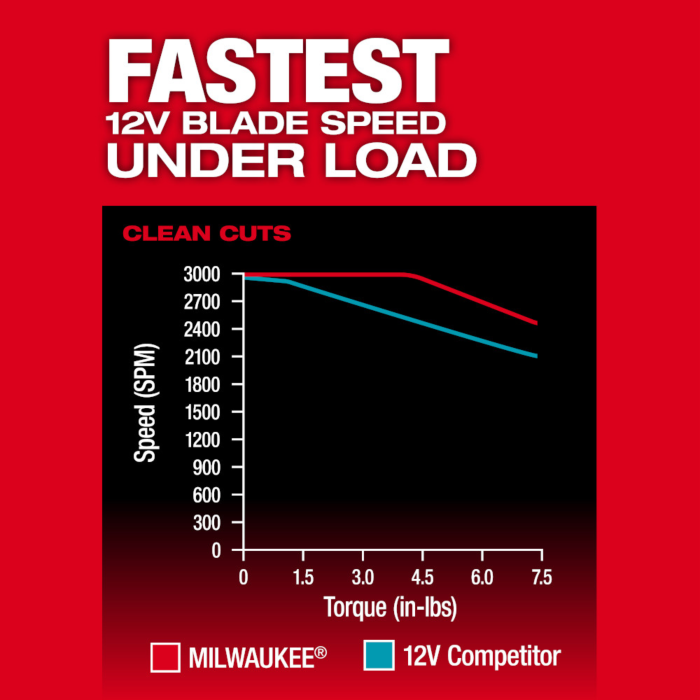

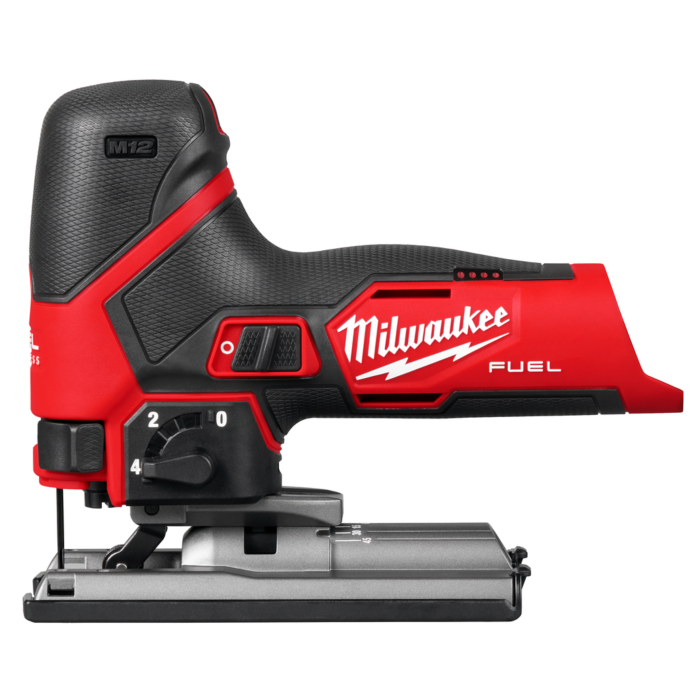

Designed for the professional carpenter and remodeler, the MILWAUKEE® M12 FUEL™ Jig Saw is optimized for power and precision on the jobsite. The M12 FUEL™ Jig Saw delivers the Fastest 12V Blade Speed Under Load, More Control in More Orientations, and Maximum Cut Line Visibility. The POWERSTATE™ Brushless Motor and REDLINK PLUS™ intelligence delivers 3000 strokes per minute at a 7/8" stroke for clean, controlled cuts in a wide variety of finish materials. The compact size, low vibration, and ergonomic barrel-grip design provide more control across standard and inverted orientations of usage. The saw is equipped with an on/off LED light and an on/off dust blower to optimize cut line visibility for the application at hand. The M12™ FUEL Jig Saw features orbital action with 5 adjustment levels, variable speed dial, blade storage, tool-less blade change, and a durable aluminum base plate with bevel detents, and carries our industry-leading 5-year limited power tool warranty.

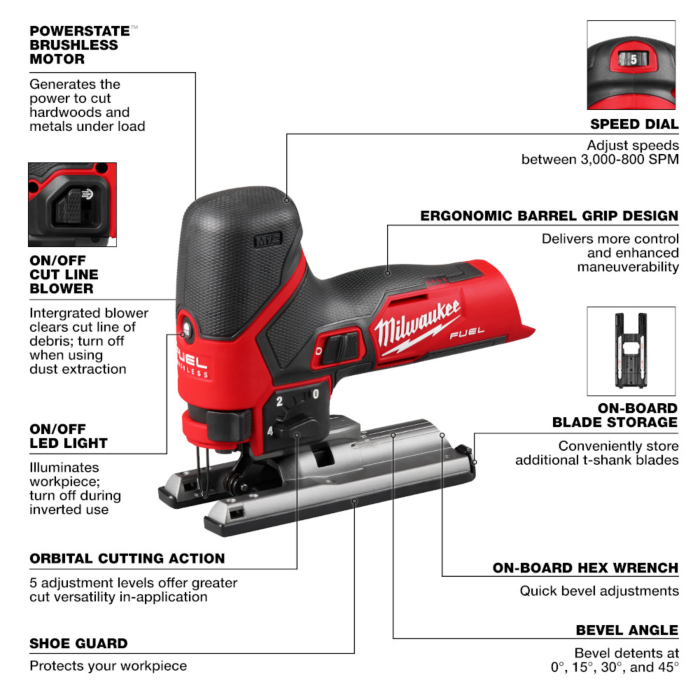

- POWERSTATE™ Brushless Motor: Generates the power to cut hardwoods and metals under load.
- REDLINK PLUS™ Intelligence: Ensures maximum performance and protects from overloads, heating, and over-discharge.

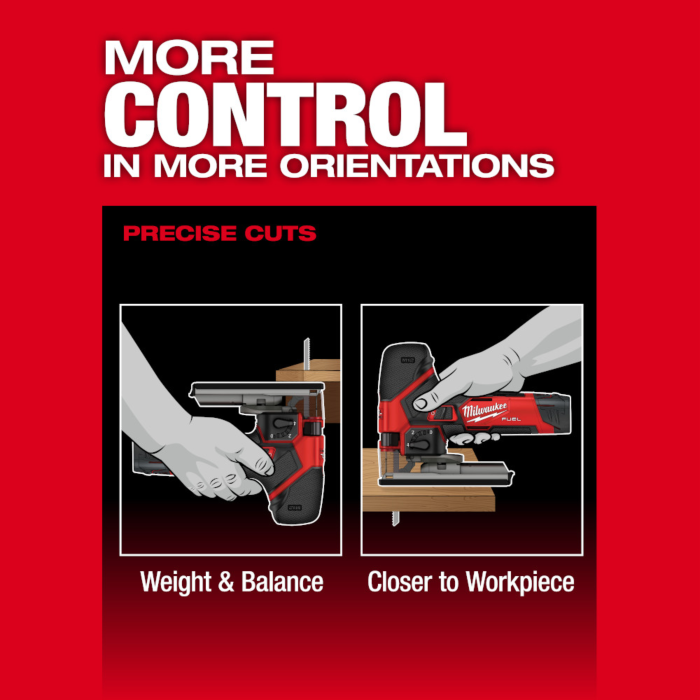

- Ergonomic barrel grip design delivers more control and enhanced maneuverability.
- Variable speed dial provides 5 adjustment settings that range from 3000 - 800 SPM.
- Orbital action with 5 adjustment levels offers greater cut versatility in application.

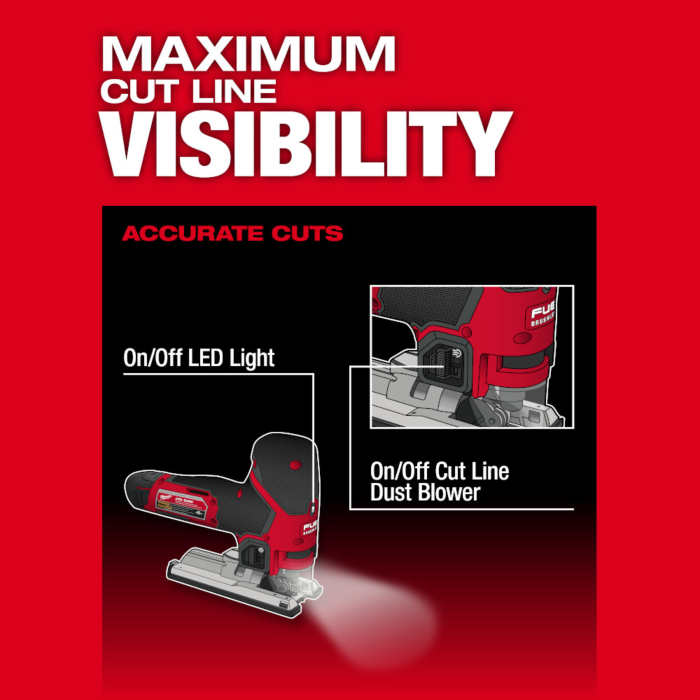

- LED light illuminates the workpiece and allows user to turn off during inverted use.
- Integrated blower clears the cut line of debris and allows user to turn off when using dust extraction.
- Accepts T-Shank jig saw blades.
- On-board blade storage
- Tool-free quick eject blade change
- Durable aluminum base plate with bevel detents at 0°, 15°, 30°, and 45°.
- Includes Dust Cover, Splinter Guard, Shoe Cover, Vacuum Shroud
- On-board hex wrench for quick, efficient bevel adjustments.
- Compatible with over 125+ tools on the M12™ System.

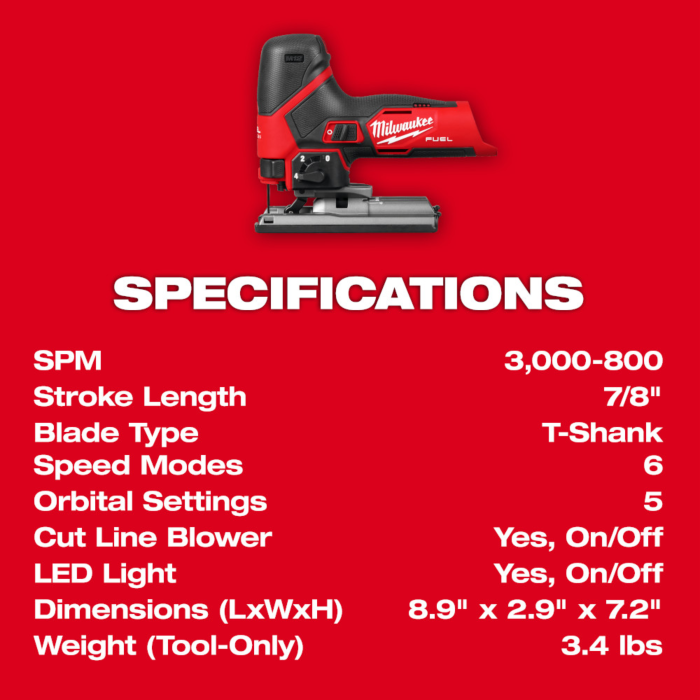

| Brand | Milwaukee |
|---|---|
| UPC | 045242750672 |
| Store Location (Lititz, PA) | Aisle 24, Section I4 |
| Package Length (in) | 8.23" |
| Package Width (in) | 3.74" |
| Package Height (in) | 10.43" |
| Manufacturer Part Number | 2545-20 |
| Badge Branding | FUEL™ |
| Battery System | M12™ |
| Depth | 8.9 Inches |
| FUEL | Yes |
| Handle Type | Barrel Grip |
| Material | Metal |
| Material Application | Wood;Metal;Plastic |
| Motor Type | POWERSTATE™ Brushless |
| ONE-KEY Enabled | No |
| Power Source | Cordless |
| Power Tool Branding | FUEL™ |
| Voltage | 12 |
| Weight Excluding Battery (lb) | 3.4 |
| Country of Origin | China |
