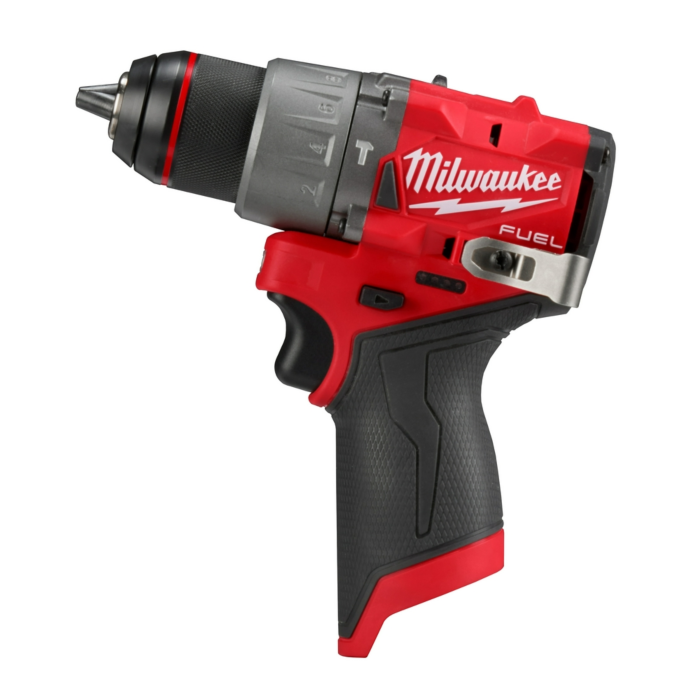

The MILWAUKEE® M12 FUEL™ 1/2" Hammer Drill is the most powerful and compact subcompact drill driver, delivering the fastest speed under load. Its POWERSTATE™ brushless motor provides superior power for a wide variety of high-speed applications. At just 5.9 inches in length, it is the shortest solution in its class, offering easy access to tight spaces. MILWAUKEE® REDLINK PLUS™ Intelligence ensures top-tier thermal performance and the fastest speed under load for quicker drilling and driving. It is built with an all-metal 1/2-inch chuck and all-metal gearcase for best-in-class durability, and a mechanical clutch provides consistent torque for driving fasteners. The drill is compatible with MILWAUKEE® M12™ REDLITHIUM™ 2.0Ah compact and 4.0Ah extended capacity battery packs for more work per charge, and it is part of the fully compatible MILWAUKEE® M12™ System, which includes over 125 solutions.
- Brushless motor delivers the power to complete the widest range of applications
- Compact size for the most access in tight spaces
- Lightweight at 2.6 lbs for easy portability and less fatigue
- 1/2" all-metal chuck for maximum durability, grip, and bit retention
- Mechanical clutch for consistency in driving a wide range of fasteners
- All-metal gearcase for ultimate durability
- Belt clip for portability
- 400 in-lbs of torque
- LED light for better visibility in low-light situations
- Part of the M12 system, featuring over 125+ tools
| Brand | Milwaukee |
|---|---|
| UPC | 045242637300 |
| Store Location (Lititz, PA) | Aisle 24, Section I3 |
| Package Length (in) | 8.00" |
| Package Width (in) | 6.80" |
| Package Height (in) | 4.00" |
| Manufacturer Part Number | 3404-20 |
| Country of Origin | Mexico |
| Powered Tool Power Source | Electric |
| Drill Type | Hammer Drill |
| Cordless/Corded | Cordless |
| Impacts per Minute | 22500 IPM |
| Drill/Driver Maximum RPM | 1550 RPM |
| Maximum Torque | 33.33 ft-lbs |
| Variable Speed | Yes |
| Number of Speeds | 2 |
| Chuck Size | 1/2" |
| Chuck Design | Keyless |
| Length | 6" |
| Width | 2.25" |
| Color/Finish | Red, Black |
| Tool Handle Type | Pistol |
| Side Handle | No |
| Housing Material | Glass-Filled Nylon |
| Switch Type | Trigger |
| Lock-on Switch | No |
| Reverse | Yes |
| Integrated Light | Yes |
| Weight - Battery Installed | 2.6 lbs |
| Weight - Excluding Battery | 2.2 lbs |
| Number of Batteries Required | 1 |
| Battery Composition | Lithium-Ion (Li-ion) |
| Battery Voltage | 12V |
| Charger Included | No |
| CSA Certified | No |
| ETL Listed | No |
| UL Listed | Yes |
| Case Included | No |
| Package Contents | (1) M12 FUEL 1/2" Hammer Drill/Driver (3404-20); (1) Belt Clip |
