Milwaukee

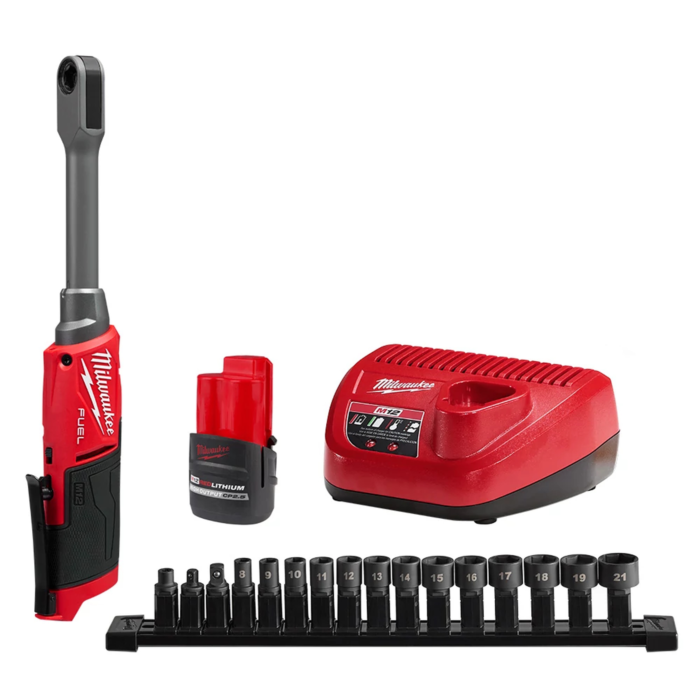

M12 FUEL™ INSIDER™ Extended Reach Box Ratchet Kit

SKU: M305021
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 10 in stock
Features chevron-down chevron-up

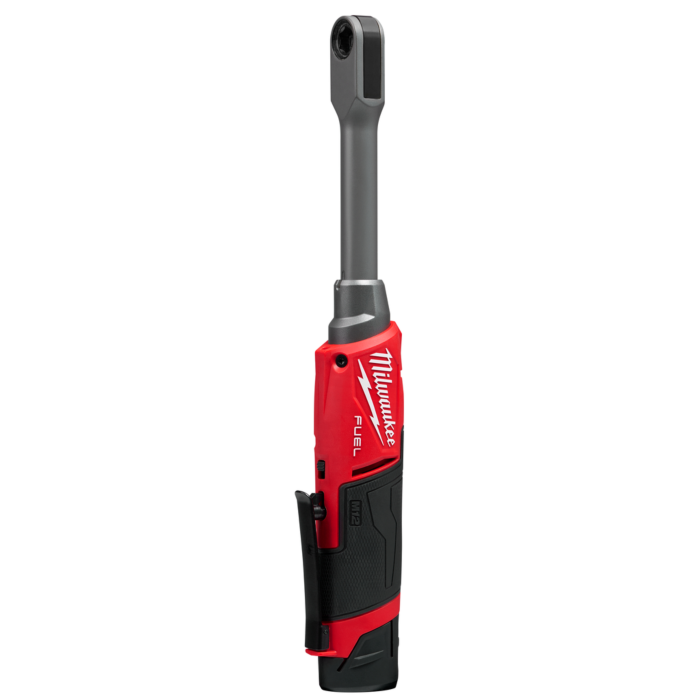

The MILWAUKEE® M12 FUEL™ INSIDER™ Extended Reach Box Ratchet is a new-to-world solution that reinvents the traditional ratchet. The low-profile head design allows sockets & adapters to be inserted directly into the tool. The M12 FUEL™ INSIDER™ delivers UNRIVALED ACCESS and over ¾” shorter head profile size with the socket to reach deep into the engine bay and fit into the tightest spaces. The INSIDER™ delivers the combination of 60 FT-LBS OF MAX TORQUE and 350 RPMs to remove stubborn fasteners and complete more work faster. Mechanics will experience the ULTIMATE VERSATILITY with our provided INSIDER™ Box Ratchet Sockets (8-19, & 21mm), ¼” Hex Bit, ¼” anvil adapter, & 3/8” anvil adapter to tackle any job in the shop. The Box Ratchet 6 Point Sockets are pass through up to 15mm & 9/16” to run nuts on threaded rod and eliminate the frustration of sockets bottoming out. The included M12 REDLITHIUM™ HIGH OUTPUT™ CP2.5 Battery is built with a resistant housing, providing increased protection against exposure to common oils, greases, and solvents found in automotive and manufacturing environments. The M12 FUEL™ INSIDER™ Extended Reach Box Ratchet and the M12 REDLITHIUM™ HIGH OUTPUT™ CP2.5 Battery are part of the M12™ System, which is fully compatible with over 150 solutions.
  • Unrivaled Access with INSIDER™ Box Ratchet Sockets
  • Ultimate Versatility to get more jobs done with one tool
  • Best combination of speed (350 RPM) & torque (60 ft-lbs) with worlds smallest head size
  • Includes 13PC Metric INSIDER™ Box Ratchet Sockets: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21
  • Includes 3 INSIDER™ Box Ratchet Adapters: 1/4" Hex, 1/4" Anvil, 3/8" Anvil
  • POWERSTATE™ brushless motor delivers maximum power and long motor life
  • Can be used manually without engaging the tool’s motor
  • Dual LED lights to illuminate work areas
  • Extended reach neck for ultimate access and reduce knuckle busting
  • Includes (1) M12™ High Output™ 2.5 Ah battery for optimized performance
  • On-board battery fuel gauge displays remaining run time
  • Extended paddle switch for multiple grip positions
  • Sockets can be inserted into both sides of the tool to eliminate the trigger from impeding access
Specifications chevron-down chevron-up
Brand Milwaukee
UPC 045242850617
Store Location (Lititz, PA) Aisle 24, Section H4
Package Length (in) 8.78"
Package Width (in) 15.98"
Package Height (in) 1.37"
Manufacturer Part Number 3050-21
Anvil Size 1/2 in;3/8 in;1/4 in
Badge Branding FUEL™
Battery Amp Hour (Ah) 2.5
Battery System M12™
Color Finish Red;Metallics
Depth 16 Inches
Drive Size Multiple Drive Size Set
Fastening Torque 60
FUEL Yes
Head Profile 0.83 in
Material Metal
Maximum Torque (ft-lbs) 60
Motor Type POWERSTATE™ Brushless
Number of Batteries Required 1
ONE-KEY Enabled No
Power Tool Branding FUEL™
Rotations Per Minute Range (RPM) 0-350
Torque Range 0 - 60ft-lbs
Voltage 12
Weight - Battery Installed (lb) 2.7
Weight Excluding Battery (lb) 2.3
Country of Origin Mexico
