Milwaukee

M12™ FORCE LOGIC™ Press Tool Kit w/ ONE-KEY™

SKU: M257320
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 3 in stock
Features chevron-down chevron-up
The M12™ FORCE LOGIC™ Press Tool Kit with ONE-KEY™ is the smallest press tool on the market with remote tracking, management, and lockout, and represents a new level in portability and accessibility around installed pipe. The M12™ press tool features a one-handed, in-line design enabling you to operate the tool nearly anywhere you can fit your arm. Auto-Cycle ensures a full press every time with a visual indicator light that shows when a full cycle is achieved or when the tool needs calibration. The cordless press tool minimizes downtime by requiring service every 37,000 press cycles. This press tool is ONE-KEY™ enabled with the capabilities to provide time-stamped data logs for faster, more efficient reporting.

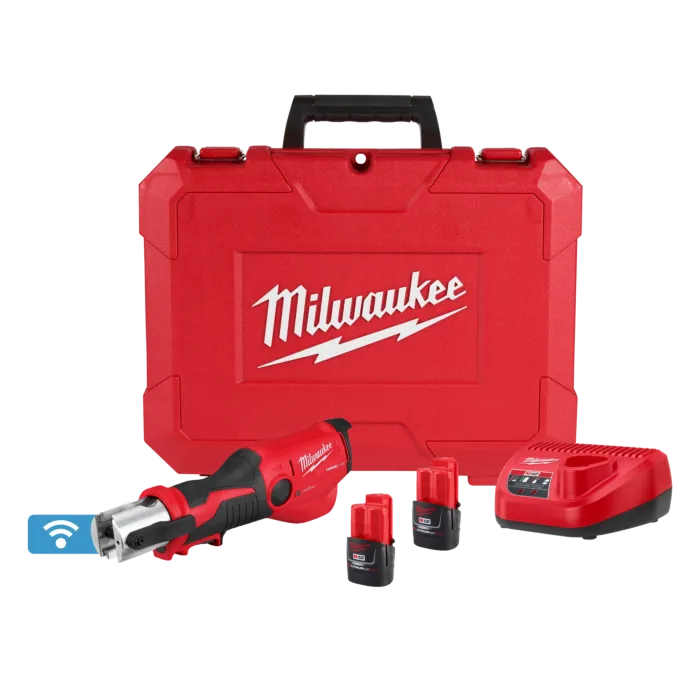

Includes:
(1) M12™ FORCE LOGIC™ Press Tool Kit w/ ONE-KEY™
(2) M12™ REDLITHIUM™ CP2.0 Battery Two Pack
(1) M12™ Lithium-ion Battery Charger
(1) Carrying Case

  • In-line design for unrivaled access​
  • Enables connections on copper, PEX, black iron, stainless steel, & ACR​
  • Auto-cycle ensures full press every time​
  • Prepress battery check ensures tool won't start a press it can't complete​
  • ONE-KEY™ enabled for tracking, managing, and reporting​
  • Time-stamped data logs for efficient, precise reporting​
  • Performs 37,000 press cycles between service inspections​
  • Cut, fasten, and connect on one system​
  • Compatible with all M12™ batteries & chargers​
Specifications chevron-down chevron-up
Brand Milwaukee
Date Added Jun 14, 2026
Store Location (Lititz, PA) Aisle 07, Section I2
Package Length (in) 16.25"
Package Width (in) 6.00"
Package Height (in) 21.50"
Manufacturer Part Number 2573-20
Battery System M12™
ONE-KEY™ Enabled Yes
Max Copper Pipe Size 1-1/4"
Max ACR Pipe Size 1-3/8"
Brushless Motor No
Material Compatibility BIP, CU, Stainless Steel, ACR, PEX
Weight 3.69 lb
Length 12.57"
Height 3.98"
Warranty 5 Year Tool, 2 Year Battery
