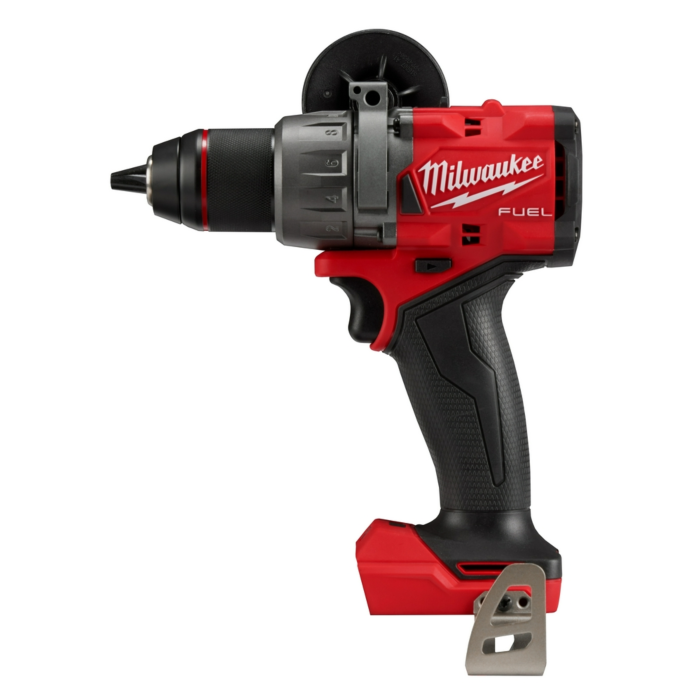

The MILWAUKEE® M18 FUEL™ 1/2” Drill Driver is the most powerful and compact cordless drill driver in its class, measuring only 6.9” in length for excellent access in tight spaces. Its POWERSTATE™ brushless motor delivers the highest power under load, enabling it to drill the largest holes, including 2-9/16" self-feed holes in dense woods. The tool is equipped with AutoStop™ Control Mode, an industry-leading safety feature that prevents overrotation in a bind-up. The REDLINK PLUS™ intelligence maximizes performance while protecting the tool from overloads, overheating, and overdischarge. Further enhancing durability and performance, it features a best-in-class all-metal ratcheting chuck for superior grip strength, durability, and corrosion resistance, and it is powered by MILWAUKEE® M18™ REDLITHIUM™ battery packs.
- Compact size for access into tight spaces and reduced fatigue
- Auto-Stop™ control mode for enhanced safety
- Brushless motor delivers the power to complete the widest range of applications of any drill driver
- Fastest drilling and driving applications under load
- Auto-Stop feature to protect from overrotation in a bind-up for enhanced safety
- 1/2" all-metal chuck with carbide teeth for maximum durability, grip, and bit retention
- Mechanical clutch for consistency in driving a wide range of fasteners
- Unmatched performance with the most runtime in class with the XC 5.0Ah batteries
- All-metal gearcase for ultimate durability
- All-metal belt clip for portability
- 1400 in-lbs of torque
- LED light for better visibility in low-light situations
| Brand | Milwaukee |
|---|---|
| UPC | 045242637706 |
| Store Location (Lititz, PA) | Aisle 23, Section H1 |
| Package Length (in) | 11.38" |
| Package Width (in) | 8.70" |
| Package Height (in) | 3.86" |
| Manufacturer Part Number | 2903-20 |
| Country of Origin | Vietnam |
| Powered Tool Power Source | Electric |
| Drill Type | Variable Speed Drill |
| Cordless/Corded | Cordless |
| Chuck Size | 1/2" |
| Chuck Design | Keyless |
| RPM Range | 0-2100 RPM |
| Variable Speed | Yes |
| Maximum Torque | 1400 in-lbs |
| Clutch Settings | 16 |
| Reverse | Yes |
| Overload Protection | Yes |
| Color/Finish | Red/Black |
| Housing Material | Glass-Filled Nylon |
| Collet/Chuck Material | Metal |
| Lock-On Switch | No |
| Rocker Switch | No |
| Switch Type | Trigger |
| Length | 6.88" |
| Width | 2.38' |
| Side Handle | Yes |
| Blows per Minute | 33 |
| Weight - Excluding Battery | 3.21 lbs |
| Weight - Battery Installed | 4.82 lbs |
| Number of Batteries Required | 1 |
| Battery Composition | Lithium-Ion (Li-ion) |
| Battery Voltage | 18V |
| Charger Included | No |
| Product Storage Included | No Case Included |
| CSA Certified | No |
| ETL Listed | No |
| UL Listed | Yes |
| Package Contents | (1) M18 FUEL 1/2" Drill/Driver (2903-20); (1) Side Handle; (1) Belt Clip |
