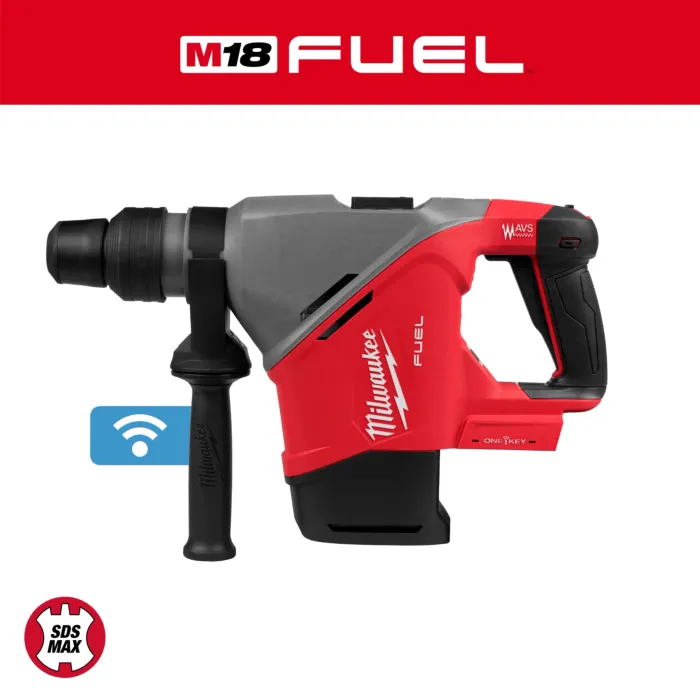

The M18 FUEL™ 1-9/16” SDS Max Rotary Hammer with ONE-KEY™ delivers the ultimate combination of cordless portability and corded power. Driven by a POWERSTATE™ Brushless Motor and REDLINK PLUS™ Intelligence, it produces 6 ft-lbs of impact energy for faster, harder-hitting drilling. When paired with an M18™ REDLITHIUM™ FORGE™ HD12.0 Battery, it can drill over twenty-four 7/8” x 6” holes on a single charge. Built for maximum control and safety, it features AUTOSTOP™ Kickback Control to prevent dangerous over-rotation and an AVS Anti-Vibration System to minimize user fatigue. Additionally, integrated VACLINK™ technology allows for the wireless activation of compatible dust extractors, while ONE-KEY™ compatibility ensures seamless tool tracking and inventory management on the jobsite.
- Designed for maximum control
- Over (24) 7/8” x 6” holes per charge when paired with the M18™ REDLITHIUM™ FORGE™ HD12.0 Battery
- POWERSTATE™ brushless motor generates the power to deliver 488 RPM & 3,300 BPM
- REDLINK PLUS™ Intelligence ensures maximum performance and protects from overload, overheating, and over-discharge
- AUTOSTOP™ Enhanced Kickback Control prevents over rotation in a tool bind up
- AVS Anti-Vibration System minimizes vibration for maximum comfort
- VACLINK™ Wireless Dust Control: Ability to activate a compatible dust extractor or vacuum directly from the tool
- Variable speed trigger for precision and accuracy
- Forward & reverse capable for ease of use when drilling
- 12-position chisel adjustment allows the user to adjust the bit for operating versatility
- Ergonomic chisel lock locks tool on for increased comfort and productivity when chipping
- 2-Modes: rotary hammer and hammer only
- ONE-KEY™ Compatible: ability to track and manage tools for increased productivity and investment protection
- 5 Year Tool Warranty
| Brand | Milwaukee |
|---|---|
| Date Added | Aug 9, 2026 |
| Package Length (in) | 13.74" |
| Package Width (in) | 20.20" |
| Package Height (in) | 5.47" |
| Manufacturer Part Number | 2917-20 |
| Battery System | M18™ |
| FUEL™ | Yes |
| Motor Type | POWERSTATE™ Brushless |
| Weight | 14.1 lb |
| ONE-KEY™ Enabled | Yes |
| Handle Type | Drop Motor |
| VACLINK™ Compatible | Yes |
| Chuck Size | 1-9/16" |
| Chuck Type | SDS Max |
| Warranty | 5 Year Limited Warranty |
