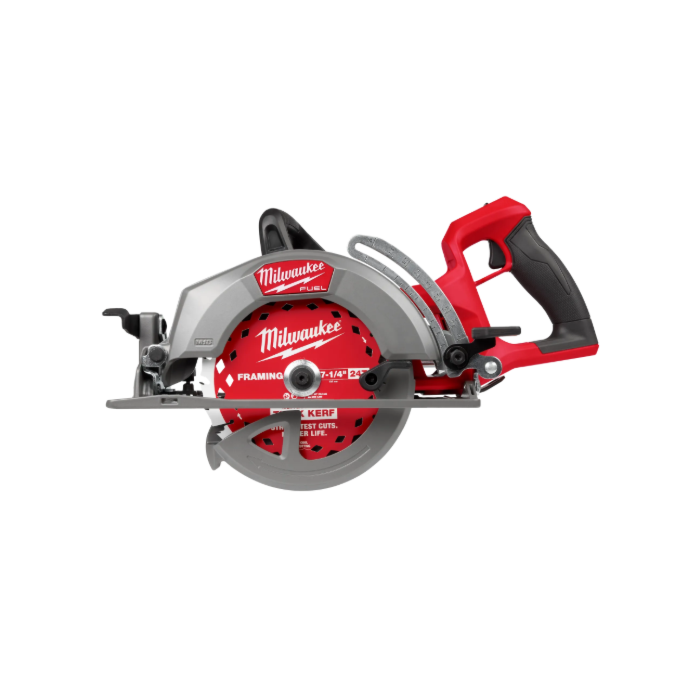

M18 FUEL 7-1/4 in. Rear Handle Circular Saw
SKU: M293020
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$299.99
Features
Specifications
Downloads
Designed for the professional carpenter, remodeler, and general contractor, the M18 FUEL™ 7-1/4" Rear Handle Circular Saw from MILWAUKEE® delivers class-leading performance. Utilizing the latest in cordless technology, this saw provides users with the power to complete more demanding applications and the cut speed to achieve greater productivity. The POWERSTATE™ Brushless Motor provides this worm drive style saw with 6,000 RPM, maintaining high speed under load, providing users the ability to complete their most demanding applications efficiently. Breakthrough advances in REDLINK PLUS™ Intelligence ensure maximum tool performance and protection from overload, overheating, and over-discharge. Paired with the M18 REDLITHIUM™ FORGE™ HD12.0 Battery, this saw provides up to 700 cuts per charge while maintaining full compatibility with all M18 REDLITHIUM™ batteries. This saw also comes with a 7-¼" 24T Thick Kerf Framing Circular Saw Blade, offering the straightest cuts and longer life. The lightweight and compact design, paired with premium ergonomics, makes this saw perfect for all-day use on the job site. For added productivity, this saw contains positive bevel detents and depth detents. A multi-sized rafter hook allows you to store the saw on different materials. Additionally, the saw has an electric blade break, rotational dust port, LED work light, and all magnesium guards and shoe, keeping you productive and providing durability to handle the toughest jobsite conditions.
- POWERSTATE™ Segmented Brushless Motor delivers the most powerful, fastest cutting circular saw for greater productivity.
- REDLINK PLUS™ Intelligence ensures maximum performance and protects from overloads, heating, and over-discharge
- Up to 700 Cuts Per Charge (M18 REDLITHIUM™ FORGE™ HD 12.0 battery)
- 2-5/8" Cut Capacity: Capability to cut 3x material in one pass
- Bevel detents at 22.5 and 45 degrees
- Depth detents at 1/2", 3/4", and 1-1/2”
- Rotational dust port and included vac adaptor
- LED light for increased accuracy and visibility
- Integrated multi-sized rafter hook for storage on different materials
- Magnesium shoe and guards for maximum durability
- Electric brake to stop blade after trigger is released
- Fully Compatible with the M18™ System, Featuring Over 250+ Tools
- Compatible with Rip Fence Kit: 49-22-1001
| Brand | Milwaukee |
|---|---|
| UPC | 045242846542 |
| Store Location (Lititz, PA) | Aisle 23, Section H3 |
| Package Length (in) | 9.56" |
| Package Width (in) | 9.29" |
| Package Height (in) | 20.55" |
| Manufacturer Part Number | 2930-20 |
| Powered Tool Power Source | Electric - Cordless |
| Cordless / Corded | Cordless |
| Saw Drive | Sidewinder Geared |
| Saw Blade Diameter | 7¼ in in |
| Blade Location | Left |
| Maximum RPM - No Load | 6300 |
| Color / Finish | Red; Silver |
| Length | 18.35 Inches |
| Width | 7.87 Inches |
| Height | 7.87 Inches |
| Net Tool Weight | 8.27 lbs |
| Weight - Battery Installed | 11.63 lbs |
| Depth Adjustment | Yes |
| Maximum Cut Depth @ 45° | 2 in |
| Maximum Cut Depth @ 90° | 2.625 in |
| Bevel Capacity (°) | 57 |
| Bevel Stop | Yes |
| Variable Speed | No |
| Electronic Speed Control | No |
| Electric Motor Brake | Yes |
| External Motor Brush Access | Brushless Motor |
| Shoe Material | Cast Magnesium |
| Fence Included | No |
| Tool-Less Blade Changing | No |
| Blade Wrench Included | Yes - Stored on Tool |
| Integrated Laser Guide | No |
| Integrated Rafter Hook | Yes |
| Integrated Work Light | Yes |
| Dust Blower | Yes |
| Dust Collection | No |
| Dust Port | Yes |
| Main Handle Type | Rear |
| Spindle Lock | Yes |
| Blades Included | 1 |
| Number of Batteries Required | 1 |
| Battery Composition | Lithium-Ion (Li-ion) |
| Battery Voltage (V) | 18 |
| Charger Included | No |
| Product Storage Included | No Case Included |
| CSA Certified | No |
| ETL Listed | No |
| UL Listed | Yes |
| Package Contents | M18 FUEL™ 7-1/4" Rear Handle Circular Saw - Tool Only (2930-20), Blade, Wrench |
| RPM | 6000 |
| Blade size | 7-1/4" |
| Battery System | M18™ |
| Weight Excluding Battery | 8.27 lb |
| Motor Type | POWERSTATE™ Brushless |
| Warranty | 5 Year Limited Warranty |
| Cut Capacity | 2-5/8" |
