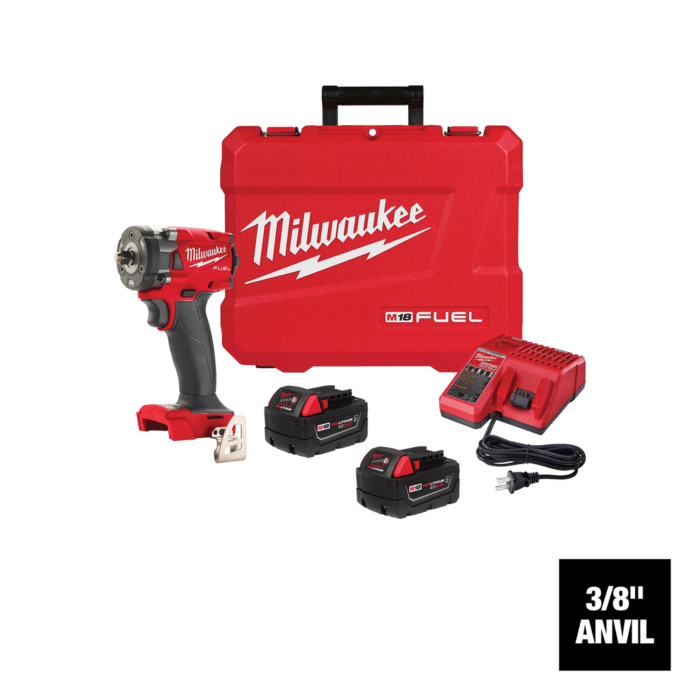

The MILWAUKEE® M18 FUEL™ 3/8" Compact Impact Wrench w/ Friction Ring is the most compact in its class, delivering users the most access in tight spaces, up to 250 ft-lbs of nut-busting torque, and maximum workspace visibility. This battery-powered impact wrench measures only 4.8" in length with a POWERSTATE™ Brushless motor to provide the power to remove stubborn fasteners, even in confined spaces. The 3/8" Compact Impact Wrench has tri-LEDs that surround the anvil to deliver users brighter light with fewer shadows. 4-Mode DRIVE CONTROL™ offers greater precision with a range of pre-set RPM and IPM levels, selectable from a single button on the tool. By selecting Mode 4, AUTO SHUT-OFF™ control applies no more than 20 ft-lbs of torque for hand-tight fastening applications to prevent overtightening. Mode 4 also features Bolt Removal Control delivers full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops. MILWAUKEE® REDLINK PLUS™ Intelligence electronics make these controls possible while ensuring maximum performance, protecting the tool against overloads, over-heating, and over-discharge. MILWAUKEE® M18 REDLITHIUM™ XC5.0 Extended Capacity Resistant Battery Packs included provide increased protection against oils, greases, and solvents.
- Friction ring (hog ring) ensures quick and easy socket changes
- The POWERSTATE™ Brushless motor delivers up to 250 ft-lbs. of nut-busting torque
- 4-Mode DRIVE CONTROL™ provides greater control over output speed and power. Includes auto shut-off and bolt-removal mode
- Bolt Removal control delivers full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops
- Mode 1 IPMs: 0-1,000; Mode 2 IPMs: 0-2,400; Mode 3 IPMs: 0-3,500; Mode 4 IPMs: 0-3,500
- Works in up to to 69kV environments
- 4.8" in length provides most access in tight spaces
- Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows
- AUTO SHUT-OFF™ control prevents over tightening and increases productivity by applying no more than 20 ft-lbs. of torque
- Mode 1 RPMs: 0-800; Mode 2 RPMs: 0-1,650; Mode 3 RPMs: 0-2,400; Mode 4 RPMs: 0-2,400
- REDLINK PLUS™ Intelligence ensures maximum performance and protects from overloads, heating and over-discharge
- Compatible with all M18™ batteries & Chargers
| Brand | Milwaukee |
|---|---|
| UPC | 045242778874 |
| Store Location (Lititz, PA) | Aisle 23, Section I1 |
| Package Length (in) | 5.60" |
| Package Width (in) | 14.60" |
| Package Height (in) | 13.00" |
| Manufacturer Part Number | 2854-22R |
| Anvil Size | 3/8 in |
| Anvil Type | Friction Ring |
| Badge Branding | FUEL™ |
| Battery Amp Hour (Ah) | 5 |
| Battery Charger Input Voltage | 18 |
| Battery System | M18™ |
| Brushless Motor | Yes |
| Chuck Size | Not Applicable in |
| Chuck Type | Not Applicable |
| Color Finish | Red |
| Depth | 4.8 Inches |
| DRIVE CONTROL | 4-Mode w/ Auto Shut-Off Mode & Bolt Removal Mode |
| Drive Size | 3/8 in |
| Fastening Torque | 250 |
| FUEL | Yes |
| Impacts Per Minute Range (IPM) | 0 - 3,500 |
| Material | Metal |
| Maximum RPM | 2400 |
| Maximum Torque (ft-lbs) | 250 |
| Motor Type | Brushless |
| ONE-KEY Enabled | No |
| Power Source | Cordless |
| Power Tool Branding | FUEL™ |
| Rotations Per Minute Range (RPM) | 0 - 2,400 |
| Voltage | 18 |
| Weight - Battery Installed (lb) | 3.9 |
| Weight Excluding Battery (lb) | 2.4 |
| Wrench Type | Compact |
| Country of Origin | Vietnam |
