Milwaukee

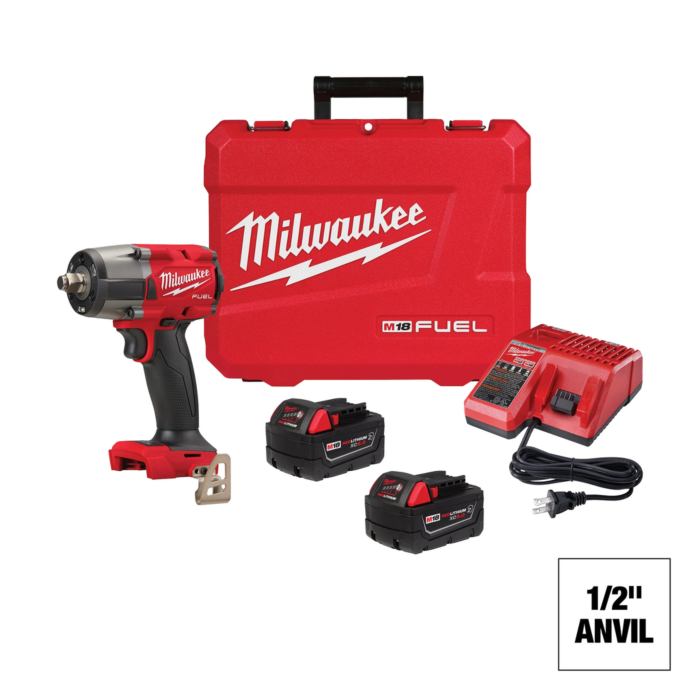

M18 FUEL™ 1/2 " Mid-Torque Impact Wrench w/ Friction Ring Kit

SKU: M296222R
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 4 in stock
Features chevron-down chevron-up
The MILWAUKEE® M18 FUEL™ 1/2" Mid-Torque Impact Wrench w/ Friction Ring Kit delivers the best power to weight ratio, most access in tight spaces, and faster removal speed. It provides 650 ft-lbs of nut-busting torque and only weighs 5.1 lbs, making it extremely versatile, capable of performing a wide variety of applications. Its POWERSTATE™ Brushless Motor generates the power needed to quickly perform many tasks, such as removing large bolts or lug nuts. Milwaukee 1/2" Impact Wrench is the most compact in its class, giving users access to stubborn fasteners in spaces where larger impact wrenches can’t fit without needing to disassemble components to reach bolts. Tri-LEDs surround the anvil to deliver brighter light with fewer shadows. 4-Mode DRIVE CONTROL™ offers greater precision with a range of pre-set RPM and IPM levels, selectable from a single button on the tool. By selecting Mode 4, AUTO SHUT-OFF™ control applies no more than 35 ft-lbs of torque for hand-tight fastening applications to prevent overtightening. Mode 4 also features Bolt Removal Control that delivers users full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops. MILWAUKEE® REDLINK PLUS™ Intelligence ensures maximum performance, protecting the tool against overloads, over-heating, and over-discharge. MILWAUKEE® M18 REDLITHIUM™ XC5.0 Extended Capacity Resistant Battery Packs included provide increased protection against oils, greases, and solvents.
  • Friction ring (hog ring) ensures quick and easy socket changes
  • Faster Removal speed provides increased user productivity
  • 4-Mode DRIVE CONTROL™ provides greater control over output speed and power. Includes auto shut-off and bolt-removal control
  • Bolt Removal control delivers full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops
  • Mode 1 IPMs: 0-900; Mode 2 IPMs: 0-2,100; Mode 3 IPMs: 0-3,100; Mode 4 IPMs: 0-3,100
  • Works in up to to 69kV environments
  • 6.0" in length provides most access in tight spaces
  • Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows
  • AUTO SHUT-OFF™ control applies no more than 35 ft-lbs of torque for hand-tight fastening applications to prevent overtightening
  • Mode 1 RPMs: 0-1,250; Mode 2 RPMs: 0-1,950; Mode 3 RPMs: 0-2,575; Mode 4 RPMs: 0-2,575
  • REDLINK PLUS™ Intelligence ensures maximum performance and protects from overloads, heating and over-discharge
  • Compatible with all M18™ batteries & Chargers
Specifications chevron-down chevron-up
Brand Milwaukee
UPC 045242779000
Store Location (Lititz, PA) Aisle 23, Section I1
Package Length (in) 5.80"
Package Width (in) 16.00"
Package Height (in) 14.20"
Manufacturer Part Number 2962-22R
Anvil Size 1/2 in
Anvil Type Friction Ring
Badge Branding FUEL™
Battery Amp Hour (Ah) 5
Battery Charger Input Voltage 18
Battery System M18™
Brushless Motor Yes
Chuck Size Not Applicable in
Chuck Type Not Applicable
Color Finish Red
Depth 6 Inches
DRIVE CONTROL 4-Mode w/ Auto Shut-Off Mode & Bolt Removal Mode
Drive Size 1/2 in
Fastening Torque 550
FUEL Yes
Impacts Per Minute Range (IPM) 0 - 3,100
Material Metal
Maximum RPM 2575
Maximum Torque (ft-lbs) 650
Motor Type POWERSTATE™ Brushless
ONE-KEY Enabled No
Power Source Cordless
Power Tool Branding FUEL™
Rotations Per Minute Range (RPM) 0 - 2,575
Voltage 18
Weight - Battery Installed (lb) 5.1
Weight Excluding Battery (lb) 3.9
Wrench Type High Torque
Country of Origin Vietnam
