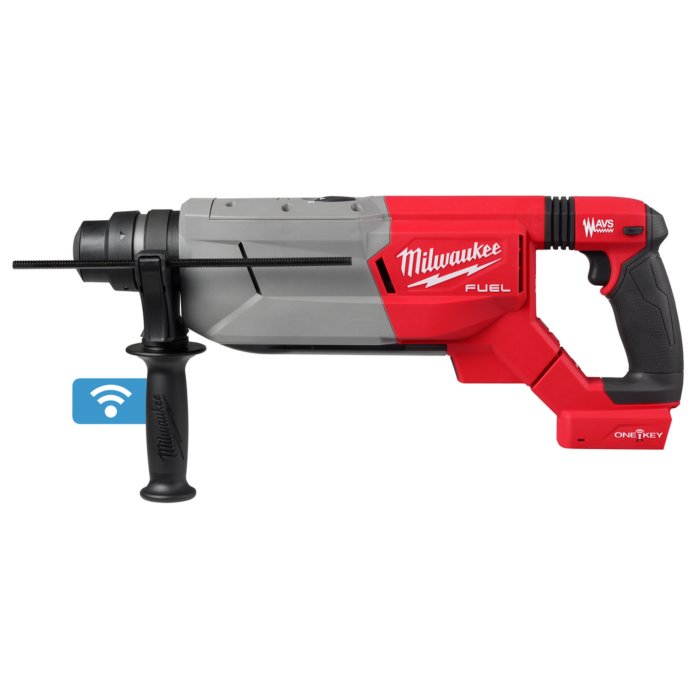

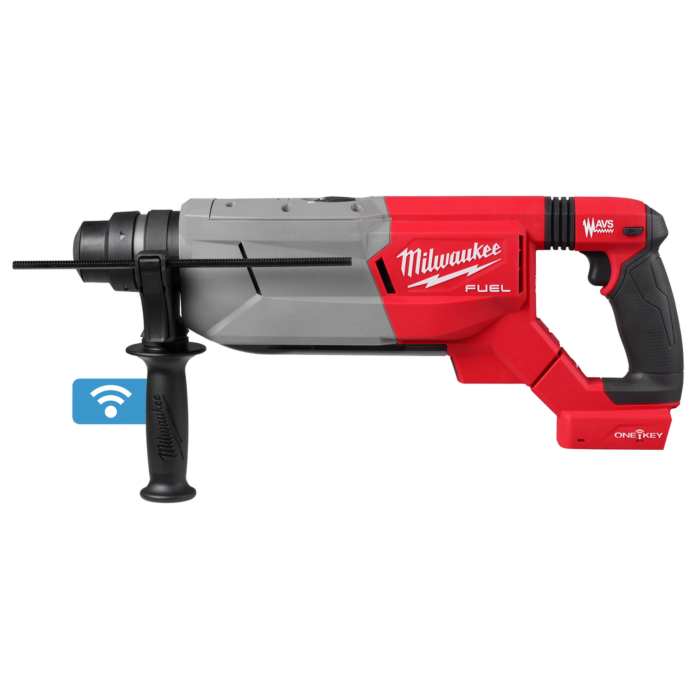

MILWAUKEE® M18 FUEL™ 1-1/4” SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™ delivers on the drill speeds normally associated with SDS Max rotary hammers. The hammer drills Faster ¾” Holes and is Lighter Versus SDS Max rotary hammers, includes AUTOSTOP™ Control for Enhanced Safety, and can drill up to (25) ¾” x 4” Holes per Charge when paired with MILWAUKEE® M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery. The in-line D-Handle design allows access in tight spaces and provides superior balance and ergonomics for downward drilling. POWERSTATE™ Brushless Motor delivers 3.65 ft-lbs of impact energy, 810 RPM, and 4,650 BPM, providing the speed and power for the most demanding applications. This hammer provides maximum control and enhanced safety with the AUTOSTOP™ Kickback Control, preventing over-rotation if the tool binds up while drilling in concrete with rebar or hard aggregate. This tool is compatible with MILWAUKEE® M18 FUEL™ HAMMERVAC™ 1-1/4” Dedicated Dust Extractor providing on-board OSHA Table One compliance. The AVS Anti-Vibration System reduces vibration for maximum comfort. The cordless rotary hammer is compatible with ONE-KEY™ to track the tool’s location and manage inventory. The REDLINK PLUS™ intelligence tool technology ensures maximum rotary hammer performance and protects it from overload, overheating, and over-discharge. The M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery delivers 50% more power while running 50% cooler than the M18™ REDLITHIUM™ XC batteries (not included).
- POWERSTATE™ Brushless Motor delivers maximum power and long motor life
- REDLINK PLUS™ Intelligence: Integrates full-circle communication between tool, battery and charger to protect from overloading, overheating, and over-discharging.
- The M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery Pack provides 50% more power and runs 50% cooler vs M18™ REDLITHIUM™ XC battery packs
- 3.65 ft-lbs Impact Energy
- ONE-KEY™ technology allows for tracking, tool security, and inventory management
- AVS Anti-Vibration System: Minimizes vibration for maximum comfort
- 3 Mode: Rotary Hammer, Hammer Only, Rotary Only
- 810 RPM
- 4,650 BPM
- Pairs with HAMMERVAC™ 1-1/4” Dedicated Dust Extractor (2916-DE)
- Part of the M18™ system, featuring over 200+ solutions
| Brand | Milwaukee |
|---|---|
| UPC | 045242607358 |
| Store Location (Lititz, PA) | Aisle 28, Section S5 |
| Package Length (in) | 22.10" |
| Package Width (in) | 12.10" |
| Package Height (in) | 6.80" |
| Manufacturer Part Number | 2916-20 |
| Badge Branding | FUEL™ |
| Battery Charger Input Voltage | 18 |
| Battery System | M18™ |
| Blows Per Minute (bpm) | 4650 |
| Brushless Motor | Yes |
| Chuck Size | 1-1/4 in |
| Chuck Type | SDS Plus |
| Color Finish | Black;Gray;Red |
| Depth | 18.3 Inches |
| Dust Extractor Included | No |
| FUEL | Yes |
| Handle Type | D-Handle |
| Material | Metal |
| Maximum RPM | 810 |
| Motor Type | POWERSTATE™ Brushless |
| ONE-KEY Enabled | Yes |
| Power Source | Cordless |
| Power Tool Branding | FUEL™ |
| Rotary Hammer Size | 1-1/4 in |
| Switch Type | Trigger |
| Voltage | 18 |
| Weight - Battery Installed (lb) | 11.5 |
| Weight Excluding Battery (lb) | 9.2 |
| Country of Origin | China |
