Milwaukee

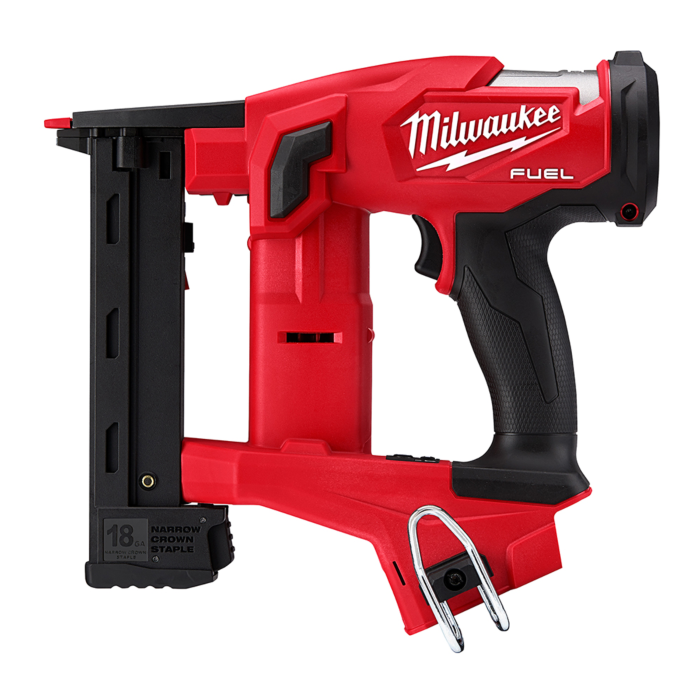

M18 FUEL™ 18 Gauge 1/4 in. Narrow Crown Stapler (Bare Tool)

SKU: M274920
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 10 in stock

Optional Accessories

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
StealthMounts Milwaukee Battery Mounts M18 6pk
StealthMounts
$24.99
BMMW18RED6
StealthMounts Milwaukee Tool Mounts M18 4pk
StealthMounts
$24.99
TMMW18RED4
Features chevron-down chevron-up
The M18 FUEL™ 18ga 1/4” Narrow Crown Stapler delivers peak productivity on your jobsite, providing you with unmatched stapling performance without the hassle of a compressor and hose. The nitrogen air spring mechanism gives the stapler the power to consistently sink staples to the proper depth in hard materials. This cordless stapler also has tool-free depth adjustment to drive staples in soft materials without blowing through. You can choose from sequential and contact actuation firing modes to meet your application’s needs. The combination of the POWERSTATE™ brushless motor and REDLINK PLUS™ Intelligence provides you with a staple gun that delivers an unmatched fire rate with zero ramp-up time. This battery-powered narrow crown stapler is compact and lightweight, giving you better access into tight spaces and limiting your fatigue throughout the day. The MILWAUKEE® M18 FUEL™ 18ga 1/4” Narrow Crown Stapler delivers the pneumatic performance that professional carpenters and remodelers expect with the freedom and convenience of a cordless tool. The tool includes two work contact tips and a reversible belt hook.
  • Adjustable power for working with soft & hard materials
  • Compact, lightweight size with zero ramp-up time
  • Tool-free drive depth adjustment
  • Sequential and contact actuation firing modes
  • Dry fire lockout
  • No gas cartridge required
  • 2 work contact tips included
  • Reversible belt hook included
  • ON/OFF power button
  • Fully compatible with the M18™ system, featuring over 200+ tools
Specifications chevron-down chevron-up
Brand Milwaukee
UPC 045242543038
Store Location (Lititz, PA) Aisle 28, Section N7
Package Length (in) 13.80"
Package Width (in) 11.30"
Package Height (in) 5.30"
Manufacturer Part Number 2749-20
Country of Origin Vietnam
Powered Tool Power Source Electric
Cordless/Corded Cordless
Nailer/Stapler Design Stapler
Nailer/Stapler Power Cordless
Staple Use Construction
Fastener Gauge Range 18 Gauge
Fastener Length Range 0.375" - 1.5"
Fasteners Used Staples
Color/Finish Red/Black
Crown Size Range 1/4"
Depth Control Yes
Power Source Electric
Housing Material Reinforced Nylon
Length 11"
Height 11.5"
Fastener Format Strip
Case Included No
Number of Batteries Required 1
Battery Composition Lithium-Ion (Li-ion)
Battery Voltage 18V
Charger Included No
Net Tool Weight 6.4 lbs
Weight - Battery Installed 6.4 lbs
Weight - Excluding Battery 5.4 lbs
CSA Certified No
ETL Listed No
UL Listed Yes
Package Contents (1) M18 FUEL 18 GAUGE 1/4" Narrow Crown Stapler, (2) Work Contact Tips, (1) Reversible Belt Hook
