Milwaukee

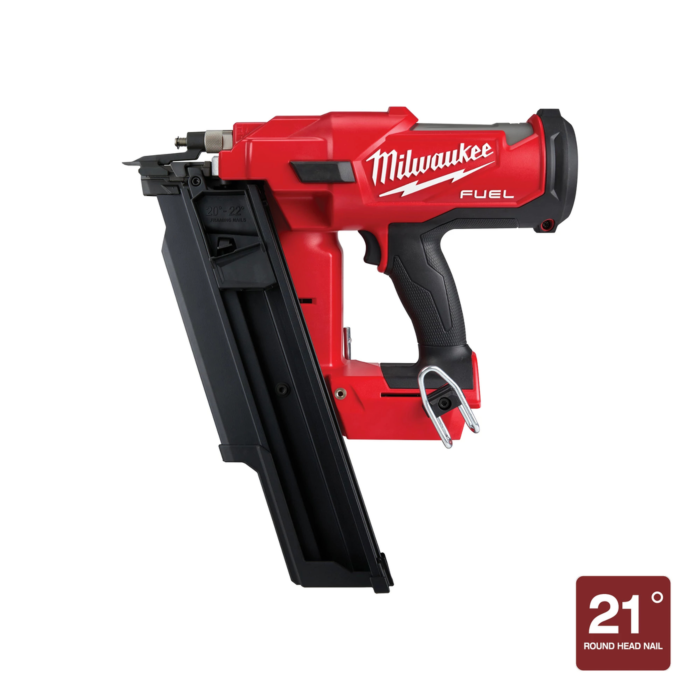

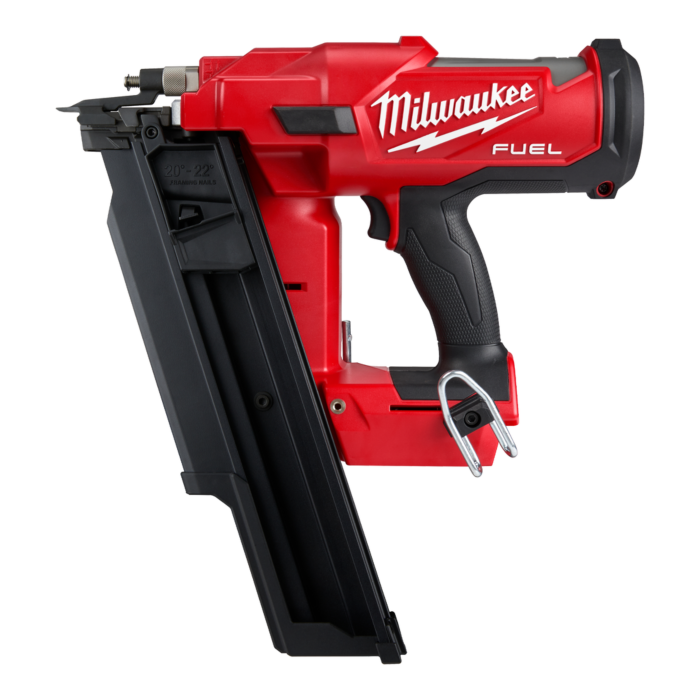

M18 FUEL™ 21 Degree Framing Nailer

SKU: M274420
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 7 in stock

Optional Accessories

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
StealthMounts Milwaukee Battery Mounts M18 6pk
StealthMounts
$24.99
BMMW18RED6
StealthMounts Milwaukee Tool Mounts M18 4pk
StealthMounts
$24.99
TMMW18RED4
Milwaukee 21 Degree Framing Nailer Extended Capacity Magazine
Milwaukee
$129.99
M48082744
Features chevron-down chevron-up
The MILWAUKEE® M18 FUEL™ 21 Degree Framing Nailer sets the new standard for cordless framing nailers. It has a nitrogen spring mechanism, POWERSTATE™ brushless motor, and REDLINK™ Intelligence, providing pneumatic performance and cordless convenience. The framing nailer can sink full round head nails into dense engineered lumber to tackle the most demanding framing applications. To increase productivity and efficiency, the framing gun fires 3 nails per second with zero ramp-up time, firing a nail as soon as the trigger is pulled. The cordless framing nailer uses only Milwaukee's REDLITHIUM™ Batteries (not included) and sealed compressed nitrogen to drive each nail, eliminating the cost of gas cartridges and reducing associated maintenance. The M18 FUEL™ 21 Degree Framing Nailer delivers pneumatic performance and durability that professional carpenters and remodelers expect, without the hassle of a compressor and hose or gas cartridge.
  • REDLITHIUM™ battery technology: superior pack construction, electronics and performance deliver more work per charge and more work over pack life than any battery on the market
  • REDLINK™ PLUS intelligence: provides optimized performance and overload protection using total system communication between tool, battery and charger
  • POWERSTATE™ Brushless Motor delivers longer life and higher performance
  • Pivoting Rafter Hook
  • Belt Hook
  • Tool Free Drive Depth Adjustment
  • On Board Hex Key Storage
  • No-Mar Tip Cover
  • On/Off Power Button
  • Sequential and Contact Actuation Firing Modes
  • Power to Nail Engineered Lumber
  • Fires 3 Nails Per Second
  • No Gas Cartridge Required - Completely Battery Operated
  • Zero Ramp Up Time
  • Dry Fire Lockout
Specifications chevron-down chevron-up
Brand Milwaukee
UPC 045242537280
Store Location (Lititz, PA) Aisle 28, Section N7
Package Length (in) 16.40"
Package Width (in) 15.80"
Package Height (in) 6.40"
Manufacturer Part Number 2744-20
Badge Branding FUEL™
Battery System M18™
Brushless Motor Yes
Color Finish Black;Red
Depth 14.1 Inches
FUEL Yes
Handle Type Pistol Grip
Material Metal
Motor Type POWERSTATE™ Brushless
Nailer Type Framing
Number of Batteries Required 1
ONE-KEY Enabled No
Power Source Cordless
Power Tool Branding FUEL™
Voltage 18
Weight - Battery Installed (lb) 11.6
Weight Excluding Battery (lb) 10.1
Country of Origin Vietnam
