Features
Specifications

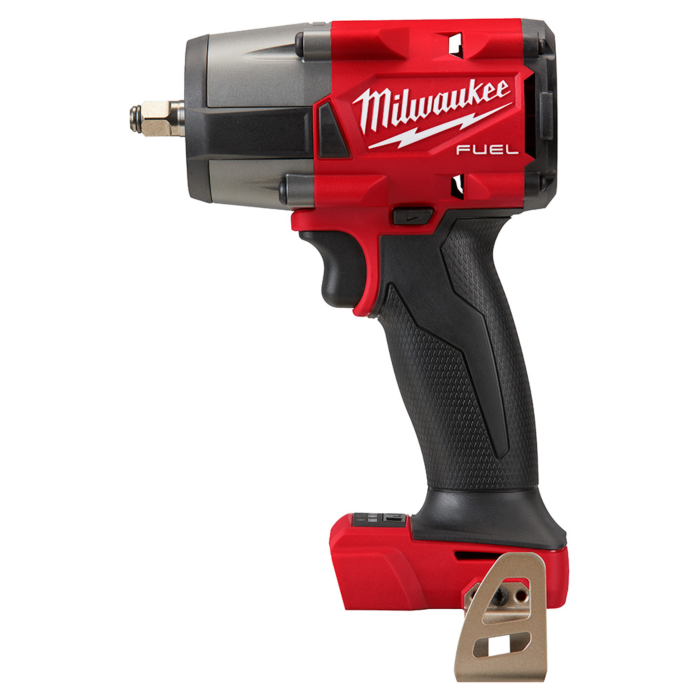

The MILWAUKEE® M18 FUEL™ 3/8" Mid-Torque Impact Wrench with Friction Ring delivers an excellent power-to-weight ratio and faster removal speed with 600 ft-lbs of nut-busting torque at only 5.0 lbs. It is the most compact wrench in its class, using a POWERSTATE™ brushless motor to provide superior access to stubborn fasteners in tight spaces. Precision is managed through 4-Mode DRIVE CONTROL™, which includes Mode 4's AUTO SHUT-OFF™ (limiting torque to 35 ft-lbs for hand-tight fastening) and Bolt Removal Control (decreasing RPM after a bolt is loosened). The tool also features tri-LEDs for improved visibility and is protected by REDLINK PLUS™ Intelligence to ensure maximum performance and guard against overloads. It is part of the M18™ system (battery sold separately).
- Best power-to-weight ratio is offered as the tool provides 600 ft-lbs. of nut-busting torque at only 5 lbs
- Compact size provides most access in tight spaces
- Faster removal speed provides increased user productivity
- Tri-LEDs deliver high definition lighting to increase workspace visibility
- 4-Mode DRIVE CONTROL™ provides greater control over output speed and power
- Auto shut-off mode prevents overtightening and increases productivity by applying no more than 35 ft-lbs. of torque
- Bolt removal mode offers more control after bolt breakaway as RPMs drastically slow down once the bolt is loosened
- Mode 1 RPMs: 0-1,250; Mode 2 RPMs: 0-1,950; Mode 3 RPMs: 0-2,575; Mode 4 RPMs: 0-2,575
- Mode 1 IPMs: 0-900; Mode 2 IPMs: 0-2,100; Mode 3 IPMs: 0-3,100; Mode 4 IPMs: 0-3,100
- REDLINK PLUS™ Intelligence ensures maximum performance and protects from overloads, overheating, and overdischarge
- Works in up to to 69kV environments
- Compatible with all M18™ batteries & chargers
| Brand | Milwaukee |
|---|---|
| UPC | 045242568901 |
| Store Location (Lititz, PA) | Aisle 23, Section H2 |
| Package Length (in) | 3.85" |
| Package Width (in) | 7.35" |
| Package Height (in) | 10.10" |
| Manufacturer Part Number | 2960-20 |
| Country of Origin | Vietnam |
| Powered Tool Power Source | Electric |
| Cordless/Corded | Cordless |
| Impact Wrench Drive Size | 3/8" |
| Impacts per Minute | 3500 IPM |
| Maximum Torque | 600 ft-lbs |
| Variable Speed | Yes |
| Maximum RPM | 2575 RPM |
| Length | 6" |
| Case Included | No |
| Color/Finish | Red/Black |
| Material | Aluminum |
| Forward/Reverse Rocker Switch | Yes |
| Net Tool Weight | 3.5 lbs |
| Number of Batteries Required | 1 |
| Battery Voltage | 18V |
| Battery Composition | Lithium-Ion (Li-ion) |
| Charger Included | No |
| CSA Certified | Yes |
| ETL Listed | No |
| UL Listed | Yes |
