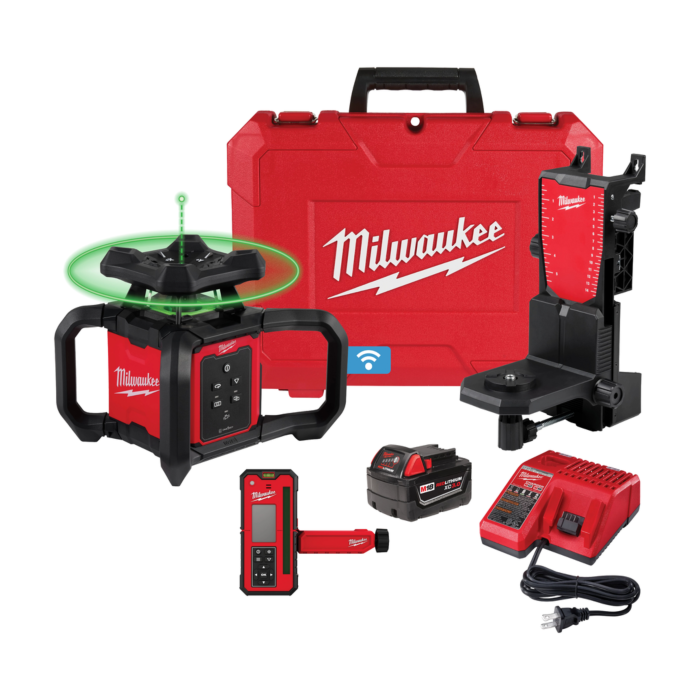

The MILWAUKEE® M18™ Green Interior Rotary Laser Level Kit features impact protection and a simplified setup. Designed for harsh jobsite conditions, we ensure your laser is protected, withstanding up to a 1.5M drop and a 2M Tripod tip. The all-in-one Remote and Receiver features Center-Find, for easy, fast, and automatic long-range alignment. This remote/receiver detects beams up to 1,000ft and features simplified menu navigation with a user-friendly design. The amplified rare earth magnets provide the remote/receiver with a strong hold onto steel studs. The included Wall Mount provides the fastest mounting with a single dial setup, the wall mount can easily mount lasers on horizontal or vertical materials. The M18™ Green Interior Rotary Laser is a part of the M18™ System, fully compatible with over 200+ solutions.
- Withstands 1.5m Drops – Reinforced Housing
- Automatic Alignment - Center Find
- Simplified Menu Navigation
- 1/16" Horizontal Accuracy 1/8" Vertical Accuracy
- 1,000 Ft. (Diameter) Working Range w/Receiver
- 300, 600, 1,200 RPM
- Sweep Mode – Variable Scan Angles
- Vertical Plumb Dot
- Laser Remote/Receiver Reduces Interference - Strobe Light Protection
- Laser Remote/Receiver Features Easy Read Backlit Display
- IP 66 Rated Protection
- Low/High Bump Sensitivity Mode
- ONE-KEY™ Tracking and Tool Management
- Fits All M18™ Batteries
- 5 Year Tool Warranty, 3 Year Battery Warranty, 2 Year Remote/Receiver Warranty, and 3 Year Wall Mount Warranty
Brand | Milwaukee |
---|---|
UPC | 045242695935 |
Store Location (Lititz, PA) | Aisle 25, Section I2 |
Package Length (in) | 20.30" |
Package Width (in) | 11.65" |
Package Height (in) | 25.80" |
Manufacturer Part Number | 3702-21 |
Accessories Included | Yes |
Accurate to Within __ in per 100 ft | 0.0625 |
Automatic Operation | No |
Battery Size | 18 Volt |
Battery Voltage (V) | 18 |
Color / Finish | Black, Red |
Material | Polycarbonate; Nylon; Glass Filled Nylon |
Wireless Remote Control Included | Yes |
Indoor / Outdoor | Indoor |
Laser Level Functions | Plumb & Level |
Laser Level Mounting Method | Wall or Tripod |
Laser Level Type | Rotary |
LED Display | Yes |
Legs Included | No |
Maximum Distance (ft) | 1000 |
Projects Beam 360 degrees | Yes |
Self Leveling | Yes |
Tripod Included | No |
Weight | 7.50 lbs |
Case Included | Yes |
Case Material | Polycarbonate |
Package Contents | (1) M18 Green Interior Rotary Laser, (1) Laser Remote/Receiver, (1) Wall Mount, (1) Remote/Receiver Clamp, (1) M18 XC 3.0 Battery, (1) M18 & M12 Charger, (1) Carrying Case |
Number of Vials Measuring Level | 2 |
Number of Vials Measuring Plumb | 1 |
