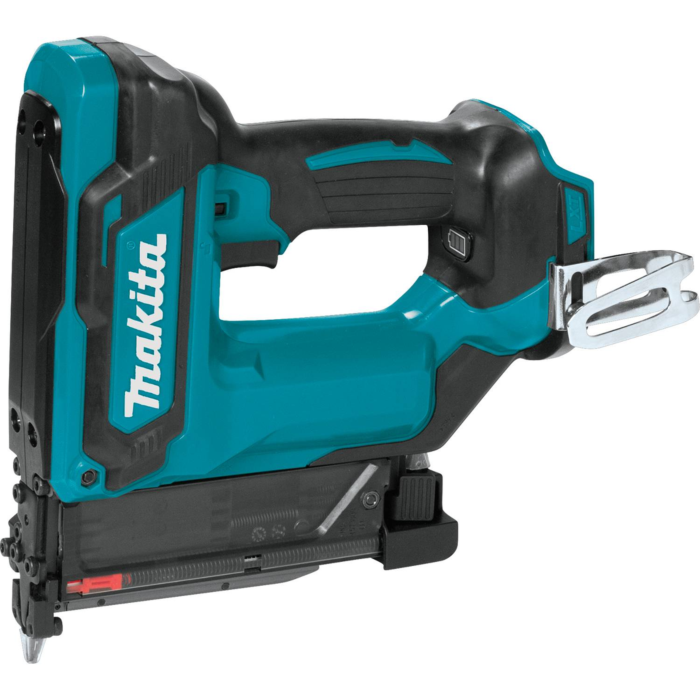

The Makita 18V LXT® Lithium-Ion Cordless Pin Nailer, 23 Ga. (model XTP02Z, tool only), is a hose-free solution for installing casings, decorative trim, molding and baseboards. The XTP02Z is compact and powerful, and drives six different pin nail lengths (5/8”, 11/16", ¾”, 1", 1-3/16", 1-3/8") with a magazine capacity of up to 120 pins. Using the 18V LXT 5.0Ah battery, the XTP02Z will drive up to 5,300 pins on a single charge. It’s part of Makita’s expanding 18V Lithium-Ion system, the world’s largest cordless tool system powered by 18V Lithium-Ion slide-style batteries. Makita 18V Lithium-Ion batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT® and Compact Lithium-Ion batteries with the star symbol on the battery indicating Star Protection inside.
- CONVENIENCE - Built-in L.E.D. light illuminates the work surface
- Hex Wrench 3 (783201-2)
- Built-in L.E.D. light illuminates the work area
- Belt Clip (346449-3)
- Cordless for increased convenience; eliminates the need for a compressor and air hose
- Narrow nose design allows easy nailing access in confined areas
- Weighs only 4.9 lbs. with battery (battery not included) for reduced operator fatigue
- ACCURACY - Contact trigger for improved accuracy and precision
- Trigger lock button for operator convenience
- Drives 6 different lengths, 5/8", 11/16", 3/4", 1", 1-3/16" and 1-3/8", of 23 gauge pin nails (tool does not work with 1-1/4" pin nails)
- Compatible with Makita 18V Lithium-Ion batteries with a Star symbol (battery sold separately)
- "Tool-less" depth adjustment for precise flush and countersink finish
- 2 Nose No-Mar Tip, XTP02 (424955-9)
- Battery and charger sold separately
- 3-stage L.E.D. gauge indicates battery charge level
- Rubberized soft grip handle provides increased comfort on the job
- Refined firing mechanism reduces recoil; reduces force required on the work surface when driving pin nails
- INCLUDES - Safety glasses, no-mar tips (2), belt hook, hex wrench (battery and charger not included)
- DESIGN - 3-stage L.E.D. gauge indicates battery charge level
- PRECISION - "Tool-less" depth adjustment for precise flush and countersink finish
- Compact and ergonomic design at only 10-1/8" long
- Ergonomically designed handle with rubberized soft grip provides increased comfort
- Magazine capacity up to 120 pin nails
- Anti-dry fire mechanism engineered to prevent driving blanks and damage to work surface
- Rubber bumpers protect the tool and surface from damage
- Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
- Safety Glasses (195246-2)
- Contact trigger for improved accuracy and precision
- Weighs only 4.9 lbs. with battery for reduced operator fatigue (battery not included)
- 3-year limited warranty
- Only use genuine Makita batteries and chargers
- Reversible tool hook allows the tool to remain close
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
| Brand | Makita |
|---|---|
| UPC | 088381835404 |
| Store Location (Lititz, PA) | Aisle 28, Section M4 |
| Package Length (in) | 11.40" |
| Package Width (in) | 8.60" |
| Package Height (in) | 3.60" |
| Manufacturer Part Number | XTP02Z |
| Country of Origin | Japan |
| Tool-less depth adjustment | Yes |
| Dimensions (LxWxH) | 10-1/8" x 3-1/8" x 8-7/8" |
| Shipping Weight | 4.63 lbs. |
| UPC Code | 088381-835404 |
| Battery | 18V LXT® Lithium-Ion |
| Nailer Type | Pin Nailer |
| Maximum Magazine Capacity | 120 |
| Nail Size | 5/8", 11/16", ¾", 1", 1-3/16", 1-3/8" (23 ga.) |
| Fastening category | Pin |
| Form Factor (LXT) | 18V LXT® |
| LED light | Yes |
| Motor Type | Brushed |
| Net Weight (with battery) | 5.1 lbs. |
| Power Type | Cordless |
