Makita

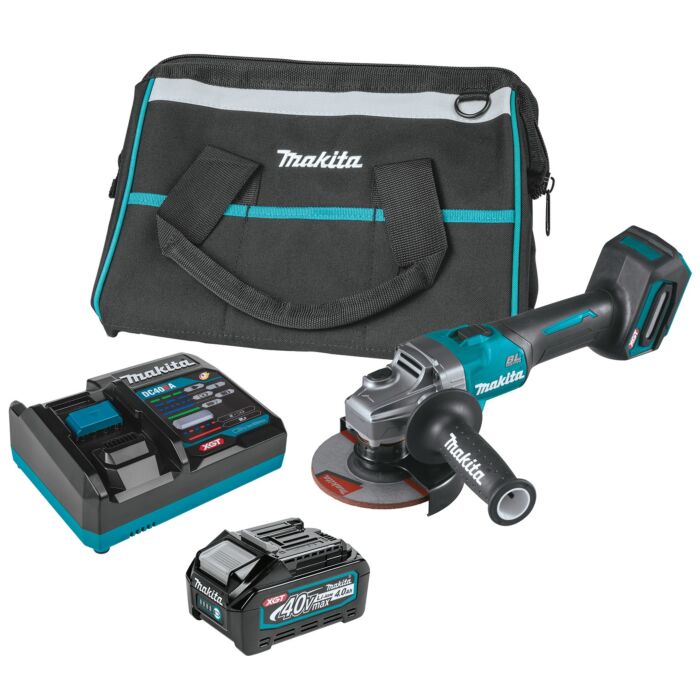

40V max XGT® Brushless Cordless 4-1/2” / 5" Angle Grinder Kit, with Electric Brake (4.0Ah)

SKU: GAG01M1
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 4 in stock
Features chevron-down chevron-up
The 40V max XGT® Brushless Cordless 4-1/2" / 5” Cut-Off/Angle Grinder with Electric Brake (GAG01M1) delivers corded grinding performance without the cord for the most demanding applications. It's powered by a Makita-built brushless motor which delivers 8,500 RPM for heavy-load applications and increased power and speed. The GAG01M1 offers up to 60% faster cutting speed when cutting #5 (5/8”) rebar. It is ideal for grinding and cutting a wide range of materials including tile, concrete, pipe, conduit, and more. An electric current limiter helps protect the motor from overload in high-torque applications. Additional features include an electric brake that stops the grinding or cut-off wheel in 2 seconds or less and Active Feedback-sensing Technology (AFT®) that turns the motor off if rotation of the wheel is forced to a stop. A slide switch with lock-on is convenient, while quick guard rotation provides tool-less adjustments for increased productivity. Anti-restart protection is engineered to prevent motor start-up when the battery is inserted while the slide switch is locked on. A soft start suppresses start-up reaction and provides smooth start-ups. Wire mesh intake covers are engineered to prevent debris from entering the motor. The GAG01M1 is also equipped with Makita's Extreme Protection Technology (XPT™), a series of protective seals inside the tool. XPT is designed to improve a tool’s operation in harsh conditions by channeling water and dust from key internal components. Reinforced metal gear housing provides additional durability on the job site. XGT is a system of equipment, tools, batteries and chargers utilizing 40v max lithium-ion batteries. XGT is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart and outlast the rest.
  • The XGT® Rapid Charger’s built-in chip thoroughly communicates during the charging process to control current, voltage, and temperature for more efficient charging
  • POWER - 13 AMP corded power
  • Compact at only 16-1/8" long; ideal for tight spaces
  • OUTSMART: Electric brake stops the grinding or cut-off wheel in 2 seconds or less for maximum productivity
  • Only use genuine Makita batteries and chargers
  • 40V max XGT® Rapid Optimum Charger (DC40RA)
  • Slide switch with lock-on for operator convenience
  • The digital communication within XGT® actively monitors and protects against overload, over-discharge and overheating
  • The XGT® Rapid Charger with dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging
  • 40V max XGT® Lithium-Ion 4.0Ah Battery (BL4040B) reaches a full charge in 45 minutes or less
  • Makita-built brushless motor along with 40V max XGT® battery combine to deliver powerful grinding and up to 60% faster cutting speed*
  • XGT® Batteries feature rigid rails with impact-resistant construction to secure the battery to the tool during high-demand applications
  • Lock Nut Wrench (782424-9)
  • Spiral bevel gears for smoother rotations and a more efficient transfer of energy
  • Electric brake stops the grinding or cut-off wheel in 2 seconds or less for maximum productivity
  • 5" x 1/4" x 7/8" INOX Grinding Wheel, 36 Grit (A-95962)
  • PRODUCTIVITY - Electric brake stops the grinding or cut-off wheel in 2 seconds or less for maximum productivity
  • Side Handle
  • 40V max XGT® 4.0Ah Battery (BL4040)
  • The XGT® Rapid Charger’s digital display indicates battery charge level (-80%, +80%, 100%)
  • Anti-restart protection engineered to prevent motor start up when battery is inserted with switch locked on
  • OUTLAST: Electronic current limiter helps protect the motor from overload in high torque application
  • Electronic current limiter helps protect the motor from overload in high torque application
  • PERFORMANCE - Makita-built brushless motor along with 40V max XGT® battery delivers up to 60% faster cutting speed
  • INCLUDES - (1) 40V max XGT® Lithium-Ion 4.0Ah battery, charger, grinding wheel, wheel guard, side handle and bag
  • Rubberized soft grip provides increased comfort on the job
  • Active Feedback-sensing Technology (AFT®) turns the motor off if rotation of the wheel is suddenly forced to stop
  • Wire mesh intake covers are engineered to prevent debris from entering motor
  • Compatible with Makita® 40V max XGT® Lithium-Ion Batteries
  • Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance for operation in harsh conditions
  • Tool Bag
  • CONTROL - AFT® turns the motor off if rotation of the wheel is suddenly forced to stop
  • OUTPOWER: Makita-built brushless motor along with 40V max XGT® battery combine to deliver powerful grinding and up to 60% faster cutting speed than predecessor models*
  • 5" Tool-Less Wheel Guard (140N43-5)
  • 3-year limited warranty on tool, battery and charger
  • Quick guard rotation allows easy tool-less adjustment for increased productivity
  • 40V max XGT® Brushless 4-1/2” / 5" Angle Grinder, with Electric Brake (GAG01Z)
  • The digital communication within XGT® optimizes performance to provide up to 2X longer sustained power under heavy-load applications
  • *Makita XAG04 cutting #5 (5/8”) rebar
  • Reinforced metal gear housing engineered for maximum job site durability
  • Soft start suppresses start-up reaction for smooth start-ups and longer gear life
  • XGT® Tools and Batteries are designed with a multi-layer contact interface for more constant power delivery to take on high-current demands
  • WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit www.P65warnings.ca.gov.
Specifications chevron-down chevron-up
Brand Makita
UPC 088381739849
Store Location (Lititz, PA) Aisle 25, Section N2
Package Length (in) 4.20"
Package Width (in) 3.40"
Package Height (in) 3.40"
Manufacturer Part Number GAG01M1
Country of Origin China
No Load Speed 8,500 RPM
System 40V max XGT®
Switch Type Body grip/slide
Bind-Up Control Yes
Electric Brake Yes
Spindle Type 5/8" - 11 UNC
Shipping Weight 12.19 lbs.
Power Type Cordless
Lock-On Switch Yes
Automatic-start Wireless System (AWS®) No
UPC Code 088381-739849
Wheel Diameter 5"
Variable speed dial No
Lock-Off Switch No
Net Weight (with battery) 7.9 lbs.
Overall Length 16-1/8"
