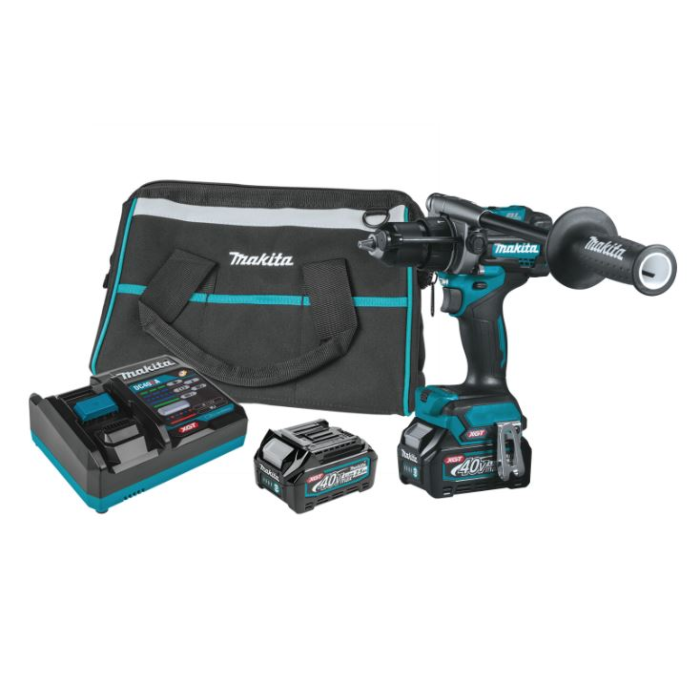

The 40V Max XGT® Brushless Cordless ½” Hammer Driver-Drill (GPH01D) from Makita is engineered for the most demanding drilling and driving applications across wood, masonry, and metal. Powered by a Makita-built brushless motor, it delivers 1,250 in-lb of max torque, surpassing other driver-drills in heavy-load tasks. The drill operates with two speed settings (0-650 and 0-2,600 RPM) and corresponding BPM for hammer-drilling in concrete, offering up to 35% faster drilling speeds than its 18V LXT predecessor. Key features include an ultra-smooth variable speed trigger, an electronic digital clutch with 41 low-speed and 21 high-speed settings for accurate torque targeting, and Active Feedback-sensing Technology (AFT®) that shuts off the motor if rotation suddenly stops. Built for durability, the GPH01D incorporates Extreme Protection Technology (XPT™) for increased resistance to dust and water, along with a reinforced gear housing and all-metal chuck. This tool is part of the XGT system, which utilizes 40V Max lithium-ion batteries and is designed with advanced brushless motor technology and intelligent digital communication to facilitate a complete transition to a high-power cordless jobsite.
INCLUDES: (2) 40 Max XGT® batteries, Rapid Charger, and bag
- XGT® Rapid Charger’s built-in chip communicates during the charging process to control current, voltage, and temperature for more efficient charging
- Brushless motor delivers 1,250 in.lbs. of max torque
- Active Feedback-sensing Technology (AFT®) turns the motor off if rotation of the accessory is suddenly forced to stop
- Ultra-smooth variable speed trigger provides optimum control
- Rapid Charger with dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging
- 2 speed settings (0-650 & 0-2,600 RPM) (0-9,750 & 0-39,000 BPM)
- All-metal chuck for increased job site durability
- The digital communication within XGT® actively monitors and protects against overload, over-discharge, and overheating
- XPT™ is engineered to provide increased dust and water resistance in harsh job site conditions
- The XGT® Rapid Charger’s digital display indicates battery charge level (-80%, +80%, 100%)
- Battery reaches a full charge in 28 minutes or less
- Reinforced gear housing engineered for maximum job site durability
- Electronic digital clutch accurately targets desired torque range (41 settings in low speed, 21 settings in high speed)
- Hammer-drill mode applies a percussive motion for drilling holes in concrete or masonry
- Compact length at only 7-1/8"; ideal for working in tight spaces
- XGT® Tools and Batteries are designed with a multi-layer contact interface for more constant power delivery to take on high-current demands
- Only use genuine Makita® Batteries and Chargers
- 3-year limited warranty on tool, battery, and charger
| Brand | Makita |
|---|---|
| UPC | 088381894050 |
| Store Location (Lititz, PA) | Aisle 25, Section N6 |
| Package Length (in) | 3.20" |
| Package Width (in) | 6.40" |
| Package Height (in) | 6.40" |
| Manufacturer Part Number | GPH01D |
| Country of Origin | China |
| UPC Code | 088381-894050 |
| Net Weight (with battery) | 6 lb |
| System | 40V max XGT® |
| Maximum Torque | 1,250 in-lb/141N•m |
| Capacity (masonry) | 13/16" |
| No Load Speed | 0 - 650 / 0 - 2,600 RPM |
| Capacity (steel) | 13/16" |
| Overall Length | 7-1/8" |
| Blows Per Minute (2 speed) | 0 - 9,750 / 0 - 39,000 BPM |
| Chuck Size | 1/2" |
| Shipping Weight | 13.74 lb |
| Capacity (wood) | 3" |
