ATP

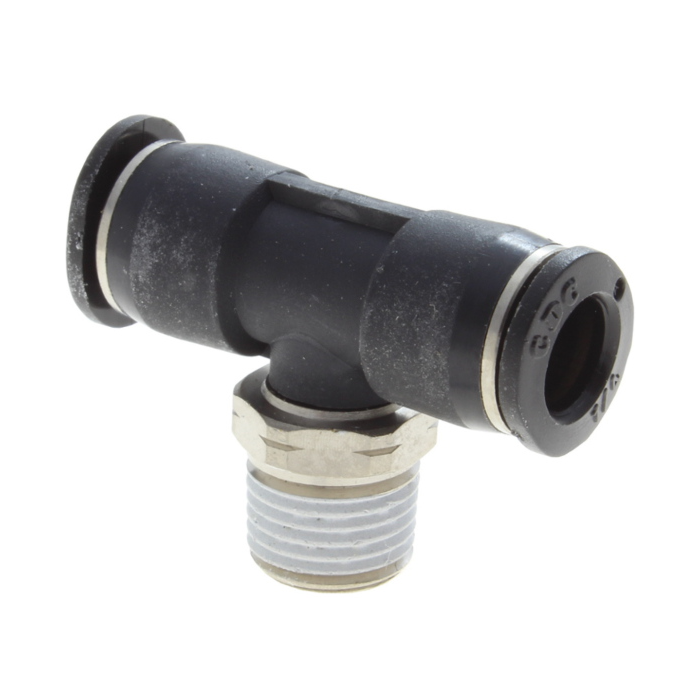

Male Branch Tee Swivel - 1/8 in. NPT
SKU: W372PLP22
| Location: Aisle 11, Section H4
$9.99
20 In stock
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
Features
Specifications
Compact Swivel Male Branch Tees provide two opposing push-to-connect ports, with a single male threaded fitting in a small package. The male fitting swivels and provides a hex for installation.
- Nitrile D-seal provides a positive seal on the OD of the tube in both static and dynamic positions
- Pre-applied thread sealant
| Brand | ATP |
|---|---|
| Store Location (Lititz, PA) | Aisle 11, Section H4 |
| Manufacturer Part Number | PT1/8-N1C |
| Connection Type | 1/8" NPT |
| Pressure Rating | 290 psi |
| Material | Stainless Steel Ring/Nitrile Seal |
| Temperature Rating | -4 to 175 deg F |
| Application | Pneumatics, Packaging, Textile, Vacuum, Semi-Conductors, Robotics |
| Max Working Pressure | 150 psi |
| Temperature Range | 32ºF to 140°F |
| Vacuum Rating | 29.5" HG |
| Metal Body Material | Nickel-Plated Brass |
| Resin Body Material | PBT Resin |
| O-Ring | NBR (Buna-N) |
| Grip Ring | Stainless Steel |
| Release Ring | Acetal Plastic |
| Media | Compressed Air; Inert Gases |
