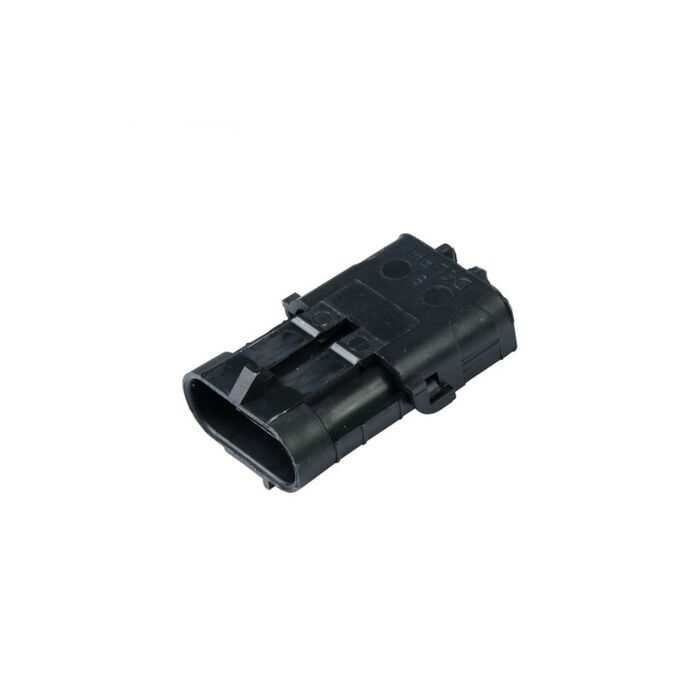

12 V 20 A -40 to 125 deg C 3-Prong Male plug
SKU: DC75020
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$2.49
Features
Specifications
The male, shroud Weather Pack connector is manufactured of nylon plastic and has silicone seals to prevent moisture and dust ingress. Weather pack connectors ensure secure connectivity as each connector has a locking mechanism that align the terminal and seal and acts as a strain relief for the terminals. Features positive snap-locking action with secondary locking that helps terminal retention and provides access to terminals for service. Weather Pack connectors are designed for use in engine compartments and are ideal for automotive, marine, agricultural and other harsh environment applications.
- Stops in all cavities to ensure proper insertion of terminals
- All connectors indexed to prevent mis-matching
- Male (shroud) housings connect with male terminals
- Housings, male terminals, plugs & seals sold separately
| Store Location (Lititz, PA) | Aisle 08, Section S7 |
|---|---|
| Package Length (in) | 1.75" |
| Package Width (in) | 1.75" |
| Package Height (in) | 1.13" |
| Type | 3-Prong |
| Voltage Rating | 12 V |
| Current Rating | 20 A |
| Temperature Rating | -40 to 125 deg C |
