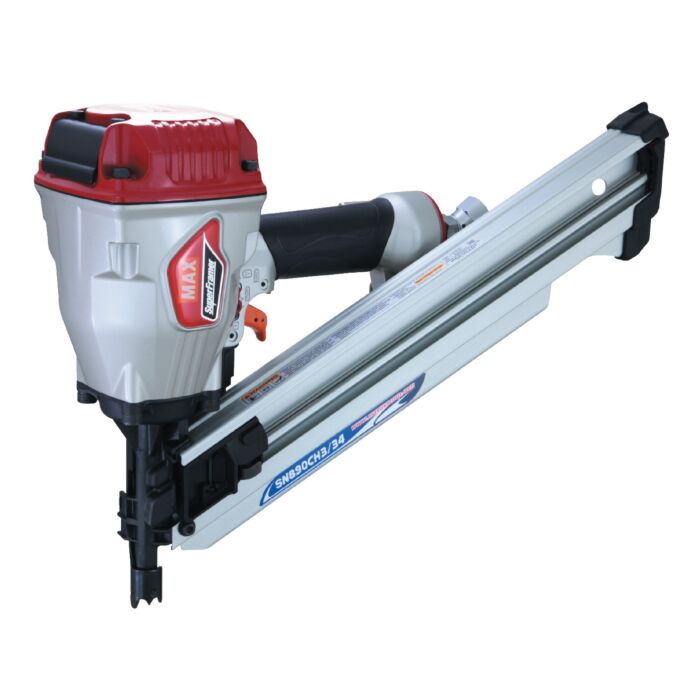

Angled with a unique safety equipped 34 degree magazine, the SuperFramer is an ideal choice for a a variety of applications such as framing, seating, decking, sub flooring, and furring. Hard-to-reach places and unconventional angles are a thing of the past for carpenters. This framing head stick nailer is equipped with a swivel plug to alleviate the tangling of the air hose from any angle and a rafter hook for easy hanging of the tool when it's not being used. MAX is committed to manufacturing reliable tools that have been designed to deliver enhanced performance while making sure that users can carry out safe operations.
- Patented, self-cleaning maintenance-free end cap filter captures foreign substances before they can enter the tool and ejects them when the air hose is disconnected
- Designed with pointy teeth on the contact arm allows users to get a firm grip when toe-nailing, and also avoiding any rapid jerks or slipping during operation
- Tangle-free swivel fitting prevents tangling of the hose while keeping roofers safe from potential fall hazards
- Heavy-duty rafter hook gives carpenters the convenience of hanging tool on rafters as they move around the jobsite
- Depth adjustment dial allows operators to effortlessly drive nails into hard & soft materials
- 30% shorter than conventional tools, allowing the user to easily fit the tool in between studs that may not be conventional
- Easily switchable sequential trigger installed and also includes a contact fire trigger
| Brand | MAX |
|---|---|
| UPC | 093818301360 |
| Store Location (Lititz, PA) | Aisle 28, Section M6 |
| Package Length (in) | 10.20" |
| Package Width (in) | 3.60" |
| Package Height (in) | 3.60" |
| Manufacturer Part Number | SN890CH3 |
| Type | Offset/Clipped Head |
| Nail Diameter | 0.131" |
| Magazine Angle | 34 deg |
| Overall Length | 17-1/8" |
| Overall Width | 4-3/4" |
| Overall Depth | 12-1/2" |
| Minimum Operation Pressure | 70 psi |
| Maximum Operation Pressure | 120 psi |
| Air Inlet Size | 3/8" |
| Magazine Capacity | 90 |
| Depth Control | Yes |
| Jam Clearing | No |
| Trigger Type | Selective Action Trigger (Sequential/ Rapid) |
| Air Consumption | 0.077 FT3/CYCLE |
| Accessories | Rapid fire trigger, safety glasses |
