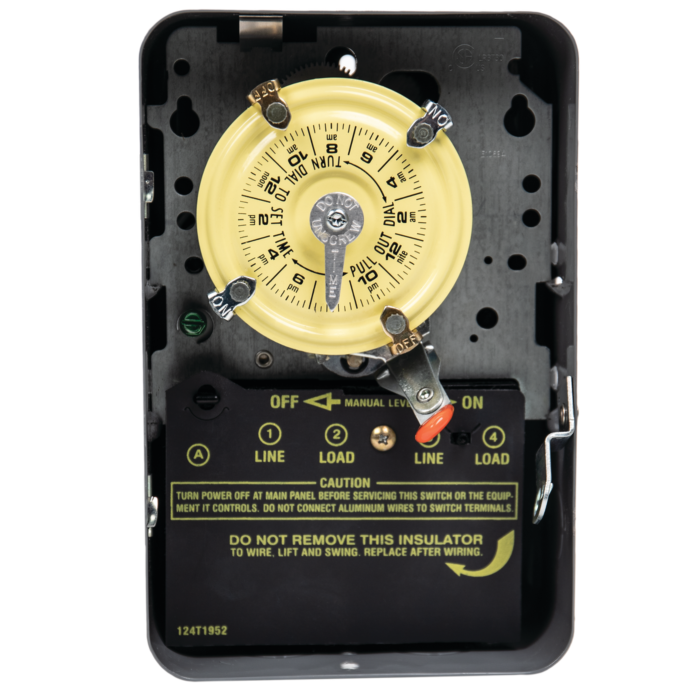

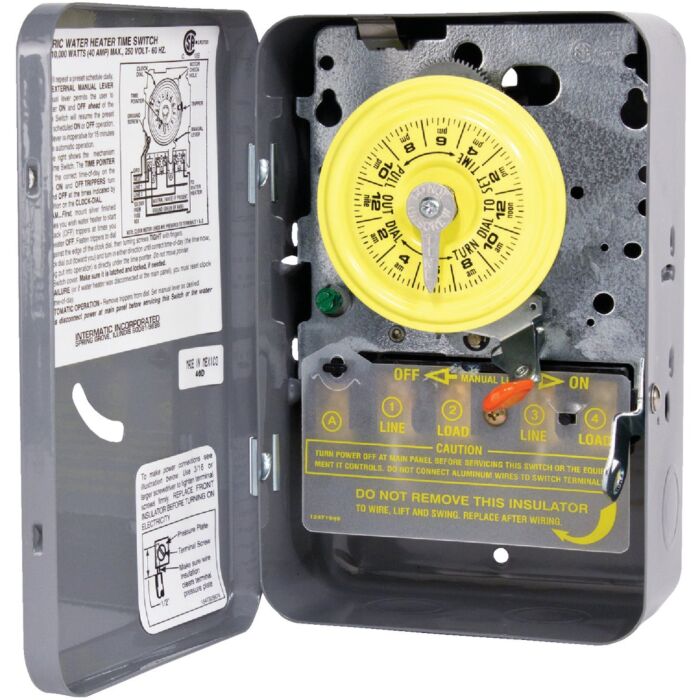

With the easy-to-set "Yellow Dial," these time switches allow for basic control of electric water heaters. These time switches offer a minimum ON/OFF time of one hour, and are available for 208-250 VAC applications. With the proven reliability of our mechanical line, these time switches provide dependable electric water heater control.
- Two sets of ON/OFF trippers
- Enables shifting electricity use into off-peak hours to reduce energy costs
- Convenient external override switch
- Up to 12 ON/12 OFF events
- Please see the Warning @ www.P65Warnings.ca.gov - Lead
Brand | Intermatic |
---|---|
UPC | 078275007406 |
Store Location (Lititz, PA) | Aisle 05, Section D4 |
Package Length (in) | 5.50" |
Package Width (in) | 3.50" |
Package Height (in) | 3.50" |
Manufacturer Part Number | WH40 |
Country of Origin | Mexico |
Product Height | 7.875 in; 200 mm |
Product Depth | 3.4375 in; 87.3 mm |
Operating Temperature Min | -40°F; -40°C |
Operating Temperature Max | 130°F; 54°C |
Warranty Period | 1-Year limited |
Minimum On Off Time | 1 hour |
Maximum On Off Operations | 12 |
Operation Mode | 24 hour |
UL Cerfication File Number | UL917 |
Color | Gray |
Applications | Agriculture Feeders; Greenhouse Misting Control; Water Heater Control |
Application Compatibilities | Electric Water Heater |
Wire Size Min | #14 AWG |
Wiring Option | Terminals |
Input Voltage Ranges | 208-277 VAC, 60 Hz |
Wire Size Max | #8 AWG |
Enclosure Type | Indoor type 1 metal |
Mechanism Type | Analog/Mechanical |
Switch Type | DPST |
Power Consumption Max W | 3 W |
Clock Motor Voltage | 208/277 VAC, 60 Hz |
Amps Per Pole | 40 A |
Number Of Trippers Included | 2 ON/2 OFF |
Has Manual Override CVL | Yes |
PDF Standards And Certifications | cULus; cCSAus |
Knockout Dimensions Bottom | (2) combination 1/2" - 3/4" |
Knockout Dimensions Back | (1) combination 1/2" - 3/4" |
Knockout Dimensions Left | (1) combination 1/2" - 3/4" |
UL Certification | cULus |
CSA Certification | cCSAus |
Resistive Load Ratings Ranges | 40 A Max, 208-277 VAC, 60 Hz |
