Metric Key Stock

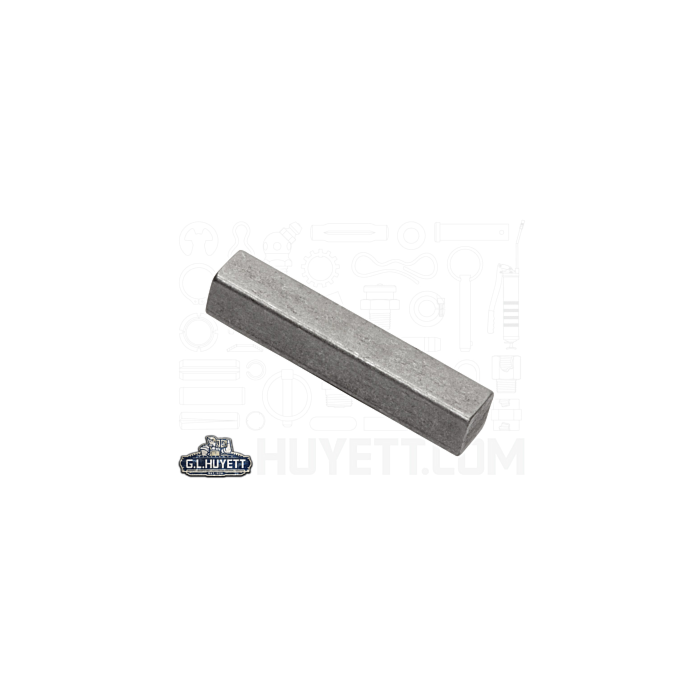

Machine Key 4 mm x 4 mm x 25 mm Form B C45K Plain Undersized DIN 6885
Machine Key 6 mm x 6 mm x 25 mm Form B C45K Plain Undersized DIN 6885
Machine Key 7 mm x 7 mm x 33 mm Form B C45K Plain Undersized DIN 6885
Machine Key 5 mm x 5 mm x 25 mm Form B C45K Plain Undersized DIN 6885
Machine Key 10 mm x 10 mm x 40 mm Form B C45K Plain Undersized DIN 6885
Machine Key 8 mm x 8 mm x 40 mm Form B C45K Plain Undersized DIN 6885
SKU: KEYM-
SKU: KEY4MM
SKU: KEY6MM
SKU: KEY7MM
SKU: KEY5MM
SKU: KEY10MM
SKU: KEY8MM
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
As low as:
$0.49
As low as:
Features
Specifications
Machine Key 4 mm x 4 mm x 25 mm Form B C45K Plain Undersized DIN 6885
Machine Key 4 mm x 4 mm x 25 mm Form B C45K Plain Undersized DIN 6885
Machine Key 6 mm x 6 mm x 25 mm Form B C45K Plain Undersized DIN 6885
Machine Key 7 mm x 7 mm x 33 mm Form B C45K Plain Undersized DIN 6885
Machine Key 5 mm x 5 mm x 25 mm Form B C45K Plain Undersized DIN 6885
Machine Key 10 mm x 10 mm x 40 mm Form B C45K Plain Undersized DIN 6885
Machine Key 8 mm x 8 mm x 40 mm Form B C45K Plain Undersized DIN 6885
| Store Location (Lititz, PA) | Aisle 09, Section T7 |
|---|---|
| Package Length (in) | 0.19" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.19" |
| Height | 4.0000 mm |
| Width | 4.0000 mm |
| Form | B |
| Hardness | HRB 87 |
| Height Maximum | 4.0000 mm |
| Height Minimum | 3.9700 mm |
| Illustration | PHL-30-S |
| Inch or Metric | Metric |
| Finish (Keys and Stock) | Plain |
| Material (Keys and Stock) | Medium Carbon Steel |
| Type (Keys and Stock) | Undersized Machine Key |
| Material Grade (English United States) | C45K |
| Overall Length | 25.0000 mm |
| Overall Length Maximum | 25.0000 mm |
| Overall Length Minimum | 24.8000 mm |
| Shape | Square |
| Size | 4 mm x 4 mm |
| Specification | DIN 6885 |
| Width Maximum | 4.0000 mm |
| Width Minimum | 3.9700 mm |
| Store Location (Lititz, PA) | Aisle 09, Section T7 |
|---|---|
| Package Length (in) | 0.19" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.19" |
| Height | 4.0000 mm |
| Width | 4.0000 mm |
| Form | B |
| Hardness | HRB 87 |
| Height Maximum | 4.0000 mm |
| Height Minimum | 3.9700 mm |
| Illustration | PHL-30-S |
| Inch or Metric | Metric |
| Finish (Keys and Stock) | Plain |
| Material (Keys and Stock) | Medium Carbon Steel |
| Type (Keys and Stock) | Undersized Machine Key |
| Material Grade (English United States) | C45K |
| Overall Length | 25.0000 mm |
| Overall Length Maximum | 25.0000 mm |
| Overall Length Minimum | 24.8000 mm |
| Shape | Square |
| Size | 4 mm x 4 mm |
| Specification | DIN 6885 |
| Width Maximum | 4.0000 mm |
| Width Minimum | 3.9700 mm |
| Store Location (Lititz, PA) | Aisle 09, Section T7 |
|---|---|
| Package Length (in) | 0.25" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.25" |
| Height | 6.0000 mm |
| Width | 6.0000 mm |
| Form | B |
| Hardness | HRB 87 |
| Height Maximum | 6.0000 mm |
| Height Minimum | 5.9700 mm |
| Illustration | PHL-30-S |
| Inch or Metric | Metric |
| Finish (Keys and Stock) | Plain |
| Material (Keys and Stock) | Medium Carbon Steel |
| Type (Keys and Stock) | Undersized Machine Key |
| Material Grade (English United States) | C45K |
| Overall Length | 25.0000 mm |
| Overall Length Maximum | 25.0000 mm |
| Overall Length Minimum | 24.8000 mm |
| Shape | Square |
| Size | 6 mm x 6 mm |
| Specification | DIN 6885 |
| Width Maximum | 6.0000 mm |
| Width Minimum | 5.9700 mm |
| Store Location (Lititz, PA) | Aisle 09, Section T7 |
|---|---|
| Package Length (in) | 0.25" |
| Package Width (in) | 1.25" |
| Package Height (in) | 0.25" |
| Height | 7.0000 mm |
| Width | 7.0000 mm |
| Form | B |
| Hardness | HRB 87 |
| Height Maximum | 7.0000 mm |
| Height Minimum | 6.9640 mm |
| Illustration | PHL-30-S |
| Inch or Metric | Metric |
| Finish (Keys and Stock) | Plain |
| Material (Keys and Stock) | Medium Carbon Steel |
| Type (Keys and Stock) | Undersized Machine Key |
| Material Grade (English United States) | C45K |
| Overall Length | 33.0000 mm |
| Overall Length Maximum | 33.0000 mm |
| Overall Length Minimum | 32.7000 mm |
| Shape | Square |
| Size | 7 mm x 7 mm |
| Specification | DIN 6885 |
| Width Maximum | 7.0000 mm |
| Width Minimum | 6.9640 mm |
| Store Location (Lititz, PA) | Aisle 09, Section T7 |
|---|---|
| Package Length (in) | 0.19" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.19" |
| Height | 5.0000 mm |
| Width | 5.0000 mm |
| Form | B |
| Hardness | HRB 87 |
| Height Maximum | 5.0000 mm |
| Height Minimum | 4.9700 mm |
| Illustration | PHL-30-S |
| Inch or Metric | Metric |
| Finish (Keys and Stock) | Plain |
| Material (Keys and Stock) | Medium Carbon Steel |
| Type (Keys and Stock) | Undersized Machine Key |
| Material Grade (English United States) | C45K |
| Overall Length | 25.0000 mm |
| Overall Length Maximum | 25.0000 mm |
| Overall Length Minimum | 24.8000 mm |
| Shape | Square |
| Size | 5 mm x 5 mm |
| Specification | DIN 6885 |
| Width Maximum | 5.0000 mm |
| Width Minimum | 4.9700 mm |
| Store Location (Lititz, PA) | Aisle 09, Section T7 |
|---|---|
| Package Length (in) | 1.50" |
| Package Width (in) | 0.50" |
| Package Height (in) | 0.50" |
| Height | 10.0000 mm |
| Width | 10.0000 mm |
| Form | B |
| Hardness | HRB 87 |
| Height Maximum | 10.0000 mm |
| Height Minimum | 9.9640 mm |
| Illustration | PHL-30-S |
| Inch or Metric | Metric |
| Finish (Keys and Stock) | Plain |
| Material (Keys and Stock) | Medium Carbon Steel |
| Type (Keys and Stock) | Undersized Machine Key |
| Material Grade (English United States) | C45K |
| Overall Length | 40.0000 mm |
| Overall Length Maximum | 40.0000 mm |
| Overall Length Minimum | 39.7000 mm |
| Shape | Square |
| Size | 10 mm x 10 mm |
| Specification | DIN 6885 |
| Width Maximum | 10.0000 mm |
| Width Minimum | 9.9640 mm |
| Store Location (Lititz, PA) | Aisle 09, Section T7 |
|---|---|
| Package Length (in) | 0.31" |
| Package Width (in) | 1.56" |
| Package Height (in) | 0.31" |
| Height | 8.0000 mm |
| Width | 8.0000 mm |
| Form | B |
| Hardness | HRB 87 |
| Height Maximum | 8.0000 mm |
| Height Minimum | 7.9640 mm |
| Illustration | PHL-30-S |
| Inch or Metric | Metric |
| Finish (Keys and Stock) | Plain |
| Material (Keys and Stock) | Medium Carbon Steel |
| Type (Keys and Stock) | Undersized Machine Key |
| Material Grade (English United States) | C45K |
| Overall Length | 40.0000 mm |
| Overall Length Maximum | 40.0000 mm |
| Overall Length Minimum | 39.7000 mm |
| Shape | Square |
| Size | 8 mm x 8 mm |
| Specification | DIN 6885 |
| Width Maximum | 8.0000 mm |
| Width Minimum | 7.9640 mm |
