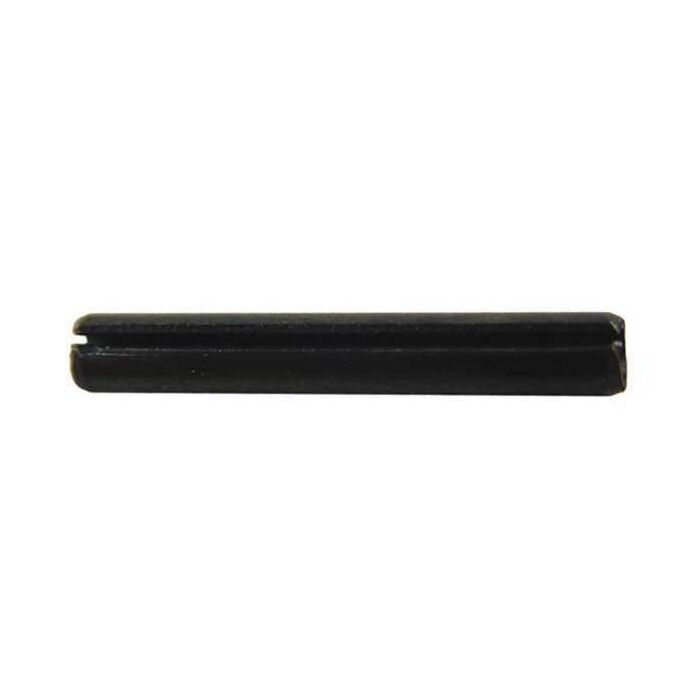

3 mm x 45 mm Steel Slotted Spring Roll Pin
SKU: RP3X45M
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$0.49
Features
Specifications
Spring Roll Pin, Slotted, 3 mm Pin Dia, 45 mm Pin Length, 7.8 kN Shear Strength, HV 458-560 Hardness, High Carbon Steel, Plain, 1070-1080 Grade, Standards: ASME B18.8.4M Type B
| Store Location (Lititz, PA) | Aisle 10, Section T3 |
|---|---|
| Package Length (in) | 1.77" |
| Package Width (in) | 0.12" |
| Package Height (in) | 0.12" |
| Type | Slotted |
| Pin Diameter | 3 mm |
| Pin Length | 45 mm |
| Shear Strength | 7.8 kN |
| Hardness | HV 458-560 |
| Material | High Carbon Steel |
| Finish | Plain |
| Grade | 1070-1080 |
| Standards | ASME B18.8.4M Type B |
