Weasler

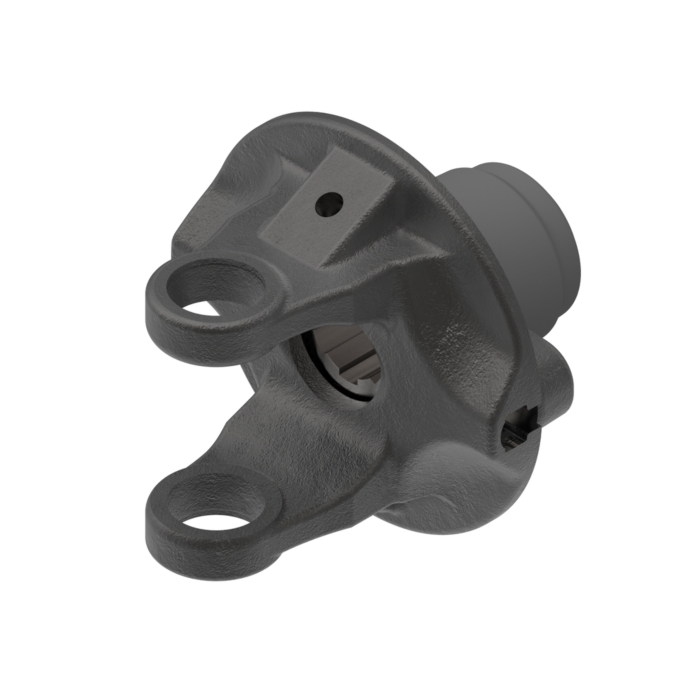

4 Series 1-3/8" 6 Spline Shear Yoke with Safety Slide Lock

SKU: 1048406
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 1 in stock

Optional Accessories

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Weasler #4 & 2300 Series Standard Cross & Bearing Kit
Weasler
#4 & 2300 Series Standard Cross & Bearing Kit
$41.71
2008474
Weasler Tractor Yoke, 1-3/8" 6 or 21 Spline, Slide Collar Connection
Weasler
Tractor Yoke, 1-3/8" 6 or 21 Spline, Slide Collar Connection
$41.19
13004000
Weasler #4 & 2300 Series Extended Lube Cross & Bearing Kit
Weasler
#4 & 2300 Series Extended Lube Cross & Bearing Kit
$56.63
2018474
Features chevron-down chevron-up
The ball shear clutch yoke offers implement overload protection, allowing for safer operation. The compact desgin allows the operator to easily replace the bolt.
  • Series: 4
  • Style: Italian
  • Bore Type: Splined
  • Size: 1-3/8" 6 Spline
  • Tractor Connection: Safety Slide Lock
Specifications chevron-down chevron-up
Brand Weasler
UPC 728357306438
Store Location (Lititz, PA) Aisle 08, Section W4
Package Length (in) 5.60"
Package Width (in) 5.40"
Package Height (in) 6.60"
Manufacturer Part Number 104-8406
Series 4
Outside Diameter 6"
Bore 1.375"
Bore Description 1 3/8-6 SPLINE
Connection 1 Description SAFETY SLIDE LOCK
Connection 2 Description (2) 3/8 Grade 5
Torque 27800 in-lb
Bearing Diameter 1.063"
Bearing Span 2.933"
Horsepower at 540 RPM 45 hp
Horsepower at 1000 RPM 70 hp
Style Italian
