Weasler

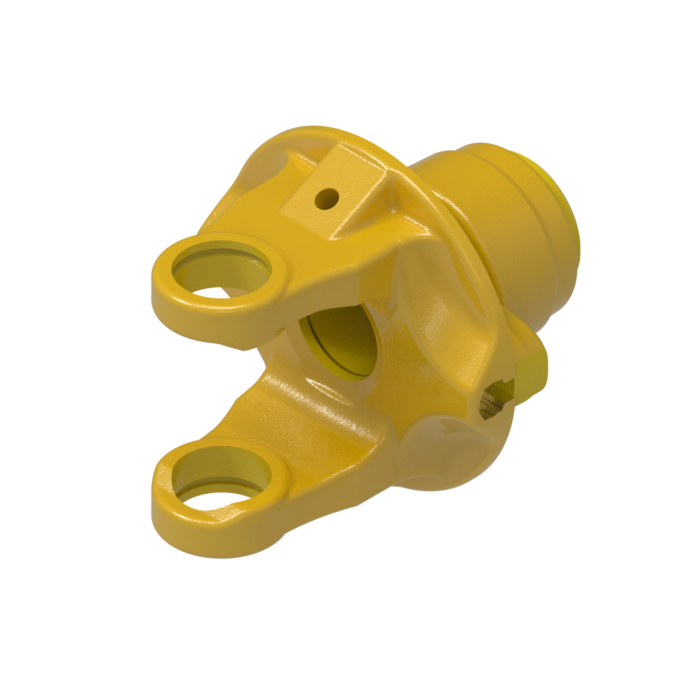

8 Series 1-3/4" 20 Spline Shear Yoke with Safety Slide Lock

SKU: 1046820
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 1 in stock

Optional Accessories

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Weasler #8 Series Extended Lube Cross & Bearing Kit
Weasler
#8 Series Extended Lube Cross & Bearing Kit
$95.77
2016806
Weasler Tractor Yoke, 1-3/4" 20 Spline, Slide Collar Connection
Weasler
Tractor Yoke, 1-3/4" 20 Spline, Slide Collar Connection
$41.18
13004020
Weasler #8 Series Standard Cross & Bearing Kit
Weasler
#8 Series Standard Cross & Bearing Kit
$71.07
2006806
Features chevron-down chevron-up
The ball shear clutch yoke offers implement overload protection, allowing for safer operation. The compact desgin allows the operator to easily replace the bolt.
  • Series->8
  • Style->Italian
  • Bore Type->Splined
  • Size ->1-3/4" 20 Spline
  • Tractor Connection->Safety Slide Lock
Specifications chevron-down chevron-up
Brand Weasler
UPC 728357309101
Store Location (Lititz, PA) Aisle 08, Section W5
Package Length (in) 5.60"
Package Width (in) 5.00"
Package Height (in) 7.60"
Manufacturer Part Number 104-6820
Series 8
Outside Diameter 6"
Bore 1.75"
Bore Description 1 3/4-20 SPLINE
Connection 1 Description SAFETY SLIDE LOCK
Connection 2 Description (2) 3/8 Grade 5
Torque 27800 in-lb
Bearing Diameter 1.375"
Bearing Span 4.189"
Horsepower at 540 RPM 120 hp
Horsepower at 1000 RPM 185 hp
Style Italian
