Only 1 in stock! 1 in stock
Due to the low inventory, we recommend contacting the store to verify availability.

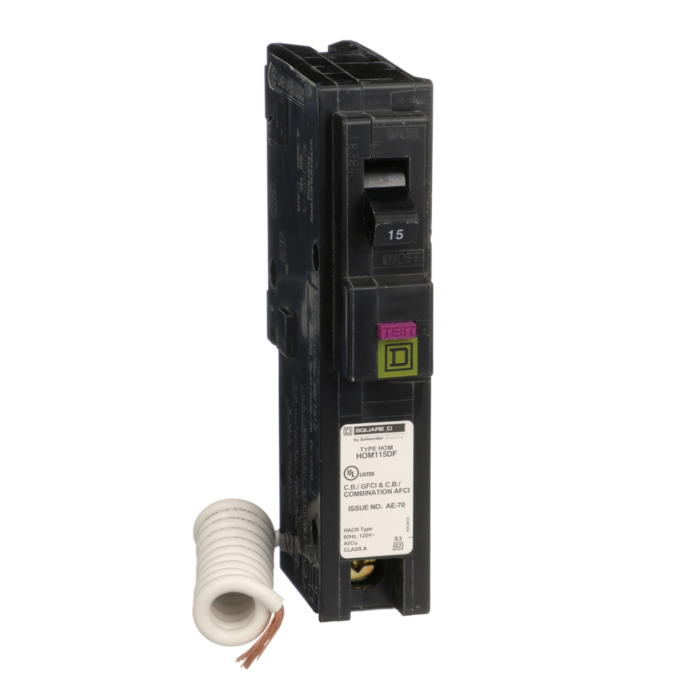

Brand | Square D |
---|---|
UPC | 785901986010 |
Store Location (Lititz, PA) | Aisle 08, Section D1 |
Package Length (in) | 2.98" |
Package Width (in) | 1.00" |
Package Height (in) | 3.13" |
Manufacturer Part Number | HOM115DFC |
Ambient Air Temperature For Operation | 40 °C |
Warranty | Lifetime |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1406034 |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI1406034 |
Eu Rohs Directive | Compliant with Exemptions |
Halogen Content Performance | Halogen free product |
Connections - Terminals | pigtail neutral |
Height | 3.13 in |
Tightening Torque | 4.0-4.0 N.m 2.5-6 mm² (AWG 14...AWG 8) |
Net Weight | 0.30 kg |
Width | 1 in |
Depth | 2.98 in |
Weight | 0.30 kg |
Product Certifications | UL Listed |
Circuit Breaker Type | combination ARC-fault and ground fault |
Range Of Product | Homeline |
Number Of Spaces Required | 1 |
Product Or Component Type | miniature circuit-breaker |
Type Of Packing | clam packaging |
Circuit Breaker Application | HACR rated |
Mounting Mode | plug-in |
Short-Circuit Current | 10 kA |
Poles Description | 1P |
Electrical Connection | screw clamp terminals |
Line Rated Current | 15 A |
[Ue] Rated Operational Voltage | 120 V AC |
Awg Gauge | 1 x AWG 14...AWG 8 ( aluminium/copper ) || 2 x AWG 14...AWG 10 ( copper ) |
Homeline Electronic Breakers - EoLI_ENVEOLI1406034_V2 (pdf)
Dimensions Drawing: HOM 115 120 EPD GFI - Hom120EPD_GFI+pdf+of+svg (pdf)
Dimensions Drawing: HOM 115 120 PCAFI - hom120pcafi (pdf)
Homeline Dual Function CAFI/GFCI Circuit Breaker Installation Instructions - HRB86114 (pdf)
Illustration: Dimension Drawing for Homeline 1-Pole GFI/EPD - TI_DIM_HOM120EPD-GFI.svg
Square D Residential Products - Limited Warranty - 0700DB2001 (pdf)
QO(B) Circuit Breakers, Certificate, UL - 20140626-E48340+QO+DF (pdf)
HomeLine® Circuit Breakers, Certificate, CSA - CSA_Cert_70075144_LR29971 (pdf)
Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf)
Homeline Electronic Breakers - Internal+PEP+ENVPEP1406034_V2 (pdf)
