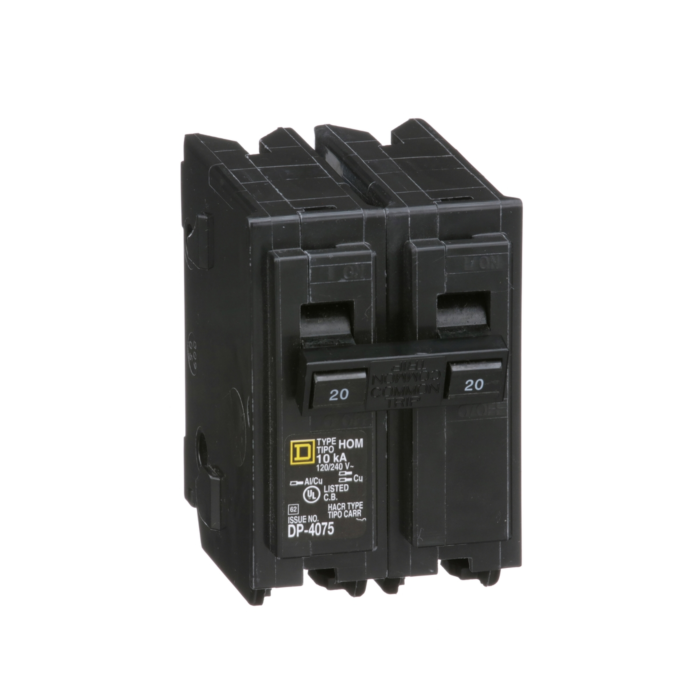

Mini circuit breaker, Homeline, 20A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
SKU: EHOM220
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$19.49
Features
Specifications
Downloads
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 20A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed. Circuit breaker is commercial packaged.
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
| Brand | Square D |
|---|---|
| UPC | 047569062766 |
| Store Location (Lititz, PA) | Aisle 08, Section D1 |
| Package Length (in) | 2.40" |
| Package Width (in) | 2.40" |
| Package Height (in) | 1.80" |
| Manufacturer Part Number | HOM220CP |
| Product Certifications | UL Listed |
| Line Rated Current | 20 A |
| Ue Rated Operational Voltage | 120/240 V AC |
| Persona Type Ids | EU, EUA, SC |
| Persona Type Names | End User, Consumer, Electrician |
| Awg Gauge | 1 x AWG 14...AWG 8 ( aluminium/copper ), 2 x AWG 14...AWG 10 ( copper ) |
| Tightening Torque | 4.0-4.0 N.m 2.5-10 mm² (AWG 16...AWG 14), 4.0-4.0 N.m 4-20 mm² (AWG 12...AWG 4) |
| Carbon Footprint Of The Distribution Phase A4 | 0.0773899176, 0.1 kg CO2 eq. |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.1 kg CO2 eq., 0.0632169975 |
| Carbon Footprint Of The Installation Phase A5 | 0.0003076407, 0 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 1 kg CO2 eq., 1.2674007282 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 22 kg CO2 eq., 21.872 |
| Local Data Status | Publishable |
| Local Publishable Date | 2025-11-18 |
| Return Indicator | Y |
| Stocking Flag | N |
| Stock Policy | 2 |
| H And D Domain | Safety |
| H And D Subrange | RESI |
| H And D Enrichment Assignment | no |
| H And D Enrichment Function | MCB |
| H And D Enrichment Class 3 | Circuit Breakers |
| H And D Enrichment Class 4 | MCB UL 2P |
| Device Type | LV equipment - Low voltage circuit breaker |
| Serviceability | No |
| Traceability | No |
| Field Service Division | PPIBS |
| Average Life Duration | 15 year(s) |
| Use Carbon Footprint | 21.872 |
| Legacy Weee Scope | In |
| Weee Product Category | 5 |
| Scope Perimeter | Outside of Europe |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur In Scope | Yes |
| Rohs Eur Status | Compliant |
| Rohs Eur Conformity Date | 2534 |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs In Scope | No |
| China Rohs Label | 1 |
| With Recycled Cardboard | Yes |
| Without Single Use Plastic | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier Id | 1 |
| Tier | 1 |
| Function Option Id | STANDARD |
| Function Option | Standard |
| Market Segmentation Id | RESIDENTIAL |
| Market Segmentation | Residential |
| Product Kit Identifier | N |
| Circuit Breaker Application | HACR rated |
| Circuit Breaker Type | standard |
| Electrical Connection | clamp terminal for 2 cables |
| Energy Efficiency Optimized | False |
| Mounting Mode | plug-in |
| Number Of Spaces Required | 2 |
| Poles Description | 2P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | miniature circuit-breaker |
| Range Of Product | Homeline |
| Returnability | Yes |
| Short Circuit Current | 10 kA |
| Software Version | EIME v5.9.1 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 23 kg CO2 eq. |
| Type Of Packing | consumer packaging |
| Warranty In Months | 18 |
| Pep Code | ENVPEP1308001EN |
| Database Version | 2016-11 |
| Pep Verification Date | 2021-12-01 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Type Of Verification For The Pep | Independent internal review |
| Data Source | extrapolated product |
| Functional Unit Description | Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120/240 VAC and rated current 20A In. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1 Pole;& 10- Rated breaking capacity 10 kA; |
| Functional Unit Quantity | 1 |
| Functional Unit Unit | unit |
| Product Weight In G2 | 303.907 |
| Reference Lifetime In Y2 | 20 |
| Energy Consumption On Product Lifetime In Kwh | 30.222 |
| Energy Model Manufacturing A1 A3 2 | Energy model used: USA |
| Energy Model Installation A5 2 | Electricity mix AC; Europe consistent; consumption mix, at power plant; US |
| Energy Model Use B6 2 | Electricity mix AC; Europe consistent; consumption mix, at power plant; US |
| Energy Model End Of Life C1 C4 2 | Electricity mix AC; Europe consistent; consumption mix, at power plant; US |
| Offer Owner Code | 190788 |
| Height Nominal | 3.13 in |
| Width Nominal | 2 in |
| Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 2 | 282.92 |
| Hazardous Waste Disposed Of Kg Operational Energy Use B6 2 | 1.7524 |
| Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 2 | 3.0982 |
| Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 | 382.41 |
| Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 2 | 383.16 |
| Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 | 382.41 |
| Air Pollution M3 Operational Energy Use B6 2 | 2253.2 |
| Water Pollution M3 Operational Energy Use B6 2 | 1017 |
| Global Warming Kg Equivalent Co2 Operational Energy Use B6 2 | 21.872 |
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Carbon Footprint | 23.280315284 |
| Ambient Air Temperature For Operation | 40 °C |
| Environmental Disclosure | ENVPEP1308001EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Country of Origin | Mexico |
| Depth | 2.98 in |
