- Square D CAFI circuit breakers feature time saver diagnostics to help find circuit issues faster
Brand | Square D |
---|---|
UPC | 047569522291 |
Store Location (Lititz, PA) | Aisle 08, Section D1 |
Package Length (in) | 3.80" |
Package Width (in) | 1.20" |
Package Height (in) | 1.20" |

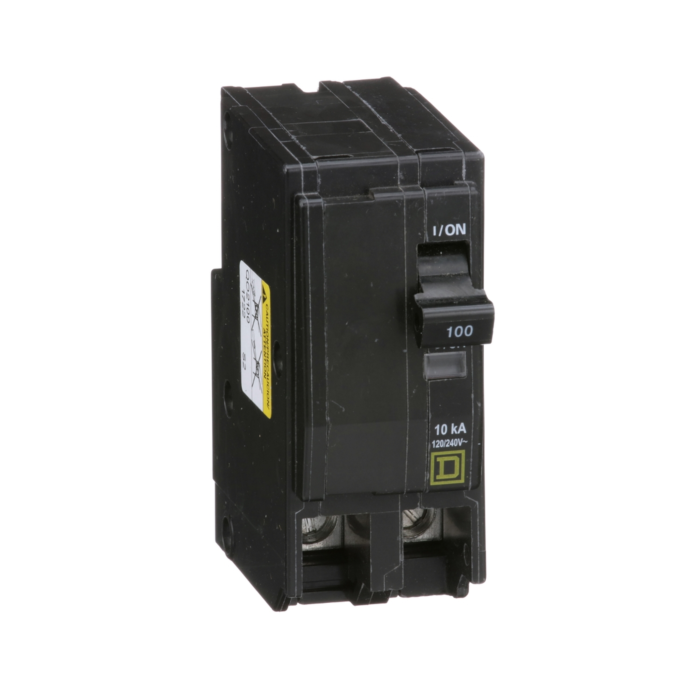

Manufacturer Part Number | QO2100CP |
Height | 89 mm |
Tightening Torque | 5.6-5.6 N.m |
Number Of Spaces Required | 2 |
Net Weight | 0.318 kg |
Breaking Capacity | 10 kA 120/240 V AC || 10 kA 120 V AC |
Awg Gauge | AWG 4...AWG 2/0 copper or aluminium |
Width | 38 mm |
Depth | 74 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | N/A |
Eu Rohs Directive | Compliant with Exemptions |
Halogen Content Performance | Halogen free product |
Weight | 0.318 kg |
Circuit Breaker Type | standard |
Range Of Product | QO |
Product Or Component Type | miniature circuit-breaker |
Type Of Packing | consumer packaging |
Circuit Breaker Application | HACR rated |
Mounting Mode | plug-in |
Poles Description | 2P |
Electrical Connection | box lugs |
Line Rated Current | 100 A |
[Ue] Rated Operational Voltage | 120/240 V AC || 120 V AC |
Product Certifications | UL Listed || CSA |
Ambient Air Temperature For Operation | 40 °C |
QO Load Centers and Branch Circuit Breakers Installation Instructions - 40269-469-02 (pdf)
Square D Combination AFCI Circuit Breakers Brochure - 0700BR1202 (pdf)
A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf)
QO(B) Circuit Breakers, Certificate, UL - 140601-E84905A+QOM2+100-225A+2P (pdf)
Digest Catalog 01: Load Centers - 0100CT1901_SEC-01 (pdf)
Square D QO and QOB Miniature Circuit Breakers Catalog - 0730CT9801 (pdf)
QO MINIATURE CIRCUIT BREAKER - Internal+PEP+ENVPEP2111016_V1_1+(1) (pdf)
