![Square D Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, plug in, 6mA grd fault A, pigtail, consumer pack [TAA]](https://paulbhardware.com/media/catalog/product/cache/306be0ea33a9bd9853274cfca8a93169/0/7/0736863f2a7c3d76545dae59ef5f5e69abc88c98-large.png "Square D Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, plug in, 6mA grd fault A, pigtail, consumer pack [TAA]")

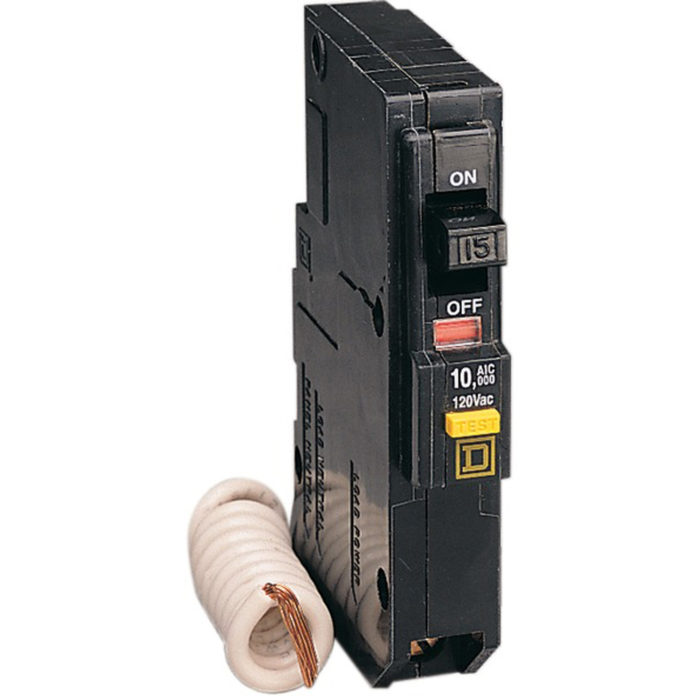

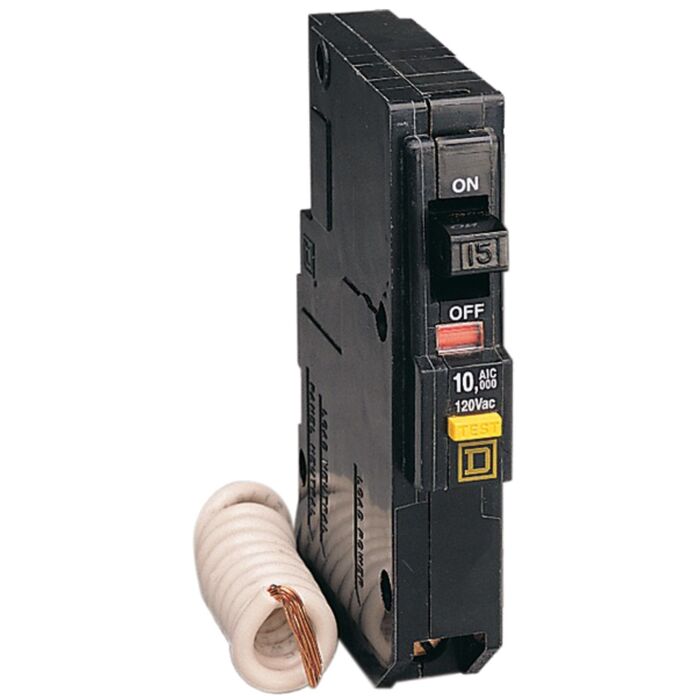

Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, plug in, 6mA grd fault A, pigtail, consumer pack [TAA]
SKU: EQO115GFI
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$104.99
Features
Specifications
Downloads
Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, plug in, 6mA grd fault A, pigtail, consumer pack [TAA]
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
| Brand | Square D |
|---|---|
| UPC | 047569522314 |
| Store Location (Lititz, PA) | Aisle 08, Section D1 |
| Package Length (in) | 7.40" |
| Package Width (in) | 3.80" |
| Package Height (in) | 0.80" |
| Manufacturer Part Number | QO115GFICP |
| Line Rated Current | 15 A |
| Ue Rated Operational Voltage | 120 V AC |
| Persona Type Ids | EUA, SC |
| Persona Type Names | Consumer, Electrician |
| Awg Gauge | AWG 14...AWG 8 copper, AWG 12...AWG 8 aluminium |
| Tightening Torque | 4-4 N.m, 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4) |
| Carbon Footprint Of The Distribution Phase A4 | 0.0693053453, 0.1 kg CO2 eq. |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.1 kg CO2 eq., 0.0560736157 |
| Carbon Footprint Of The Installation Phase A5 | 0.0018911618, 0 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 2 kg CO2 eq., 2.1002431153 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 37 kg CO2 eq., 37.375 |
| Certificate Agency | UL Listed, CSA |
| Local Data Status | Publishable |
| Local Publishable Date | 2026-04-14 |
| Return Indicator | Y |
| Stocking Flag | N |
| Stock Policy | 2 |
| H And D Domain | Safety |
| H And D Subrange | RESI |
| H And D Enrichment Assignment | yes |
| H And D Enrichment Function | GFCI |
| H And D Enrichment Class 3 | Earth leakage protection devices |
| H And D Enrichment Class 4 | GFCI |
| Device Type | LV equipment - Low voltage circuit breaker |
| Serviceability | No |
| Traceability | No |
| Field Service Division | PPIBS |
| Average Life Duration | 15 year(s) |
| Use Carbon Footprint | 37.375 |
| Weee Scope | In |
| Weee Product Category | 5 |
| Scope Perimeter | Outside of Europe |
| Eoli Availability Display | Yes |
| End Of Life Doc Ref | ENVEOLI2212005 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur In Scope | Yes |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Conformity Date | 2532 |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Without Single Use Plastic | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier Id | 1 |
| Tier | 1 |
| Function Option Id | STANDARD |
| Function Option | Standard |
| Market Segmentation Id | RESIDENTIAL |
| Market Segmentation | Residential |
| Product Kit Identifier | N |
| Circuit Breaker Application | not rated |
| Circuit Breaker Type | ground fault protecting class A 6 mA |
| Electrical Connection | pressure plate |
| Energy Efficiency Optimized | False |
| Mounting Mode | plug-in |
| Number Of Spaces Required | 1 |
| Poles Description | 1P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | miniature circuit-breaker |
| Range Of Product | QO |
| Returnability | Yes |
| Software Version | EIME v5.9.4 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 40 kg CO2 eq. |
| Type Of Packing | consumer packaging |
| Warranty In Months | 18 |
| Pep Code | ENVPEP2212005EN |
| Database Version | 2022-01 |
| Pep Verification Date | 2023-08-01 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Type Of Verification For The Pep | Independent external review |
| Data Source | extrapolated product |
| Functional Unit Description | Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120 VAC and rated current 15A In. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1 Pole;& 10- Rated breaking capacity 10 kA; |
| Functional Unit Quantity | 1 |
| Functional Unit Unit | unit |
| Reference Lifetime In Y2 | 20 |
| Energy Model Manufacturing A1 A3 2 | Energy model used: Mexico |
| Energy Model Installation A5 2 | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Energy Model Use B6 2 | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Energy Model End Of Life C1 C4 2 | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Offer Owner Code | 190788 |
| Pn | 1 |
| Height Nominal | 105 mm |
| Width Nominal | 19 mm |
| Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 2 | 455.05 |
| Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 2 | 5.7146 |
| Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 | 472.94 |
| Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 2 | 503.15 |
| Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 | 30.218 |
| Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 | 472.94 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 | 30.218 |
| Air Pollution M3 Operational Energy Use B6 2 | 3173.9 |
| Water Pollution M3 Operational Energy Use B6 2 | 1842.6 |
| Global Warming Kg Equivalent Co2 Operational Energy Use B6 2 | 37.375 |
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Carbon Footprint | 39.6025132381 |
| Ambient Air Temperature For Operation | 40 °C |
| Circularity Profile | ENVEOLI2212005 |
| Environmental Disclosure | ENVPEP2212005EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Country of Origin | Mexico |
| Compliance | TAA Compliant |
| Depth | 74 mm |
