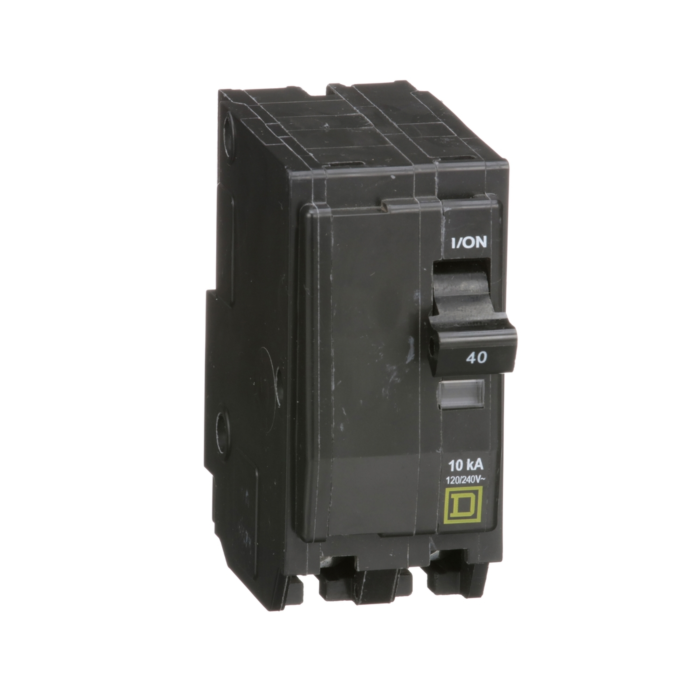

Mini circuit breaker, QO, 40A, 2 pole, 120/240VAC, 10kA, plug in, consumer pack
SKU: EQO240 | Location: Aisle 08, Section D1
$37.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
7 In stock
Features
Specifications
Downloads
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 40A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. This product is a consumer pack.
- QO 40 A two-pole circuit breaker
| Brand | Square D |
|---|---|
| UPC | 047569838040 |
| Store Location (Lititz, PA) | Aisle 08, Section D1 |
| Package Length (in) | 2.40" |
| Package Width (in) | 2.00" |
| Package Height (in) | 1.60" |
| Manufacturer Part Number | QO240CP |
| Width | 38 mm |
| Height | 79 mm |
| Weight | 0.249 kg |
| Circuit Breaker Type | standard |
| Range Of Product | QO |
| Product Or Component Type | miniature circuit-breaker |
| Type Of Packing | consumer packaging |
| Circuit Breaker Application | HACR rated |
| Mounting Mode | plug-in |
| Poles Description | 2P |
| Electrical Connection | box lugs |
| Line Rated Current | 40 A |
| [Ue] Rated Operational Voltage | 120/240 V AC || 120 V AC |
| Tightening Torque | 5-5 N.m |
| Number Of Spaces Required | 2 |
| Net Weight | 0.249 kg |
| Breaking Capacity | 10 kA 120/240 V AC || 10 kA 120 V AC |
| Awg Gauge | AWG 8...AWG 2 copper or aluminium |
| Depth | 74 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free product |
| Product Certifications | UL Listed || CSA |
| Ambient Air Temperature For Operation | 40 °C |
