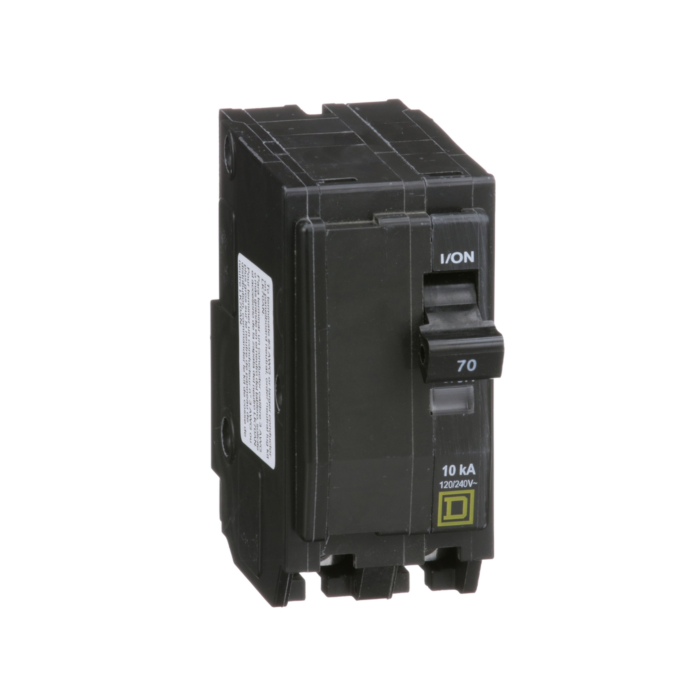

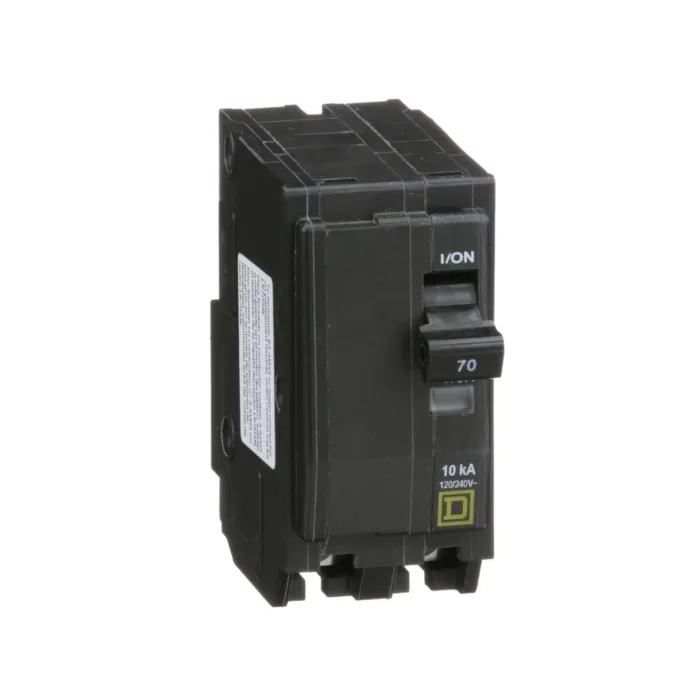

- Contains a thermal-magnetic tripping mechanism and has a two-pole common trip
Brand | Square D |
---|---|
UPC | 047569008955 |
Store Location (Lititz, PA) | Aisle 08, Section D1 |
Package Length (in) | 3.20" |
Package Width (in) | 1.80" |
Package Height (in) | 1.20" |
Manufacturer Part Number | QO270CP |
Width | 38 mm |
Height | 79 mm |
Weight | 0.263 kg |
Circuit Breaker Type | standard |
Range Of Product | QO |
Product Or Component Type | miniature circuit-breaker |
Type Of Packing | consumer packaging |
Circuit Breaker Application | HACR rated |
Mounting Mode | plug-in |
Poles Description | 2P |
Electrical Connection | box lugs |
Line Rated Current | 70 A |
[Ue] Rated Operational Voltage | 120/240 V AC || 120 V AC |
Tightening Torque | 5-5 N.m |
Number Of Spaces Required | 2 |
Net Weight | 0.263 kg |
Breaking Capacity | 10 kA 120/240 V AC || 10 kA 120 V AC |
Awg Gauge | AWG 8...AWG 2 copper or aluminium |
Depth | 74 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | N/A |
Eu Rohs Directive | Compliant with Exemptions |
Halogen Content Performance | Halogen free product |
Product Certifications | UL Listed || CSA |
Ambient Air Temperature For Operation | 40 °C |
