DAYTON

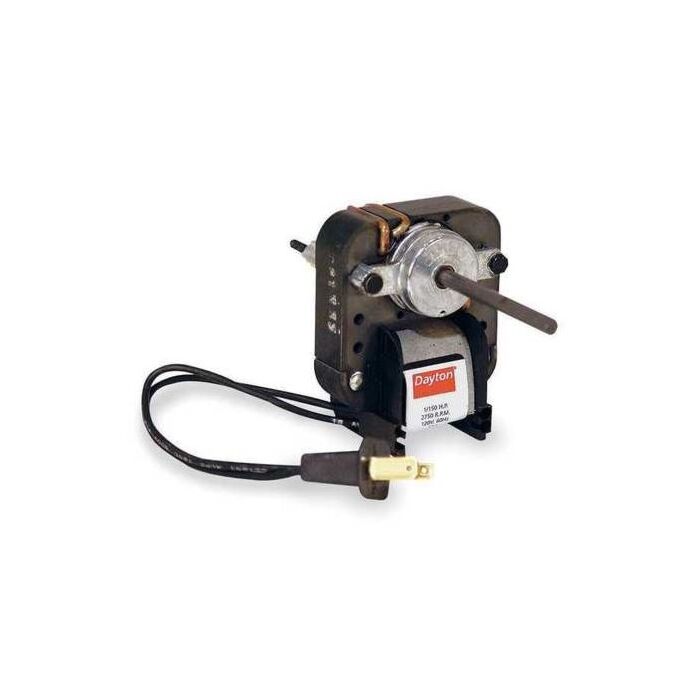

120 V 0.61 A 1/150 hp Motor
SKU: 4M211
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$39.99
Features
Specifications
This 1/150 HP C-frame shaded pole motor operates on a 120V AC, 60 Hz single-phase power supply, drawing a full load current of 0.61 A. It delivers a single-speed output of 2,850 rpm through a single shaft. It features a non-standard frame, an open air-over enclosure, stud mounting for all-angle positioning, clockwise shaft end (CWSE) rotation, a Class B insulation rating, and a service factor of 1. It operates safely up to a maximum ambient temperature of 40°C and includes impedance thermal protection with a one-shot backup, though it is not compatible with 200V or 208V systems.
| Brand | DAYTON |
|---|---|
| UPC | 786674042538 |
| Store Location (Lititz, PA) | Aisle 04, Section D2 |
| Package Length (in) | 4.80" |
| Package Width (in) | 2.80" |
| Package Height (in) | 1.60" |
| Voltage Rating | 120 V |
| Current Rating | 0.61 A |
| HP Rating | 1/150 hp |
| Speed | 2850 rpm |
| Frequency Rating | 60 Hz |
| Phase | 1 ph |
| Motor Enclosure Type | Open Air-Over |
| Frame Size | Non-Standard |
| Shaft Size | 3/16" x 15/16" |
| Rotation Type | CWSE |
| Number of Speeds | 1 |
| Mounting Type | Stud |
| Application | For direct drive fan/blower |
