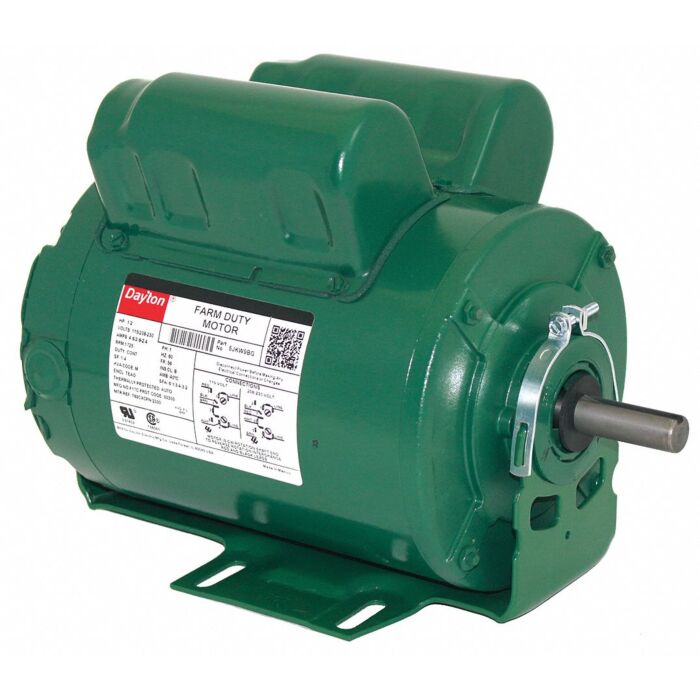

Poultry/livestock belt drive farm-duty AC motors allow the user to change the motor and driver sheaves to adjust the air flow in poultry and livestock barns. Motors have enclosures that help protect them from moisture, but they are not airtight or waterproof.
Store Location (Lititz, PA) | Aisle 04, Section A2 |
---|---|
Package Length (in) | 8.40" |
Package Width (in) | 6.40" |
Package Height (in) | 8.20" |
Type | Farm Duty |
HP Rating | 1/2 hp |
Voltage Rating | 115/208-230 VAC |
Current Rating | 4.6/2.6-2.4 A |
Frequency Rating | 60 Hz |
Phase | 1 ph |
Speed | 1725 rpm |
Number of Speeds | 1 |
Frame | 56 |
Shaft Size | 5/8 x 1-7/8 in |
Service Factor | 1.4 |
Bearing Type | Ball |
Mounting Type | Cradle Base |
Temperature Rating | 40 deg C |
Insulation Class | Class B |
Housing Material | Rolled Steel |
Application | Agriculture |
