DAYTON

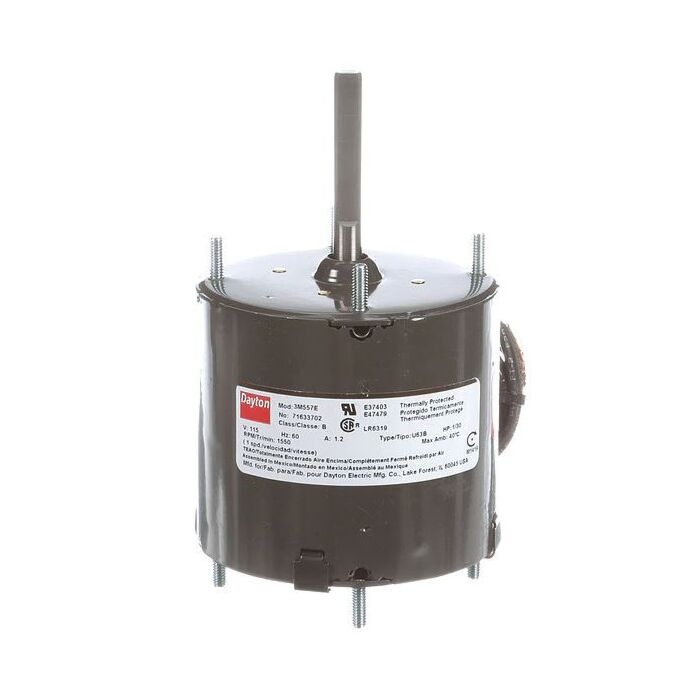

115 V 1.2 A 1/30 hp Motor
SKU: 3M557
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$99.99
Features
Specifications
This single-phase, 1/30 HP shaded pole HVAC motor operates at a single speed of 1,550 rpm on 115V AC (1.20 Amps, 60 Hz). Built on a compact 3.3 frame for continuous duty, it features a totally enclosed air-over (TEAO) design, automatic thermal protection, and Class B insulation. It supports versatile installation with an all-angle stud mount and clockwise shaft end (CWSE) rotation.
| Brand | DAYTON |
|---|---|
| Store Location (Lititz, PA) | Aisle 04, Section D2 |
| Package Length (in) | 2.60" |
| Package Width (in) | 2.60" |
| Package Height (in) | 3.40" |
| Voltage Rating | 115 V |
| Current Rating | 1.2 A |
| HP Rating | 1/30 hp |
| Speed | 1550 rpm |
| Frequency Rating | 60 Hz |
| Phase | 1 ph |
| Motor Enclosure Type | Totally Enclosed Air-Over |
| Frame Size | 3.3 |
| Shaft Size | 5/16" x 2-1/4" |
| Rotation Type | CWSE |
| Number of Speeds | 1 |
| Duty Cycle | Continuous |
| Mounting Type | Stud |
| Temperature Rating | 40 deg C |
