PEMS

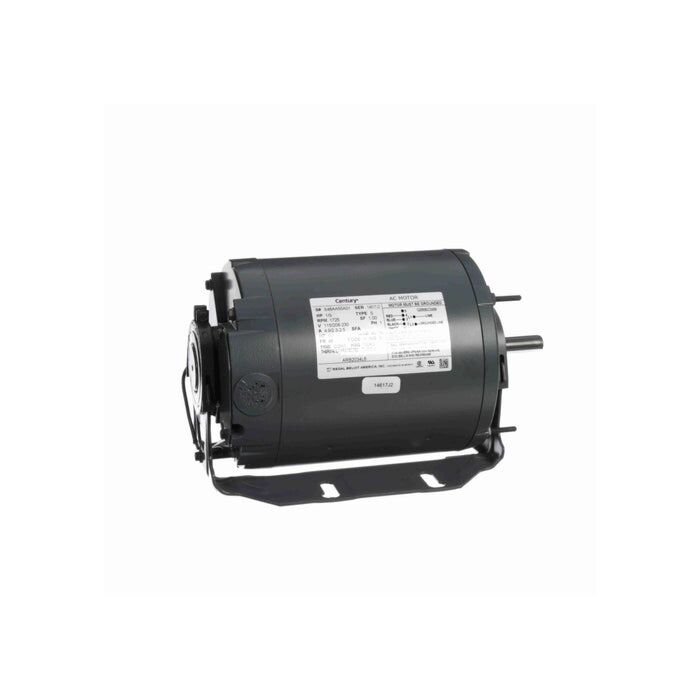

Motor 1/3hp 1725rpm 115/230V
SKU: 4HCH6
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$399.99
Features
Specifications
Motor, 115/208-230 V, 4.9/2.3-2.5 A, 1/3 hp, 1725 rpm, 60 Hz, 1 Phase, CW/CCW, 1 Speed, Ball Bearing, Cradle/Stud Mount, 40 deg C, 5-5/8 in
- UL recognized component listing and CSA certification ensures the product is safe for use
- Double-shielded bearings extend the service life of the motor
- Automatic reset thermal protector (as noted) protects against overload
- Moderate starting torque helps reduce fan stresses
| Brand | PEMS |
|---|---|
| Store Location (Lititz, PA) | Aisle 04, Section A1 |
| Package Length (in) | 8.00" |
| Package Width (in) | 5.40" |
| Package Height (in) | 5.60" |
| Manufacturer Part Number | ARB2034L6 |
| Voltage Rating | 115/208-230 V |
| Current Rating | 4.9/2.3-2.5 A |
| HP Rating | 1/3 hp |
| Speed | 1725 rpm |
| Frequency Rating | 60 Hz |
| Phase | 1 ph |
| Rotation Type | CW/CCW |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Mounting Type | Cradle/Stud |
| Temperature Rating | 40 deg C |
| Dimensions | 5-5/8 in |
| Shaft Size | 1/2" |
