DAYTON

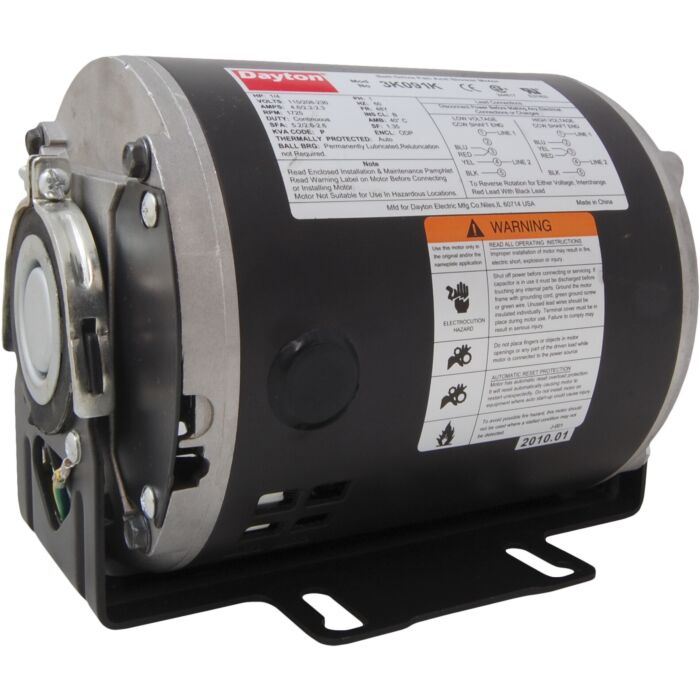

115/208-230 V 4.7/2.3-2.2 A 1/4 hp Motor
SKU: 3K091
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$199.99
Features
Specifications
Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/4 hp, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, 4.7/2.3-2.2 Full Load Amps, 48 Frame, 60 Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip proof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Shaft Dia. 1/2 in.
| Brand | DAYTON |
|---|---|
| Store Location (Lititz, PA) | Aisle 04, Section A1 |
| Package Length (in) | 5.60" |
| Package Width (in) | 5.20" |
| Package Height (in) | 5.60" |
| Voltage Rating | 115/208-230 V |
| Current Rating | 4.7/2.3-2.2 A |
| HP Rating | 1/4 hp |
| Speed | 1701-1800 rpm |
| Frequency Rating | 60 Hz |
| Phase | 1 ph |
| Motor Enclosure Type | Open Dripproof |
| Frame Size | 48 |
| Shaft Size | 1/2 x 1-1/2 in |
| Rotation Type | CW/CCW |
| Number of Speeds | 1 |
| Duty Cycle | Continuous |
| Mounting Type | Cradle Base |
| Material | Roller Steel |
| Temperature Rating | 40 deg C |
