WEG

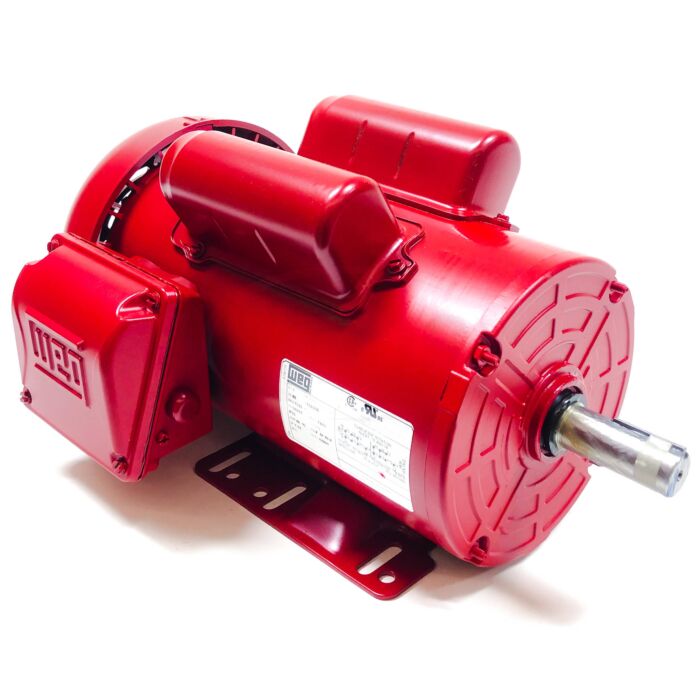

115/230 V 1.5 hp 1725 rpm Motor
SKU: W15145T18
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$424.99
Features
Specifications
1.5 hp, 115/230V, 60Hz TEFC motor with a 145T frame, IP55 rating, and 7/8" shaft. It is foot-mounted and made of rolled steel.
| Brand | WEG |
|---|---|
| Store Location (Lititz, PA) | Aisle 04, Section A1 |
| Package Length (in) | 15.25" |
| Package Width (in) | 10.40" |
| Package Height (in) | 8.30" |
| Voltage Rating | 115/230 V |
| HP Rating | 1.5 hp |
| Speed | 1745 rpm |
| Frequency Rating | 60 Hz |
| Motor Enclosure Type | TEFC |
| Frame | 143/5T |
| Number of Poles | 4 |
| Locked Rotor Torque | 250% |
| Breakdown Torque | 270% |
| Locked Rotor Time | 14s (cold) 8s (hot) |
| Insulation Class | F |
| Temperature Rise | 80 K |
| Mounting | F-1 |
| Noise Level | 54.0 dB(A) |
| Approx. Weight | 46.7 lb |
