DAYTON

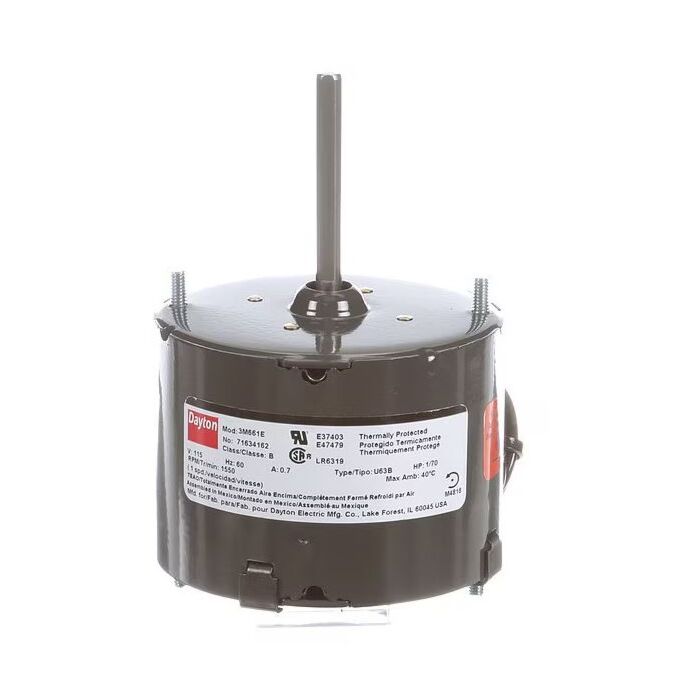

115 V 0.7 A 1/70 hp Motor
SKU: 3M661
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$67.99
Features
Specifications
This 1/70 HP, single-phase shaded pole HVAC motor operates at 1,550 RPM (1 speed) on 115V AC (0.70 Amps, 60 Hz). Built on a 3.3 frame for continuous duty, it features a totally enclosed air-over (TEAO) design, auto thermal protection, Class B insulation, and counter-clockwise shaft end (CCWSE) rotation. It supports flexible installation with an all-angle stud mount.
| Brand | DAYTON |
|---|---|
| Store Location (Lititz, PA) | Aisle 04, Section D2 |
| Package Length (in) | 2.80" |
| Package Width (in) | 2.40" |
| Package Height (in) | 2.80" |
| Voltage Rating | 115 V |
| Current Rating | 0.7 A |
| HP Rating | 1/70 hp |
| Speed | 1550 rpm |
| Frequency Rating | 60 Hz |
| Phase | 1 ph |
| Motor Enclosure Type | Totally Enclosed Air-Over |
| Frame Size | 3.3 |
| Shaft Size | 1/4" x 2-1/4" |
| Rotation Type | CCWSE |
| Number of Speeds | 1 |
| Duty Cycle | Continuous |
| Mounting Type | Stud |
| Material | Roller Steel |
| Temperature Rating | 40 deg C |
